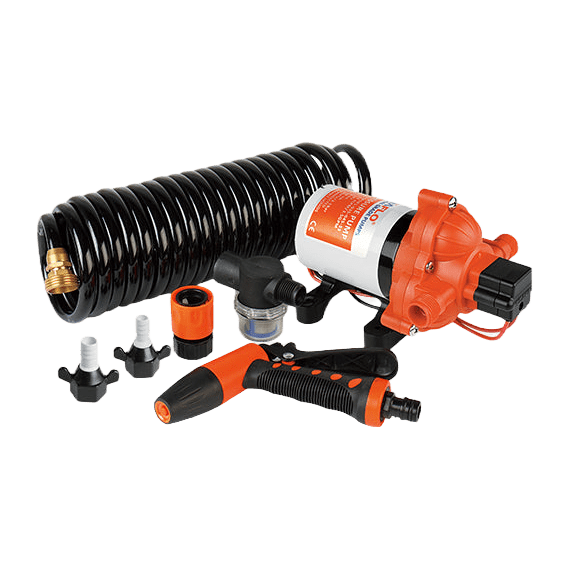

SEAFLO Washdown 33 Series Washdown Pump Kit 12v 3.0gpm 70psi
SEAFLO Washdown 33 Series Washdown Pump Kit 12v 3.0gpm 70psi
Location: VS2
SKU:BR-WP103007033
Couldn't load pickup availability
Voltage：12V/24V
Open Flow：3.0GPM / 11.3LPM
Pressure Off：70PSI / 4.8BAR
Inlet/outlet size：1/2"-14 MNPT
Material：EPDM(Valves) / Santoprene(Diaphragm)
Our general washdown kit. An awesome choice for cleaning boats, fish boxes, anchor wells, dinghies, and other similar applications. This pump boasts a large 3.0 GPM capacity. This pump has an on-demand switch, so the pump automatically turns on when you squeeze the spray gun handle. Suitable for fresh and saltwater applications.
MORE FEATURES & BENEFITS
• Positive displacement pump
• Can run dry
• Quiet operation
• Demand pump
• Easy connect fittings
• Ignition protected
• Industry standard mount pattern
STANDARD PUMP CONFIGURATIONS
| Model | Voltage | Open Flow （GPM/LPM） |
Max Draw |
Shut-off Pressure （PSI/BAR) |
| SFWP1-030-070-33 | 12V | 3.0 / 11.3 | 18.0A | 70 / 4.8 |
| SFWP2-030-070-33 | 24V | 3.0 / 11.3 | 9.0A | 70 / 4.8 |
3.0 GPM
| PRESSURE | FLOW | CURRENT | ||
| PSI | BAR | GPM | LPM |
AMPS |
| 0 | 0 | 2.78 | 10.54 | 4.24 |
| 10 | 0.69 | 2.41 | 9.12 | 5.01 |
| 20 | 1.38 | 2.06 | 7.80 | 5.95 |
| 30 | 2.07 | 1.69 | 6.40 | 6.43 |
| 40 | 2.72 | 1.37 | 5.20 | 6.69 |
| 45 | 3.11 | 0 | 0 | 6.74 |
| Key | Description | Quantity |
| A | Pump Head Assembly | 1 |
| B | Valve Assembly | 1 |
| C | Diaphragm Assembly | 1 |
| D | Motor Assembly | 1 |
| 1 | Pressure switch | 1 |
| 2 | Diaphragm of Pressure Switch | 1 |
| 3 | Pump Head | 1 |
| 4 | Diaphragm | 1 |
| 5 | Rubber Feet | 1 |
| 6 | Motor | 1 |
