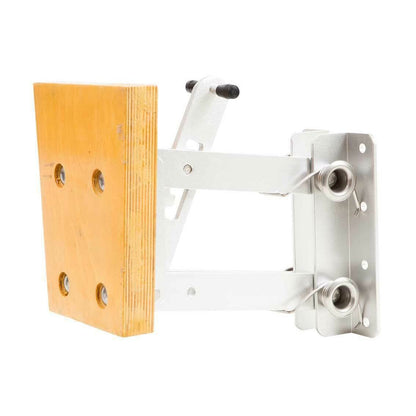

• Outboard Motor Auxillary Bracket Up To 25kg
1 4

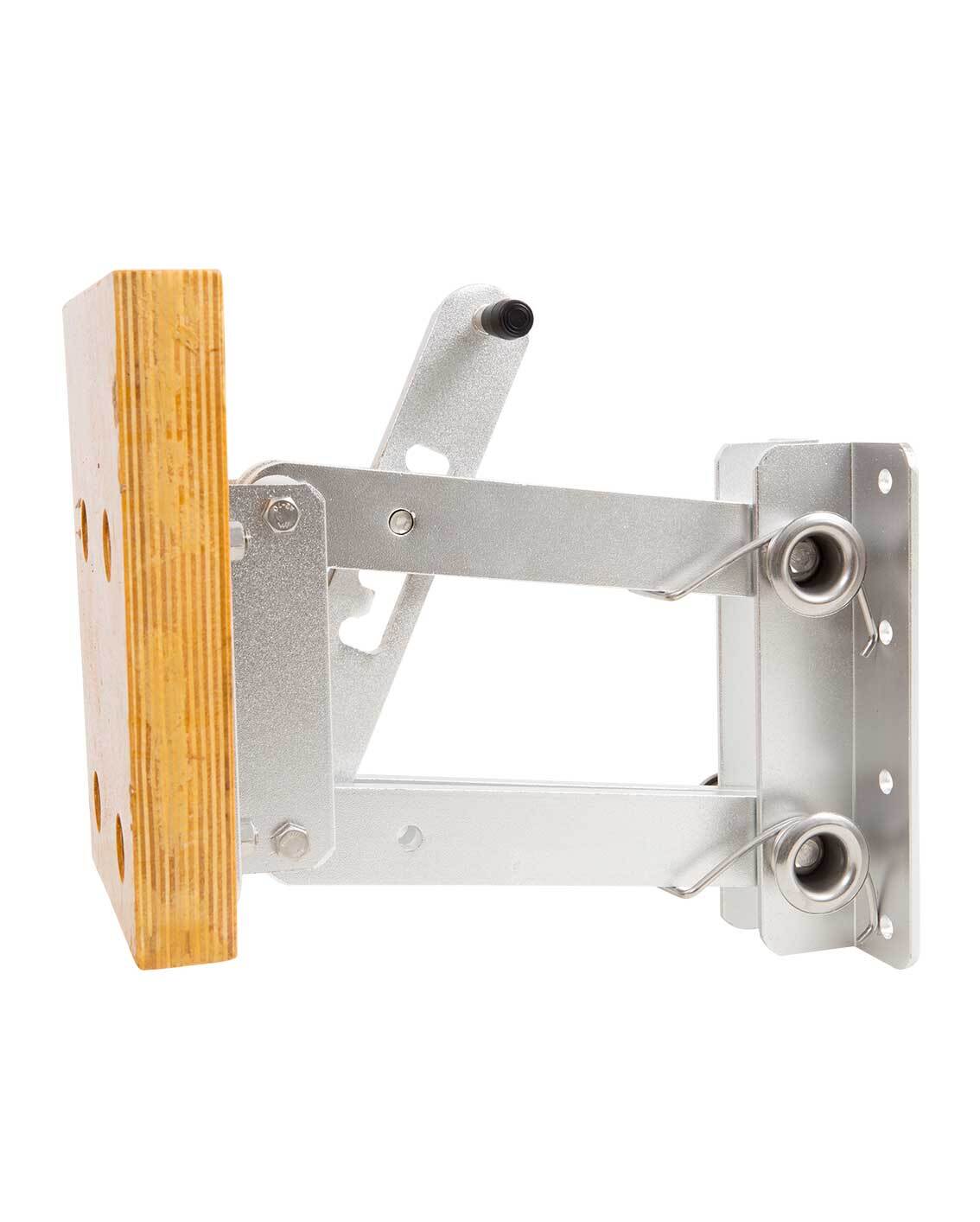

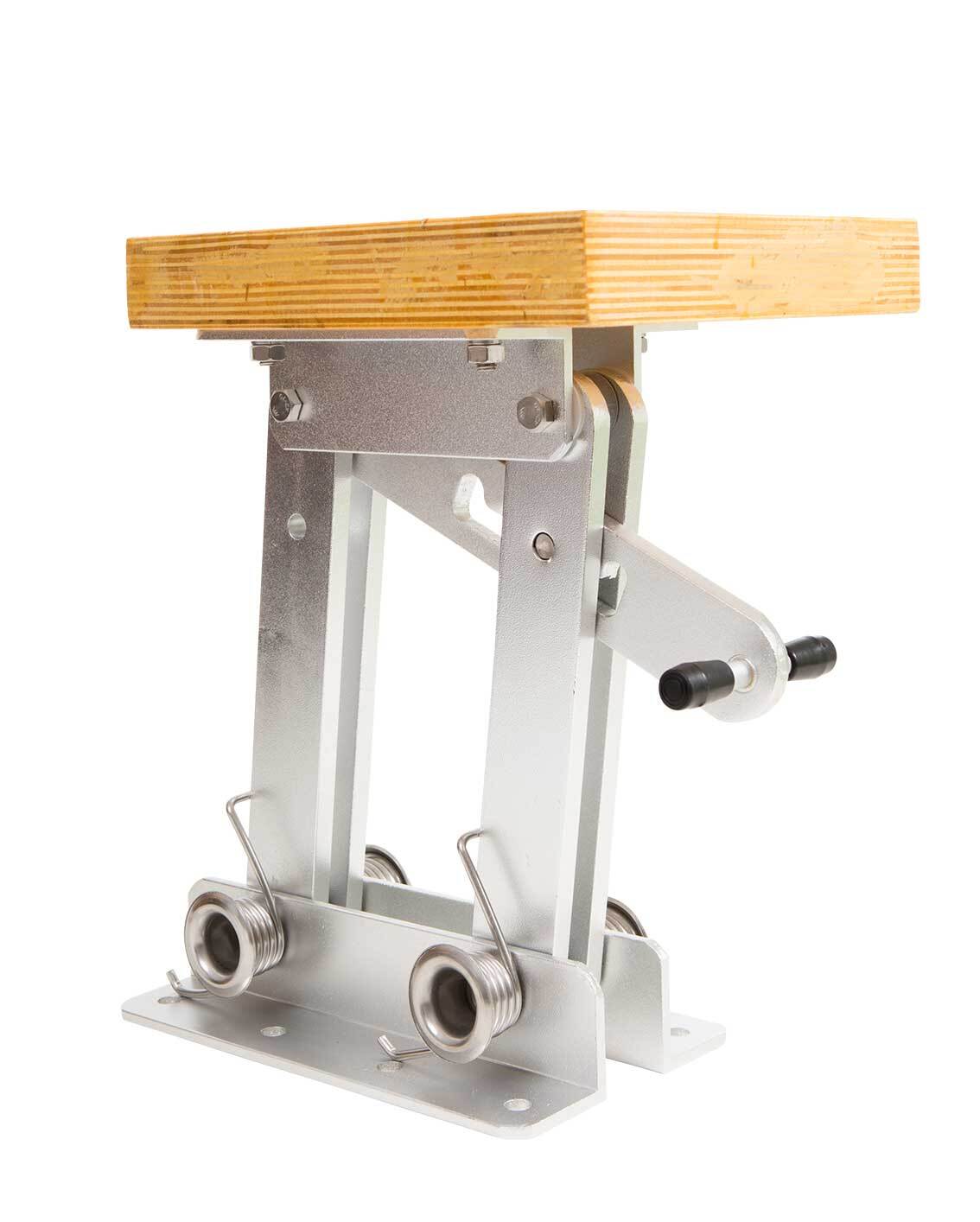

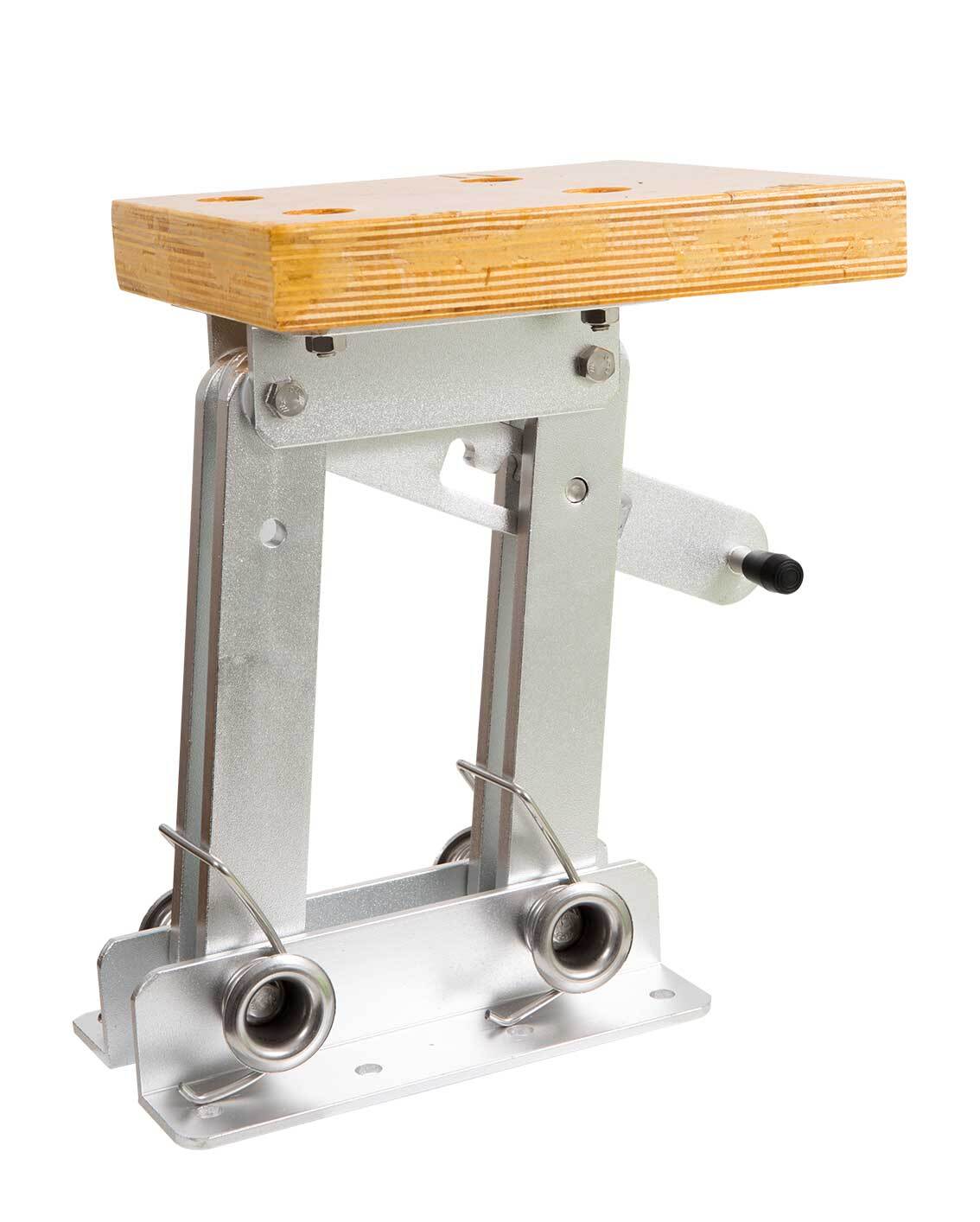

Seago Anodised Aluminium Outboard Motor Auxiliary Bracket

Seago Anodised Aluminium Outboard Motor Auxiliary Bracket

SKU: SG-OB-ALU

The Seago Aluminium Outboard Motor Auxiliary Bracket is a sprung loaded boat bracket designed to support a small outboard engine and make lifting easier once installed. The spring-assisted mechanism helps carry the weight of the motor, making it suitable for auxiliary outboards up to 25kg.

£84.98
£84.98
Sale Sold out
Tax included. Shipping calculated at checkout.

Delivery available  |  lead times vary

Collection available  |  usually ready in 2-4 days   |  Location: VS4

Description

The Seago Aluminium Outboard Motor Auxiliary Bracket is a sprung loaded boat bracket designed to support a small outboard engine and make lifting easier once installed. The spring-assisted mechanism helps carry the weight of the motor, making it suitable for auxiliary outboards up to 25kg.

This anodised aluminium outboard motor bracket features a 240mm x 180mm marine ply wooded motor pad, a bottom bracket section measuring 230mm x 135mm, and 8 bolt-in M8 mounting holes. Mounting bolts are not included, so suitable M8 fixings should be selected for the boat structure and installation surface.

Key Features

  • Anodised aluminium bracket
  • Marine ply wood pad
  • Sprung loaded design helps support the engine weight when lifting
  • Suitable for outboard motors up to 25kg
  • 240mm x 180mm motor mounting pad
  • 8 bolt-in M8 mounting holes
  • Bottom bracket size: 230mm length x 135mm width
  • Designed for boat-mounted auxiliary outboard engine installation
  • Bolts are not included

Installation and Safety Guidance

The bracket must be securely fixed to the boat before attempting to move, adjust or operate the sprung mechanism. Do not try to change the bracket position until it has been fully installed and securely fastened.

Keep fingers and hands away from the moving parts during installation and use to reduce the risk of injury. Use suitable M8 bolts and fixings for the boat structure, engine weight and marine environment.

Common Questions

What is the Seago Aluminium Outboard Motor Auxiliary Bracket used for?

It is used to mount and support a small auxiliary outboard motor on a boat. The sprung loaded design helps make lifting the motor easier after installation.

What is the maximum engine weight?

The maximum supported engine weight is 25kg.

Are mounting bolts included?

No. The bracket has 8 bolt-in M8 mounting holes, but bolts are not included.

Can the bracket be moved before it is fitted?

No. Do not move or adjust the bracket until it has been securely fixed to the boat.

Technical Specifications

Specification Value
Brand Seago
Product Name Seago Aluminium Outboard Motor Auxiliary Bracket
Product Type Sprung loaded auxiliary outboard motor bracket
Material Aluminium bracket, marine ply wood
Application Boat-mounted auxiliary outboard motor support and lifting bracket
Maximum Motor Weight 25kg
Maximum Engine Weight 25kg
Pad Dimensions 240mm x 180mm
Mounting Holes 8 bolt-in M8 holes
Hole Size 8mm
Bolts Included No
Bottom Bracket Length 230mm
Bottom Bracket Width 135mm
Safety Warning Do not move the bracket until securely fixed to the boat; keep fingers away from moving parts

Specification

Specification Value
Brand Seago
Product Name Seago Aluminium Outboard Motor Auxiliary Bracket
Product Type Sprung loaded auxiliary outboard motor bracket
Material Aluminium
Application Boat-mounted auxiliary outboard motor support and lifting bracket
Maximum Motor Weight 25kg
Maximum Engine Weight 25kg
Pad Dimensions 240mm x 180mm
Mounting Holes 8 bolt-in M8 holes
Hole Size 8mm
Bolts Included No
Bottom Bracket Length 230mm
Bottom Bracket Width 135mm
Safety Warning Do not move the bracket until securely fixed to the boat; keep fingers away from moving parts
