Nuova Rade Shower Sump Pump System LSU 600 - 12V

Shower Sump Pump System LSU 600 - 12V.                                              Ref18: LA-31349

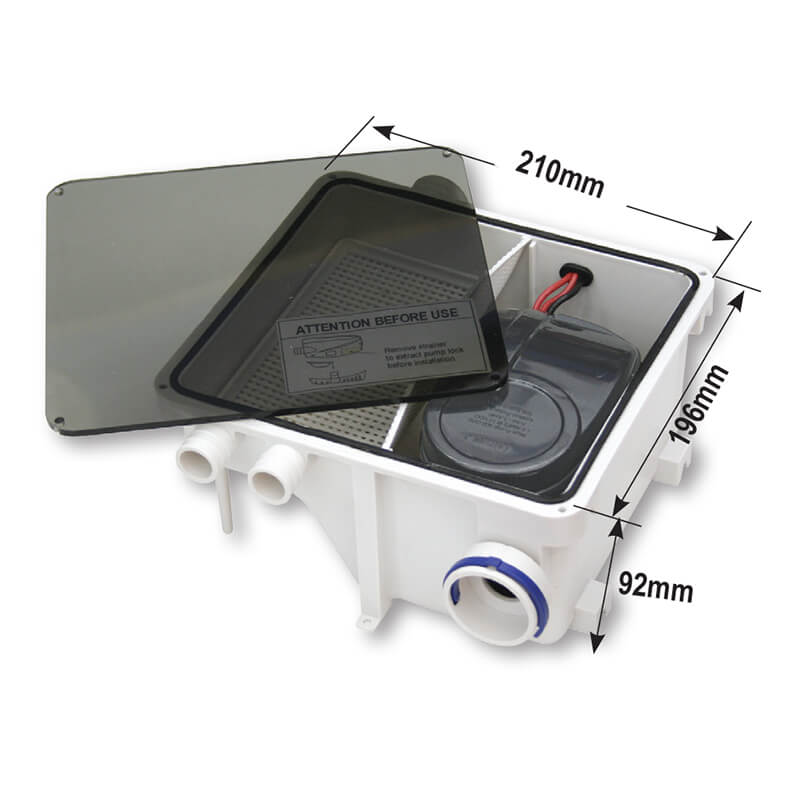

Designed especially for use on boats with built-in sink, shower or tub, the LSU 600 will pump all water out of the drain and into the tank. It is compact and can be mounted either against the floor or against the walls, in which case the two legs can be cut off.

It has a built-in automatic bilge pump that will start operating as soon as the float switch senses water. Additionally, it features a filter, which can be easily serviced by removing the top transparent cover and a non-return valve at the outlet hose.

The LSU 600 case is made of resistant plastic and the lid from acrylic. Its power consumption is limited to 1,8A at 12V. The LSU 600 System has 3 inlet hoses (2 of 19,1mm (3/4”) and 1 of 25,4mm (1”)) and 1 outlet hose with non-return valve for hose of 19,1 (3/4”) and 25,4mm (1”) in diameter.

Instructions Manual
