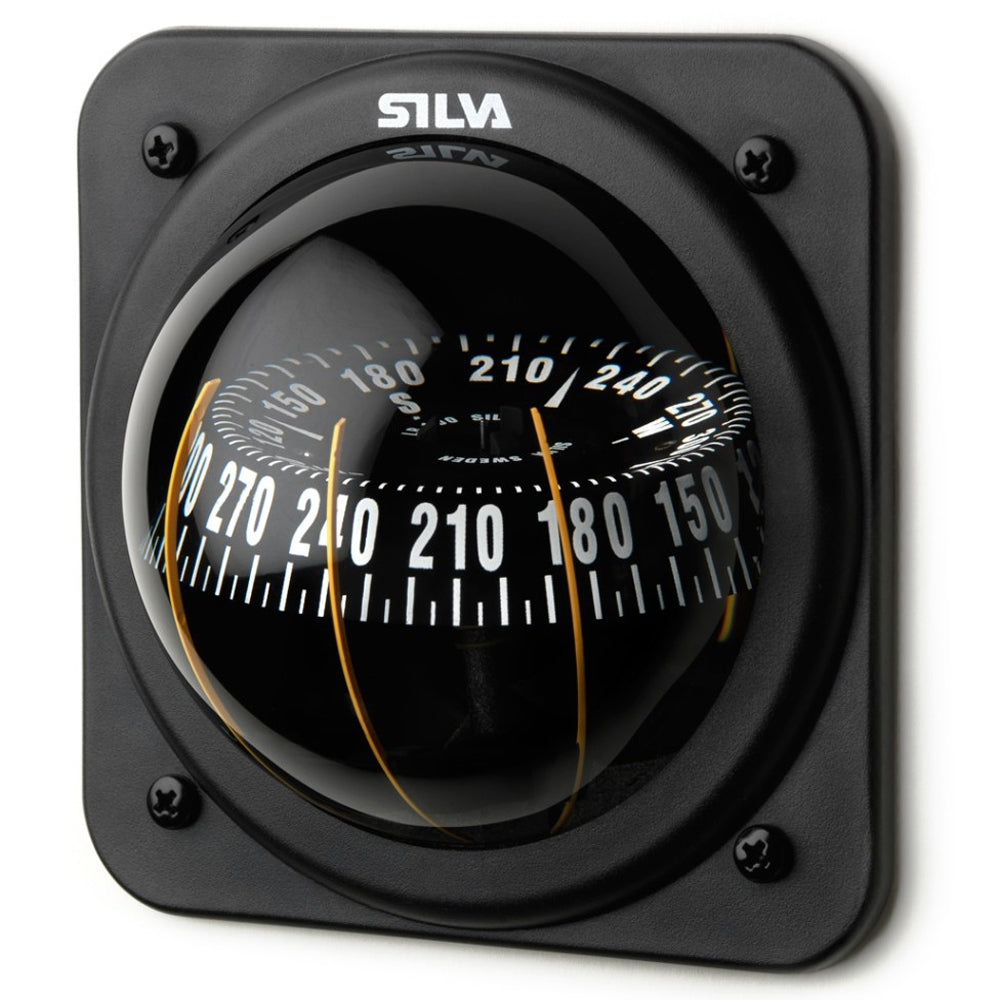

Silva 100P Bulkhead Mount Compass Front Reading

Silva 100P Bulkhead Mount Compass Front Reading

Location:

SKU:TMS-37186-0101

Regular price £123.95
Regular price Sale price £123.95
Sale Sold out
Tax included. Shipping calculated at checkout.

The bulkhead mounted Silva 100P compass is specifically designed for sailboats and yachtsmen demanding absolute accuracy and a steady card in all conditions and high heeling angles.
Features:
• Three lubber lines for multi-angle reading
• Conical card with main steering scale on the horizontal & direct reading scale on the vertical edge
• Ideal for boats with a sitting as well as a standing helm position
• Permanent flush mounting – vertical or at a sloping angle
• Also suitable for mast-mounting
• Suitable for all kinds of boats
Specification:
• Accuracy: ± 0.5°
• Apparent Card Diameter: 105mm
• Lubber Lines: Centre & 2 side view lines at 45°
• Card Type: Cone
• Card Graduation: Edge – every 5°, Top – every 5°
• Heeling Angles: Roll 30°, Pitch 30°
• Size: H128 x W128 x D103mm, Cutout 115mm
• Mounting Angle: +10° to +110°
• Temperature Operating Range: -10°C to +70°C
