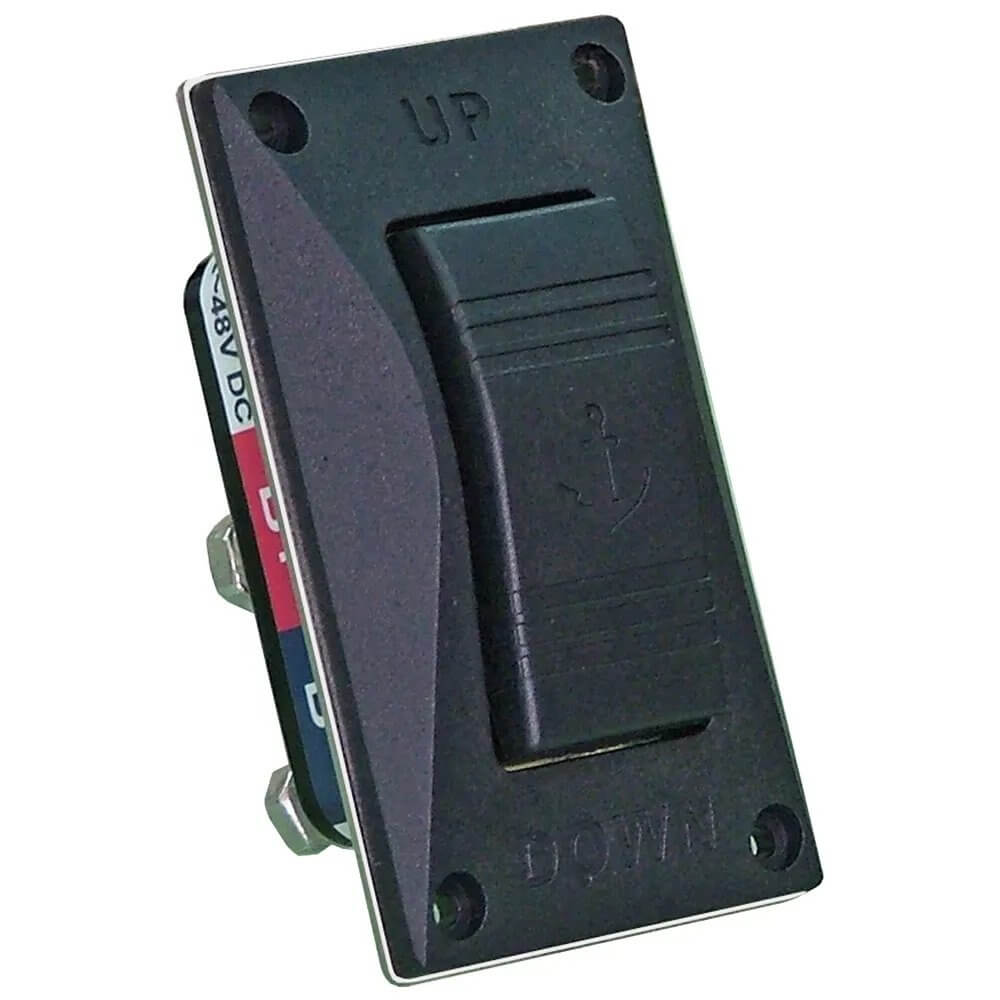

South Pacific SW-200 Windlass Direct Control Switch

South Pacific SW-200 Windlass Direct Control Switch

MZ-62068

£46.95
£46.95
Sale Sold out
Tax included. Shipping calculated at checkout.

Delivery available  |  lead times vary

Collection available  |  usually ready in 2-4 days

This switch is used in lower power units where the switch is wired into the windlass circuit (with a circuit breaker) without a solenoid switch.

  • Load Capacity : 200A / 500A(10S)
  • Suit Voltage : 12V ~ 48V DC
  • Life : 100,000 times
  • Contact Material : AgCdO
  • Contact Resistance : Max. 20mΩ initial
  • Insulation Resistance : Min.100mΩ at 500V DC
  • Terminal Size : 6 mm
  • Dimension : 85 x 50 x 45 mm
  • Weight :150g
