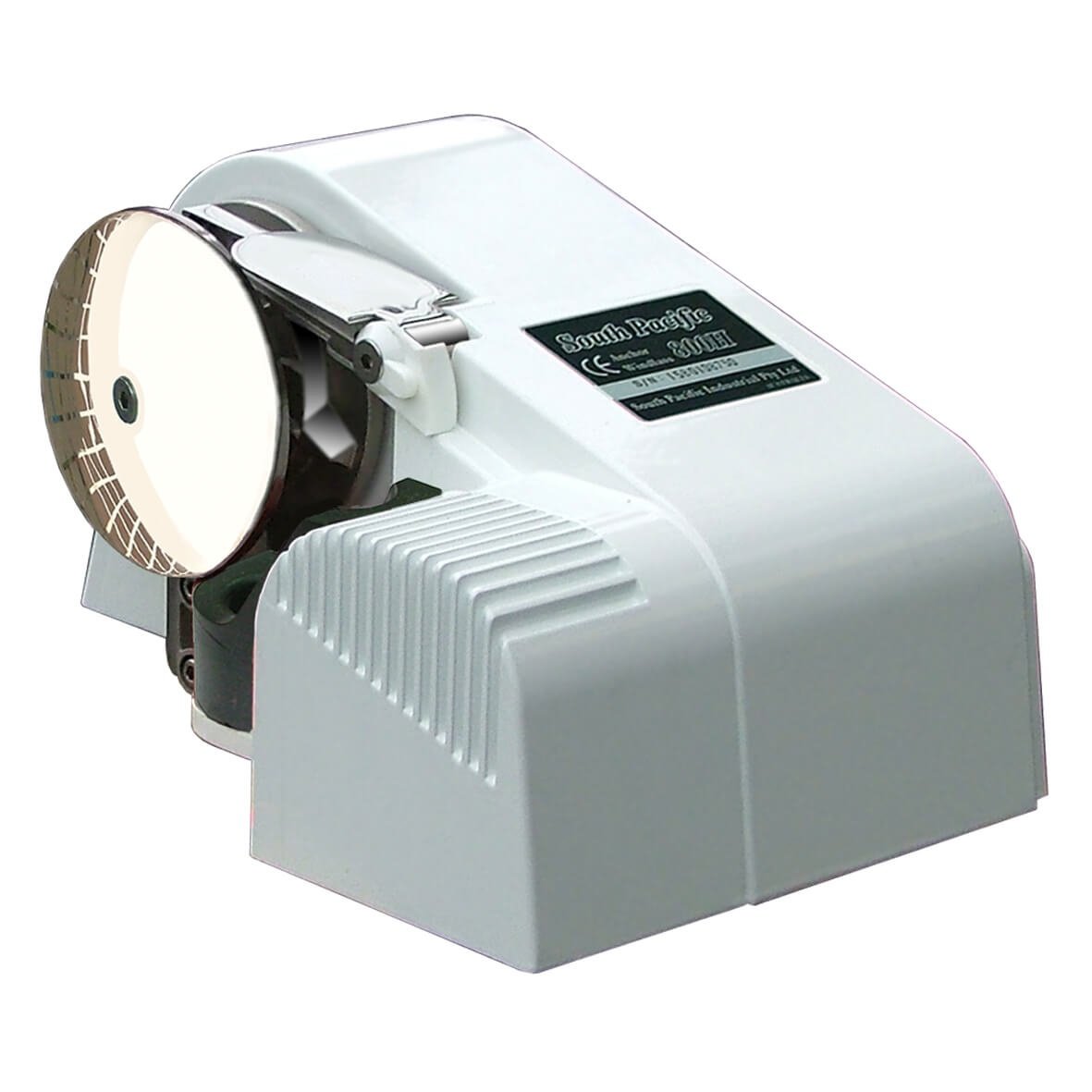

South Pacific PRO 800H Gypsy Horizontal Windlass Kit - 6mm / 12v

South Pacific PRO 800H Gypsy Horizontal Windlass Kit - 6mm / 12v.                     Ref: MZ-62009

The South Pacific 800H is designed for boats from 20ft to 30ft or to handle an anchor up to 13.6kg. It is available with a 6mm or 8mm stainless steel gypsy. It has been developed using efficient spur gears rather than traditional worm gears which can reduce power consumption by up to 40%. The Stainless Steel Gypsy takes both rope and chain and a heat radiating system minimises motor overheating.

Key Features:

• Efficient spur gears, low current draw, high output power
• Efficient heavy duty DC motor produces less heat
• Stainless steel Gypsy takes both rope and chain
• A torque limiter absorbs sudden impacts, delivers smoother operation and greater reliability
• Compact one-piece housing ensures water resistance
• Aluminium alloy case with powder coated finish
• Installation is simple with the whole one-piece unit fitting on the deck.

This kit includes:

• Windlass 800H
• Direct Control Switch SW-200 (no solenoid required)
• Circuit Breaker CB-001-30
• Fixing Bolts
• User Manual
• Mounting Template

Specifications:

• Power : 800W
• Operating Voltage : 12V DC
• Max. Working Load : 300 kg)
• Typical Working Load : 60 kg
• Retrieval Speed : 19 m/min)
• Pay-Out Speed : 22 m/min
• Current Draw (Typical) : 24 amp
• Gear: Spur Gear Dimensions (LxWxH) : 304 mm x 197mm x 153mm”
• Weight:7.8 kg
• Suit Chain Size : 6
• Suit Rope Size : 12 - 14mm
• Suit Deck Thickness : 3mm~60mm

For detailed dimensions, see second picture.
