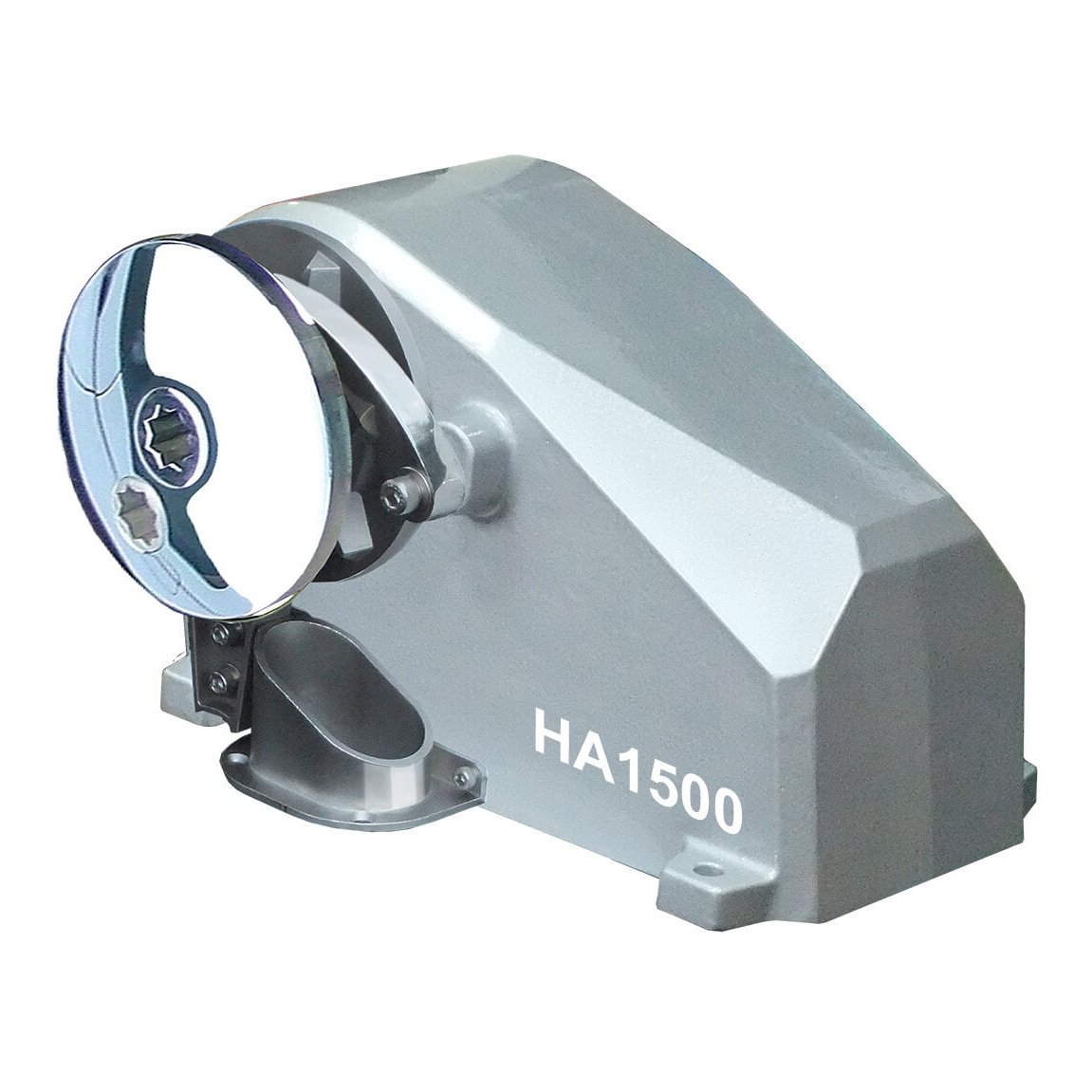

South Pacific PRO HA1500 Gypsy Horizontal Windlass Kit - 8mm / 12v

South Pacific PRO HA1500 Gypsy Horizontal Windlass Kit - 8mm / 12v.                     Ref: MZ-62015

South Pacific HA1500 series is designed for boats from 40ft to 60ft or to handle an anchor up to 27kg. This larger windlass uses an improved self-locking worm gearbox providing high stress capacity and reduced power consumption. Marine grade aluminium alloy case and the newest surface coating treatment technology maintains the windlass' corrosion resistance.

The HA1500 series use improved self-locking worm gear box provide high stress capacity and reduce power consumption. By using marine grade aluminum alloy and the newest surface treatment technology to ensure the gear box and the motor corrosion resistance.

This kit comes with:

• Windlass Pro HA1500
• Switch for Solenoid SW-025
• 200A solenoid K-200
• Circuit Breaker CB-001-30
• Fixing Bolts
• User Manual
• Mounting Template

Features:

• Stainless steel gypsy takes both rope and chain
• DC motor minimises heat
• Switch select free fall or power out mode
• Stainless steel drive shaft and parts
• A torque limiter absorbs sudden impacts, delivers smoother operation and greater reliability
• Compact one-piece housing ensures water resistance
• Aluminium alloy case with powder coated finish
• Installation is simple with the whole one-piece unit fitting on deck.

Specifications

• Suit boat size: 12~18M(40~60ft)
• Opearating voltage: 12V DC
• Max. working load: 680kg(1500lb)
• Typical working load: 120kg(265lb)
• Max. retriieval speed: 20m(67ft)/min
• Pay-out speed: power out 22m(73ft)/min
• Current draw(typical): 90amp
• Current draw(max.): 440amp
• Gear type: worm gear
• Weight: 15.4kg(34lb)
• Chain Size: 8mm DIN766,5/16"64
• Rope Size: 12~14mm, 1/4~9/16"

For detailed dimensions, see second image.
