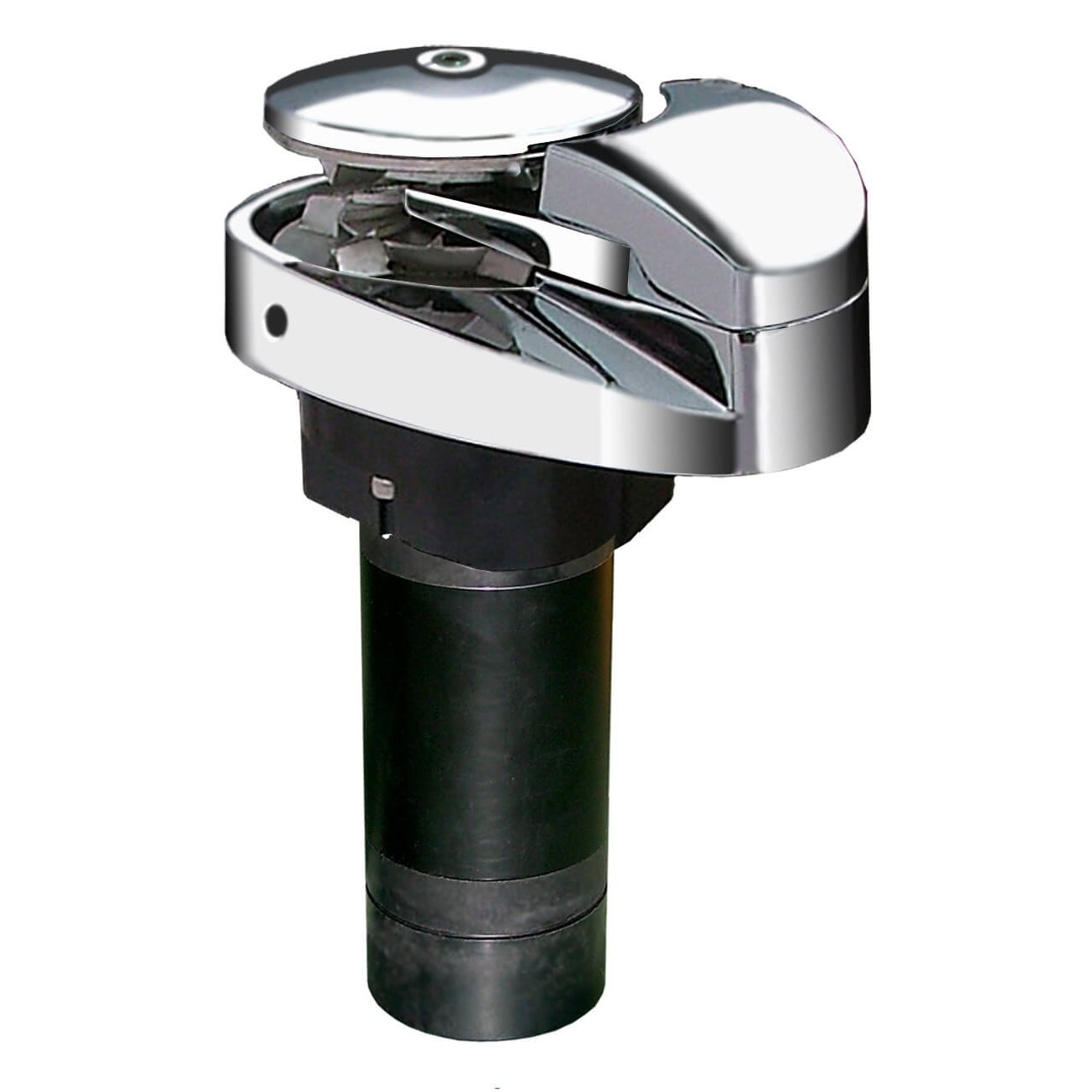

South Pacific PRO VA600 Gypsy Vertical Windlass Kit - 6mm / 12v

South Pacific PRO VA600 Gypsy Vertical Windlass Kit - 6mm / 12v.                     Ref: MZ-62023

 The VA600 is made of a marine-grade aluminium alloy with a powder coated finish to ensure corrosion resistance. Finally the VS600, our top-of-the-line model with all above deck parts made of polished 316 stainless steel. PRO V600 series suit boats from 5.4~9m (18~30ft) or handle up to 13.6kg (30lb) of anchor

This kit comes with:

• Windlass Pro VA600
• Direct Control Switch SW-200 (no solenoid required)
• Circuit Breaker CB-001-30
• Fixing Bolts
• User Manual
• Mounting Template

Features:

• Stainless steel gypsy takes both rope and chain
• Efficient spur gears, low current draw, high output power
• A torque limiter to deliver smoother operation and greater reliability.
• Efficient heavy duty DC motor produces less heat
• Manual retrieval capable with a handle bar included
• Compact one-piece unit for easy installation

Specifications

• Comparable Model : 700W
• Operating Voltage : 12V DC only
• Max. Working Load : 300kg(660lb)
• Typical Working Load : 55kg(120lb)
• Retrieval Speed : 20m(67ft)/min
• Pay-Out Speed : 25m(83ft)/min
• Current Draw (Typical) : 22 A
• Motor Type / Efficiency : permanent magnet / 75 %
• Motor Wattage I/O : 800/350 W
• Gear Type / Efficiency : spur gear / 92%~98%
• Weight : 5kg(11lb) ~ 9.5kg(21lb)
• Suit Chain Size : 6mm
• Suit Rope Size : 12mm
• Suit Deck Thickness : 3mm~60mm

For detailed dimensions, see second image.
