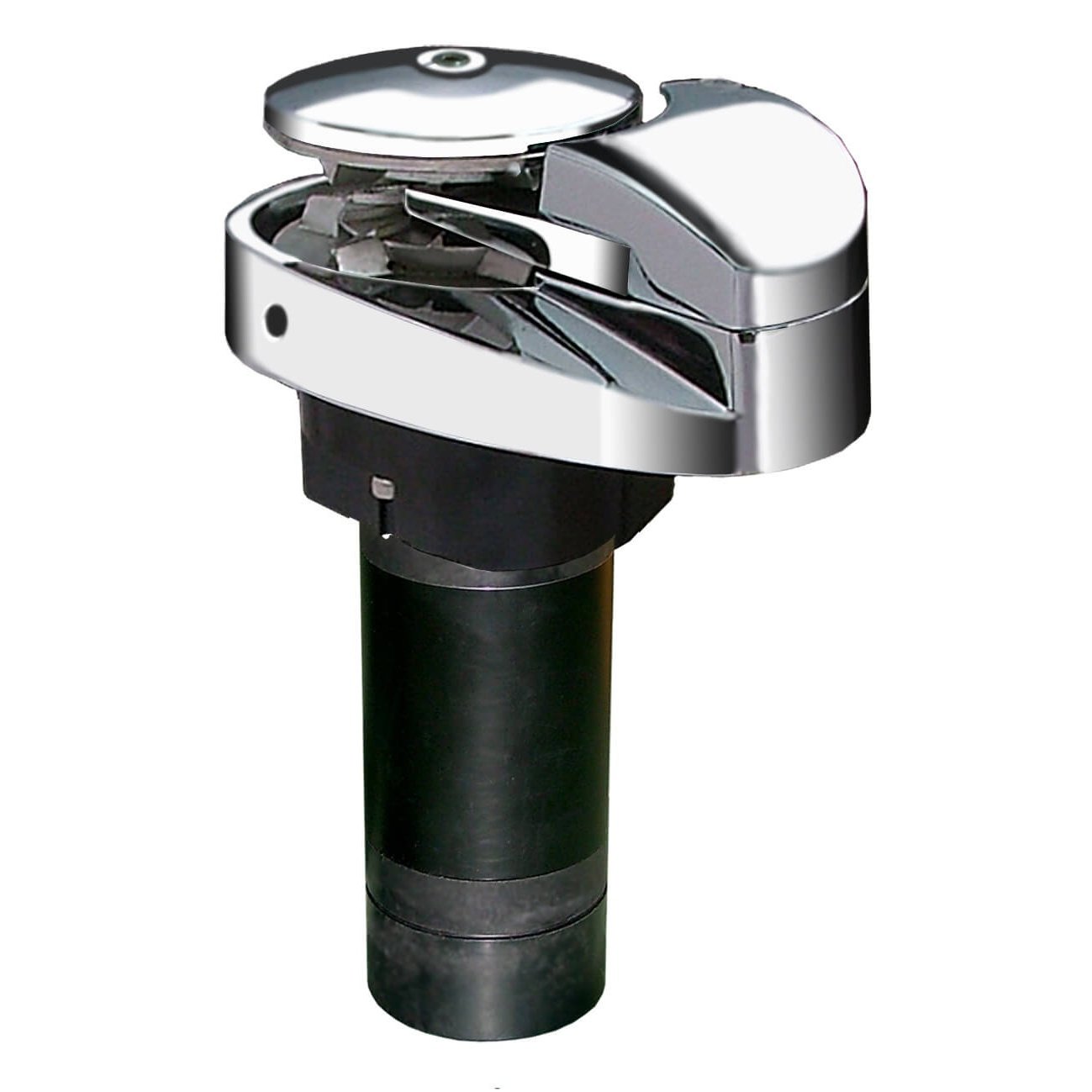

South Pacific PRO VS1000 Gypsy Vertical Windlass Kit - 8mm / 12v

South Pacific PRO VS1000 Gypsy Vertical Windlass Kit - 8mm / 12v

Location:

Get 10% Off Everything*, Use Coupon Code BLACK10 *Excludes Liferafts & Windlasses

SKU:MZ-62034

Regular price £746.51
Regular price Sale price £746.51
Sale Sold out
Tax included. Shipping calculated at checkout.

outh Pacific PRO VS1000 Gypsy Vertical Windlass Kit - 8mm / 12v.                     Ref: MZ-62030

The V1000 series windlass come standard with a stainless steel gypsy. The metal gearbox, heavy duty DC motor and base have been designed into one, with no separate parts for strong structure and easy installation. The VS1000 is made of a marine-grade aluminium alloy with a powder coated finish to ensure corrosion resistance. The VS1000, the premium vertical windlass model with all above deck parts made of polished 316 stainless steel. The metal gearbox, heavy duty DC motor and base have been designed in one providing a robust unit and enabling easier installation. The one piece vertical unit also eliminates the need for additional gears.

This kit comes with:

  • Windlass Pro VS1000
  • Direct Control Switch SW-200 (no solenoid required)
  • Circuit Breaker CB-001-30
  • Fixing Bolts
  • User Manual
  • Mounting Template

Features:

  • Stainless steel gypsy takes both rope and chain
  • Efficient spur gears, low current draw, high output power
  • A torque limiter to deliver smoother operation and greater reliability.
  • Efficient heavy duty DC motor produces less heat
  • Manual retrieval capable with a handle bar included
  • Compact one-piece unit for easy installation

Specifications

  • Comparable Model : 1000W
  • Operating Voltage : 12V only
  • Weight : VS1000 (9.5kg/21lb)
  • Max. Working Load : 450kg(1000lb)
  • Typical Working Load : 85kg(188lb)
  • Retrieval Speed : 18m(60ft)/min
  • Pay-Out Speed : 22m(73ft)/min
  • Current Draw (Typical) : 32A(12V)
  • Motor Type / Efficiency : permanent magnet / 82%
  • Motor Wattage I/O : 1100/450 W
  • Gear Type / Efficiency : spur gear / 92%~98%
  • Suit Chain Siz : 6, 7, 8mm DIN766, 1/4", 5/16" G4 HT (selectable)
  • Suit Rope Size : 12, 14mm (selectable)
  • Suit Deck Thickness : 3mm~60mm

For detailed dimensions, see second image.
