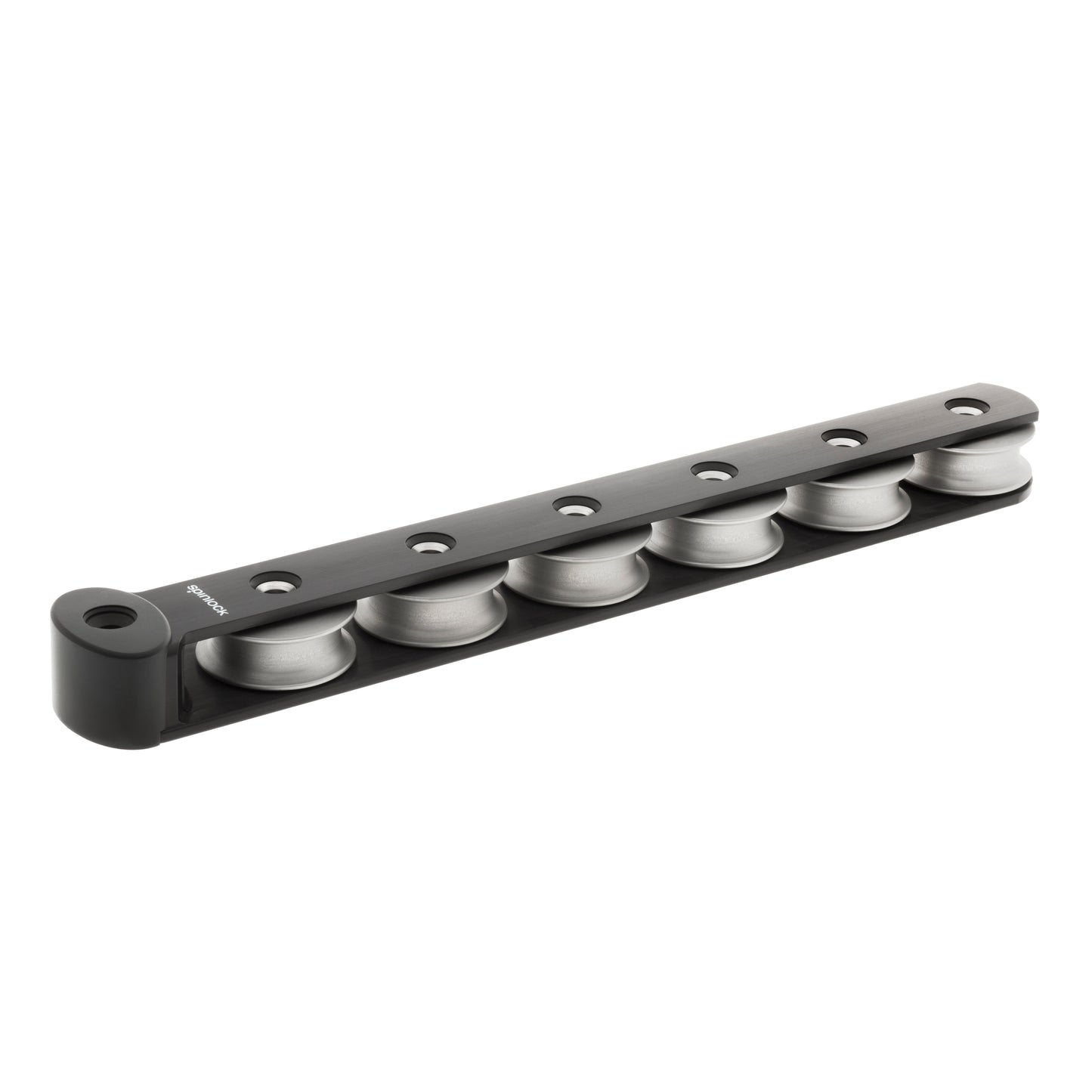

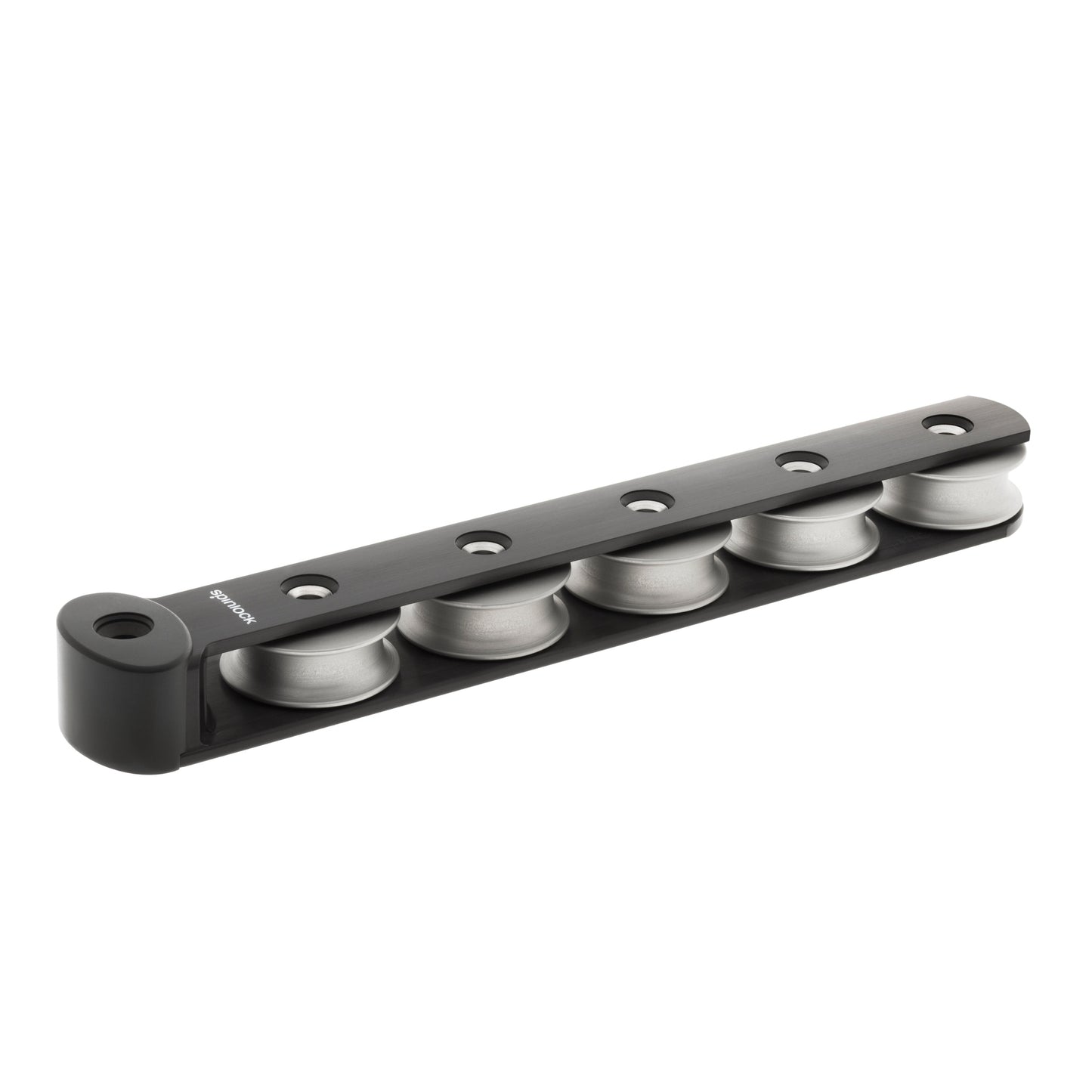

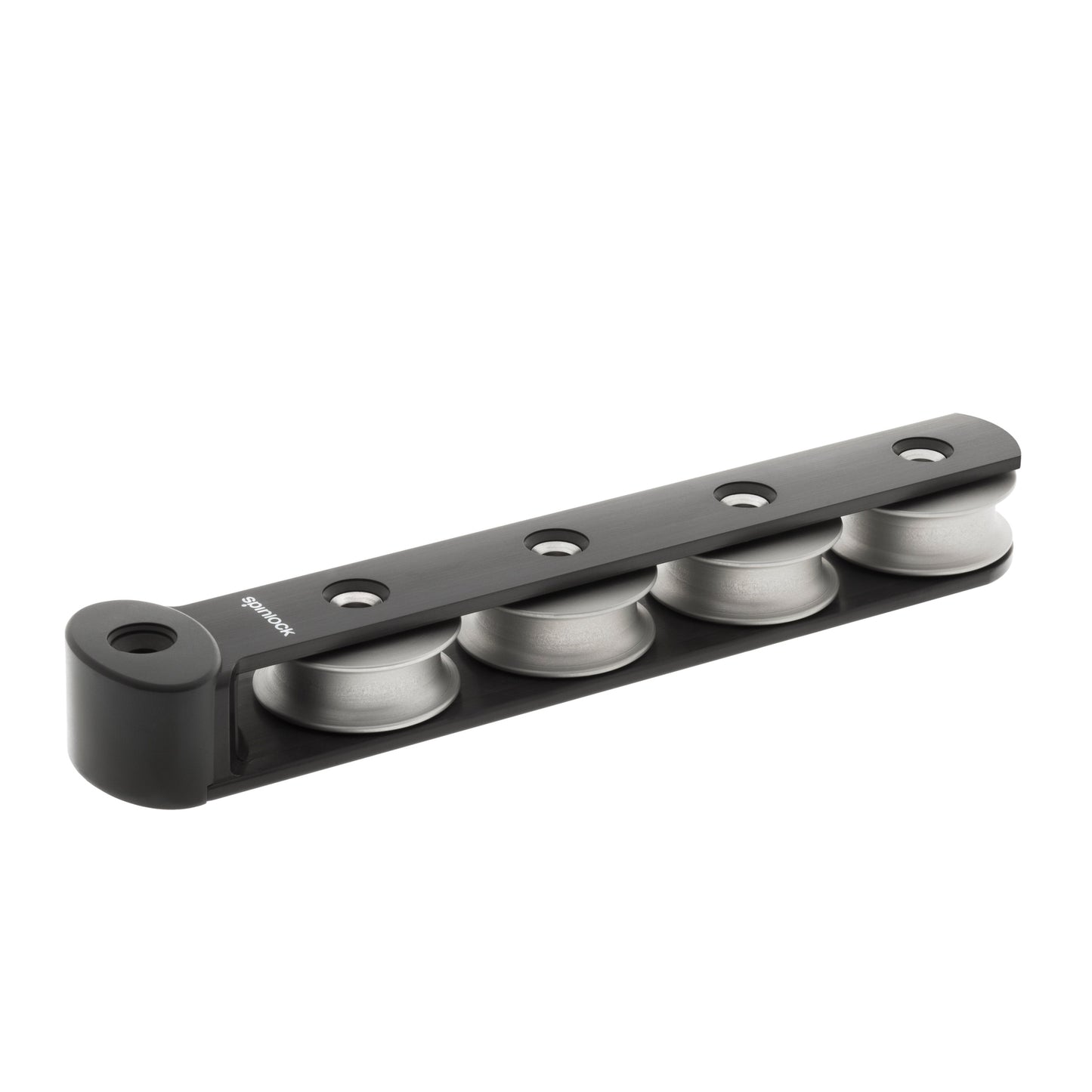

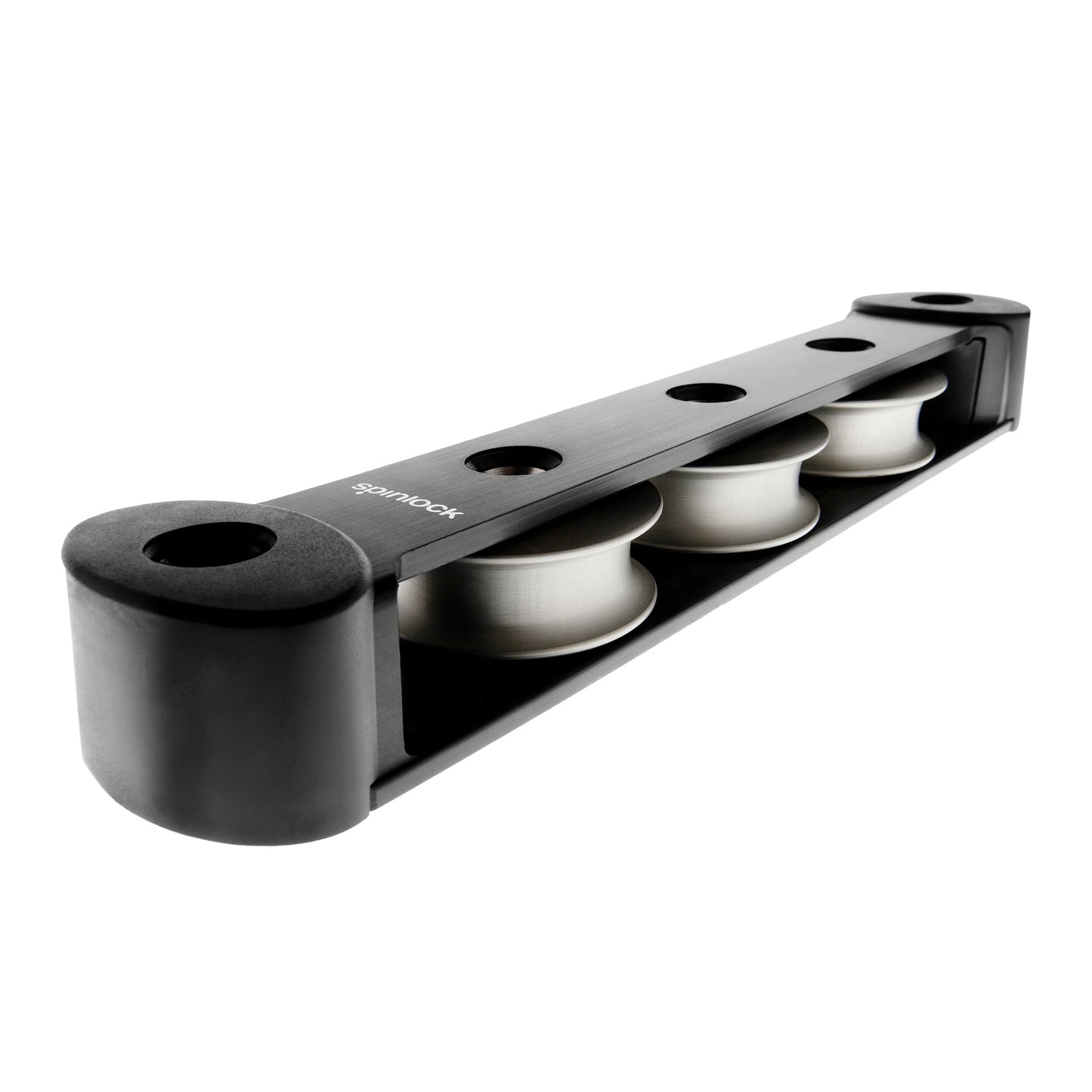

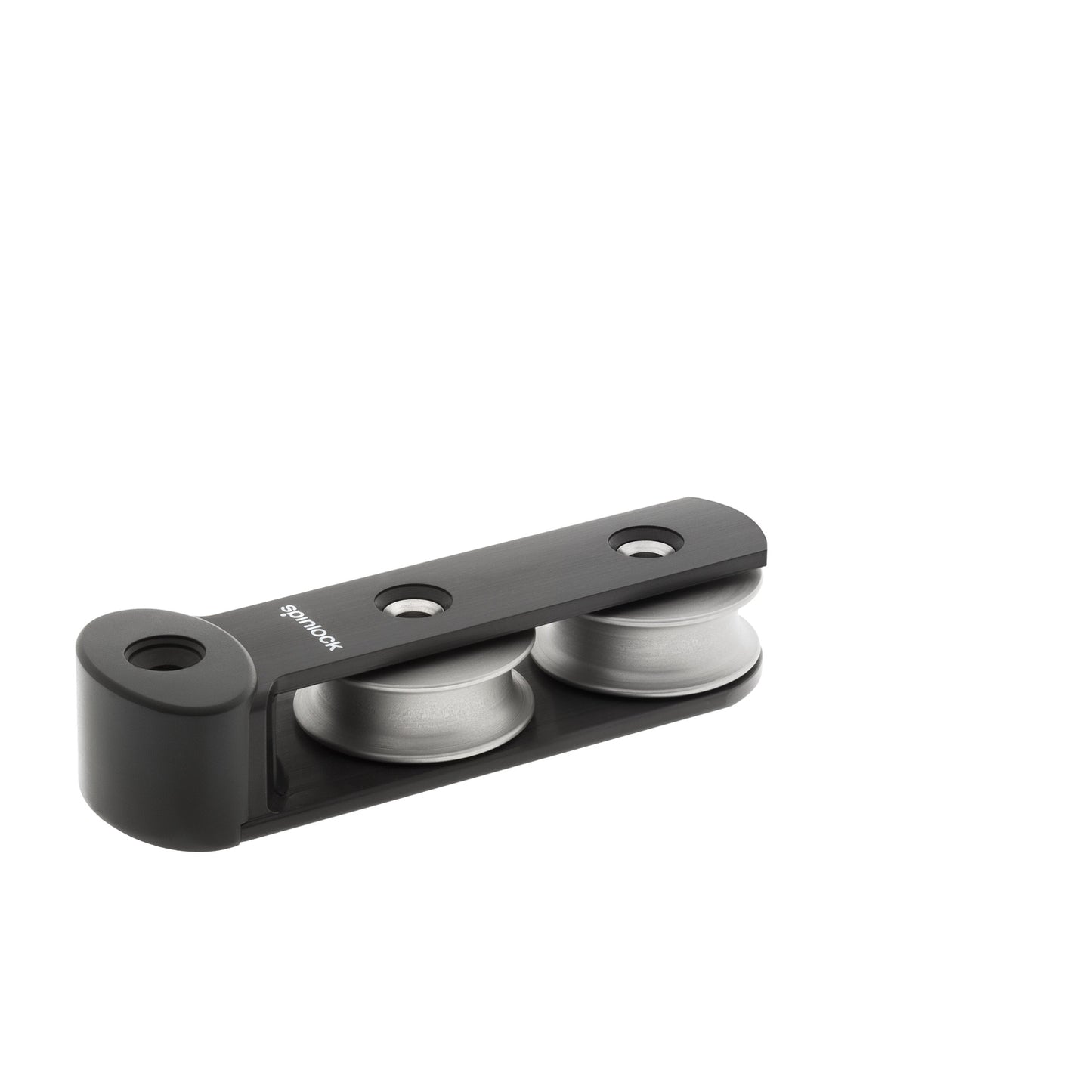

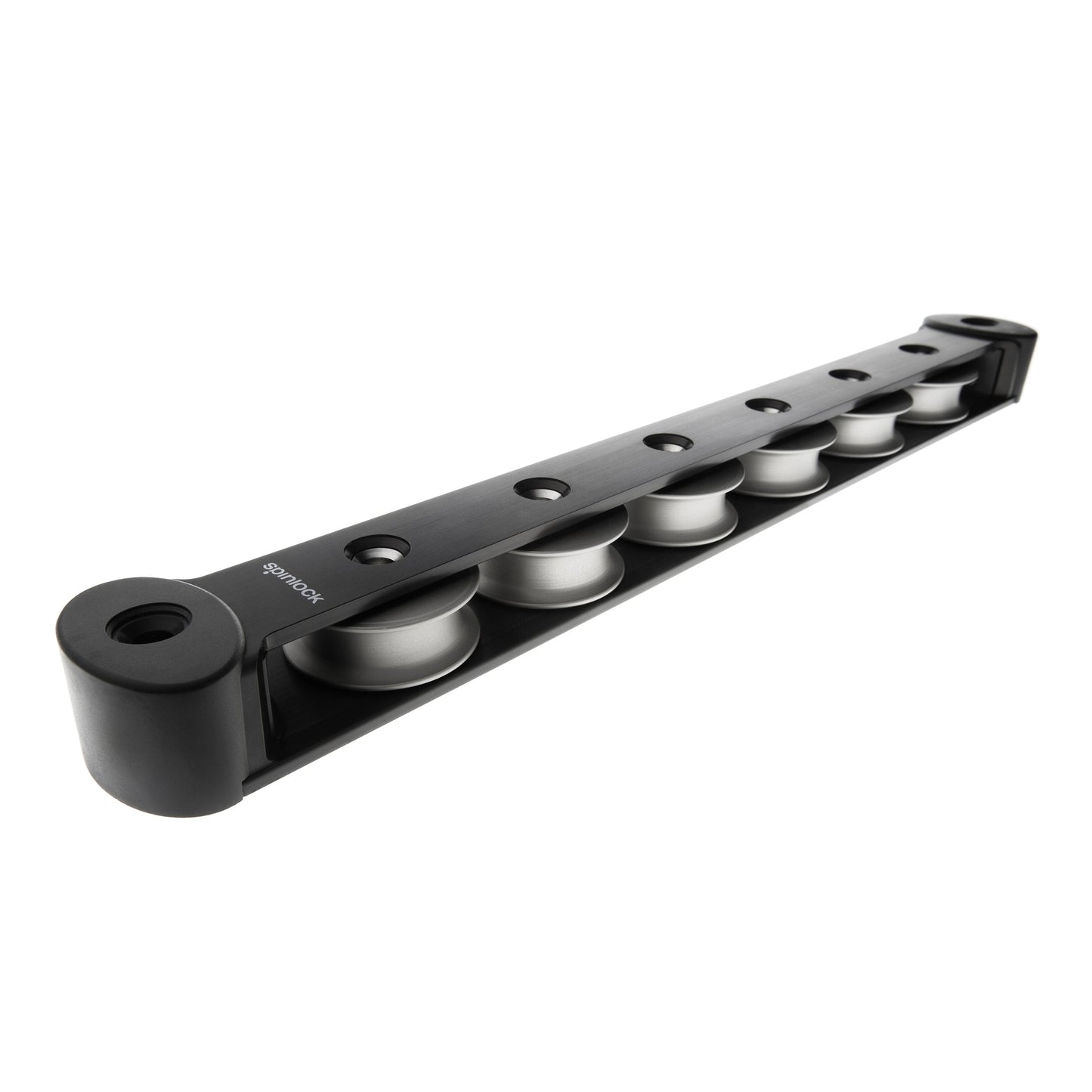

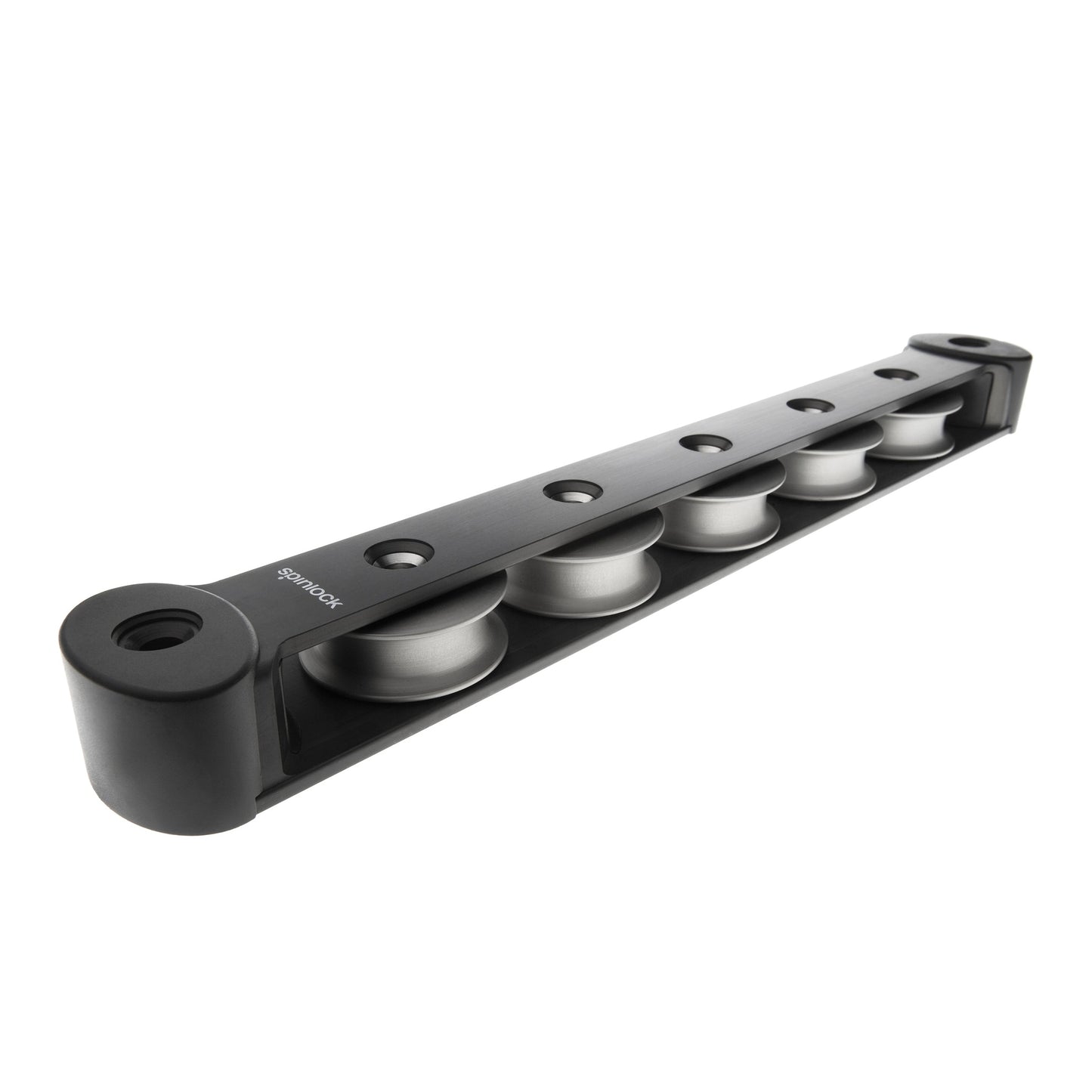

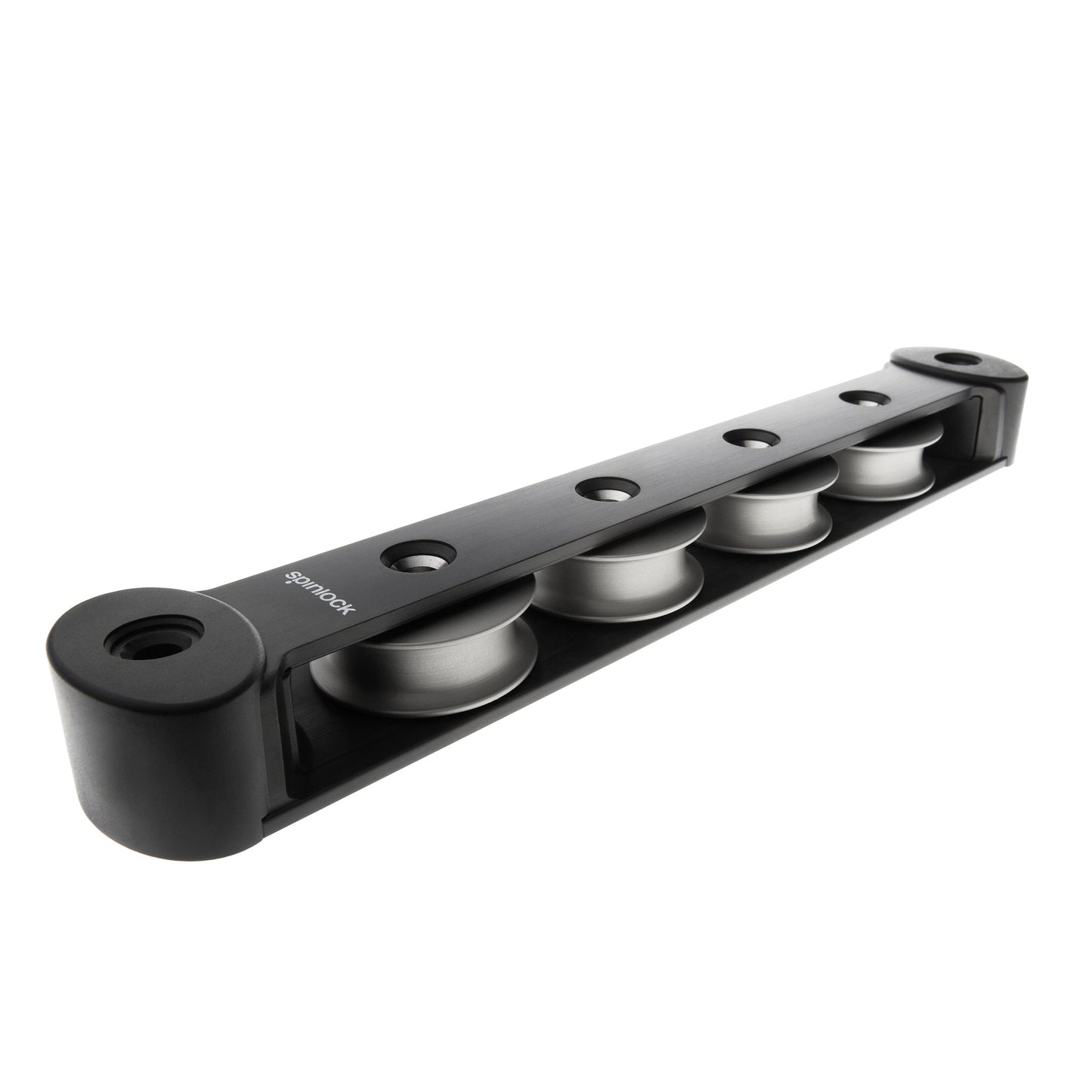

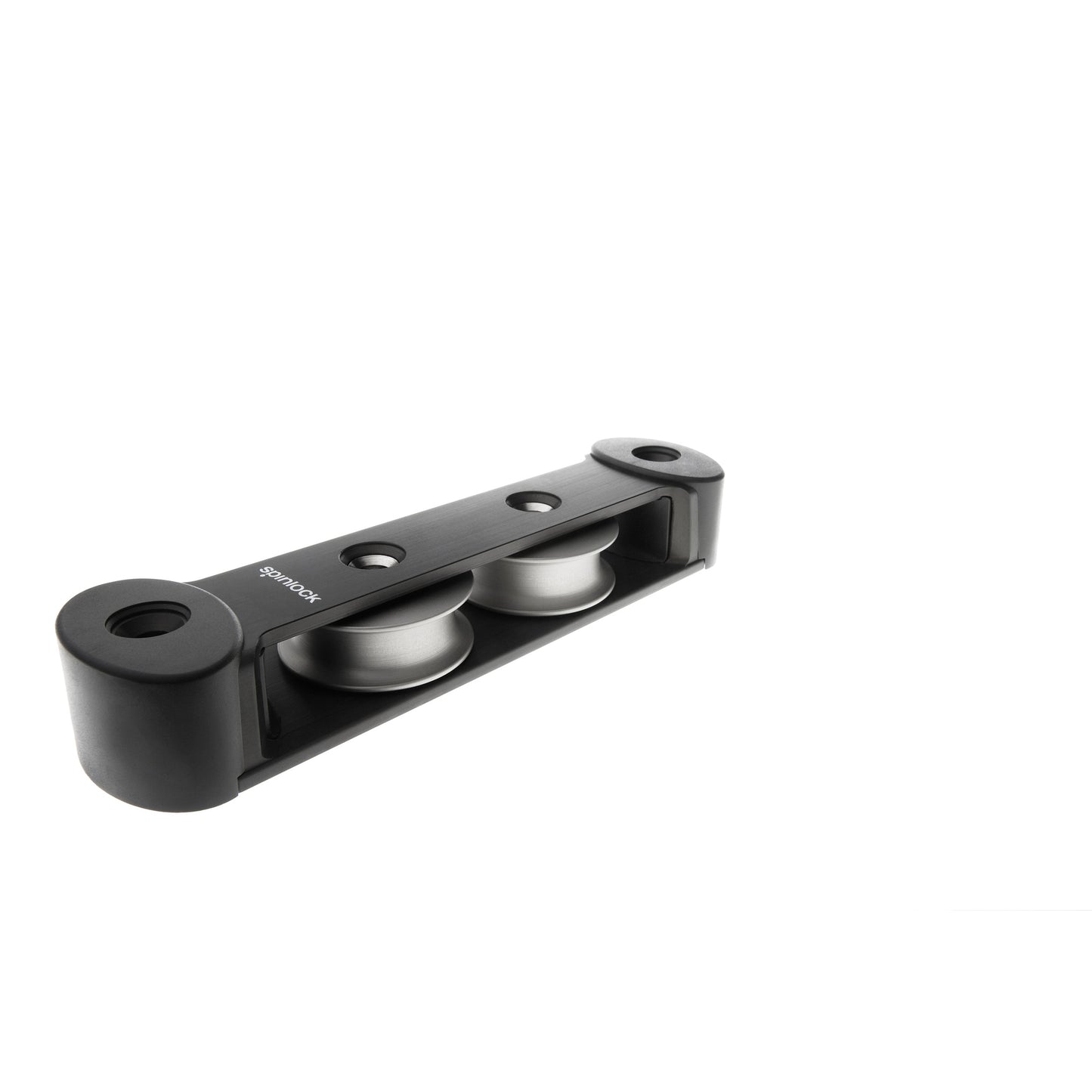

Spinlock TC50 Series Mid-Size Boat Higher Load Deck Organiser

Name: Spinlock TC50 Series Mid-Size Boat Higher Load Deck Organiser
Brand: Spinlock
SKU: MA-TC50/2
Price: 149.95 GBP
Availability: InStock

Spinlock TC50 Series Mid-Size Boat Higher Load Deck Organiser

Location:

Get 10% Off Everything*, Use Coupon Code BLACK10 *Excludes Liferafts & Windlasses

SKU:MA-TC50/2

£149.95

Sale Sold out

Tax included. Shipping calculated at checkout.

Stack Height Single Double

Style Symmetric Asymmetric

Sheave 2 3 4 5 6

Product variants

Quantity

Spinlock T-Series deck organisers lead multiple lines back from the mast to the power clutch.

TC50 organisers are specially developed for higher loads
Minimal overall length
Efficient bearings surface reduces winch effort and increases halyard life
Integral end fairings for safe side loading
Double stack versions available
Can be used as an Aft Organiser to divert lines from a clutch to a winch
Sheave Diameter/Type: TC50 - 50mm (2") alloy, TC50/D - 50mm (2") alloy
SWL per sheave: TC50 - 1500kg (3300lbs)
TC50/D - 1000kg (2200lbs) upper row
TC50/D - 1500kg (3300lbs) lower row
Total SWL per unit: TC50 - Number of sheaves x 750kg (1650lbs)
TC50/D - Number of sheaves x 500kg (1100lbs) upper row
TC50/D - Number of sheaves x750kg (1650lbs) lower row
Line Diameter: TC50 - Up to 14mm (9/16")
TC50/D - Up to 14mm (9/16")
