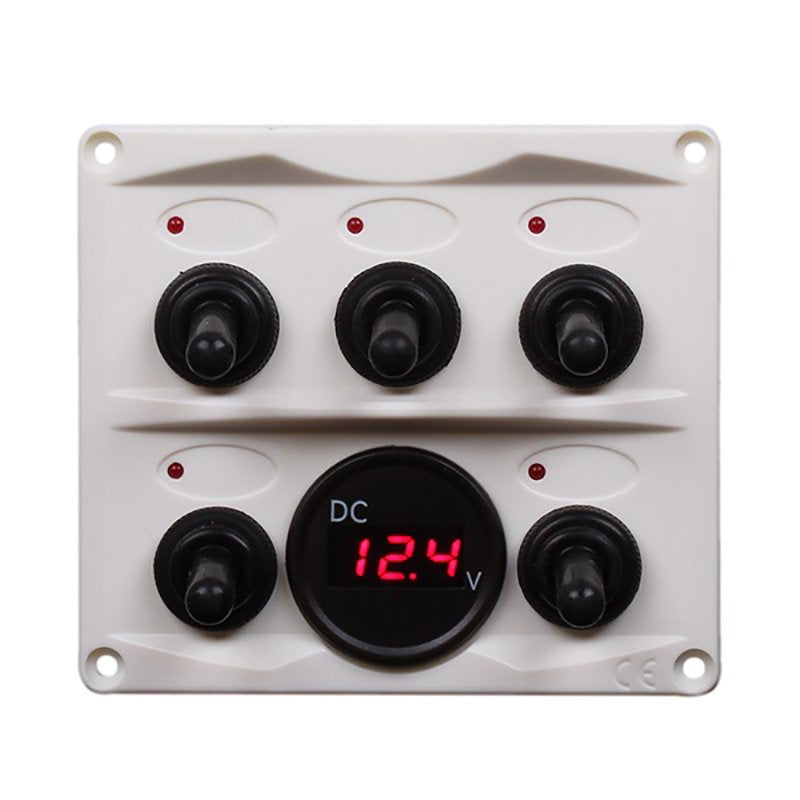

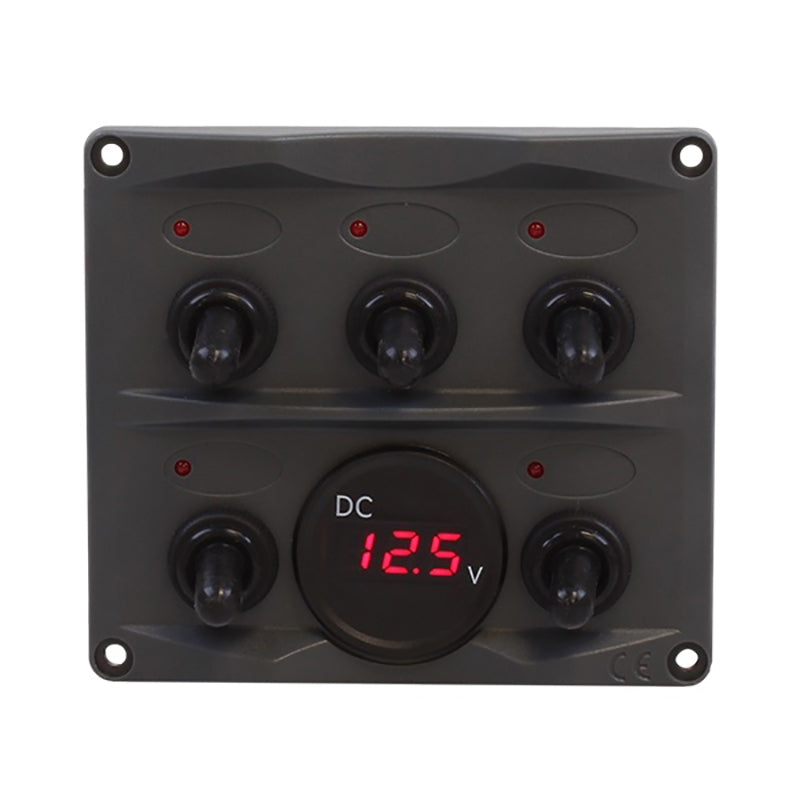

Switch panel with voltmeter
- 5 switches + voltmeter
- Water Resistance IP66
- Compact design W x H 107 x 95 mm; cut out size W x H 93 x 76 mm
- Mounting depth 95 mm
- Input 12V & 24V
- Maximum current switch: 15A@DC 12V/10A@DC24V
- ATP in-line fuse 15A per 2 switches
- Comes with 28 stickers
- LED indicator lights
Voltmeter Specifications
- Voltage 2,5-30V DC
- Consumption < 30mA
- Refresh speed 5 per second
- Voltage resolution 0,01V (input < 10V) / 10.0V (input > 10V)
- Diameter Ø 36.60 mm, height 17.5 mm (without flush mount frame)
