Tecnoseal 00101 Series Rubber Heavy Duty UK Disc Rudder Anode Backing Pad

Tecnoseal GUA101UK, GUA102UK and GUA105UK neoprene disc-anode backing pads are model-specific mounting pads for the corresponding 00101UK, 00102UK and 00105UK heavy-duty UK-pattern disc-anode families. Each pad fits between the matching disc anode and mounting surface, helping protect the surface and provide a shaped bedding layer beneath the anode. The pad is not a sacrificial anode and does not replace the electrical connection required by the vessel's cathodic-protection system.

What Are These Backing Pads Used For?

The pad is positioned between the matching Tecnoseal heavy-duty disc anode and the rudder, trim tab or other mounting surface. It helps separate the anode casting from the surface coating and provides a consistent interface beneath the anode.

The sacrificial anode must still have the electrical continuity required by the original installation. Neoprene does not conduct electricity and must not cover a fixing, insert or contact area that is intended to provide a direct connection between the anode and protected metal.

Key Features

• Brand: Tecnoseal
• Product category: Heavy-duty disc-anode backing pad
• Manufacturer part numbers: GUA101UK, GUA102UK and GUA105UK
• Material: Neoprene
• Compatible anode families: 00101UK, 00102UK and 00105UK
• Compatible anode alloys: Zinc, aluminium and magnesium within the matching base family
• Function: Provides a shaped layer between the disc anode and mounting surface
• Electrical function: None; the pad does not create or replace electrical continuity
• Number of variants: Three
• Supply: Selected backing pad only
• Not included: Sacrificial anode, centre bolt, nut, washers or other mounting hardware

Which Backing Pad Fits Which Anode?

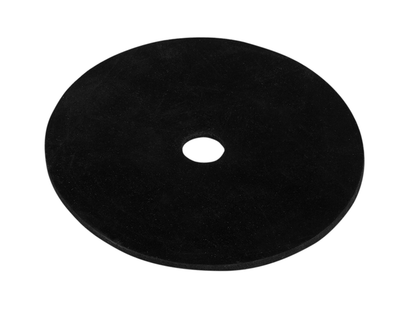

• GUA101UK: For 00101UK, 00101UKAL and 00101UKMG disc anodes. The matching anode geometry is Ø70mm outside diameter, 33mm overall height, Ø30mm centre recess and Ø11mm centre fixing hole.

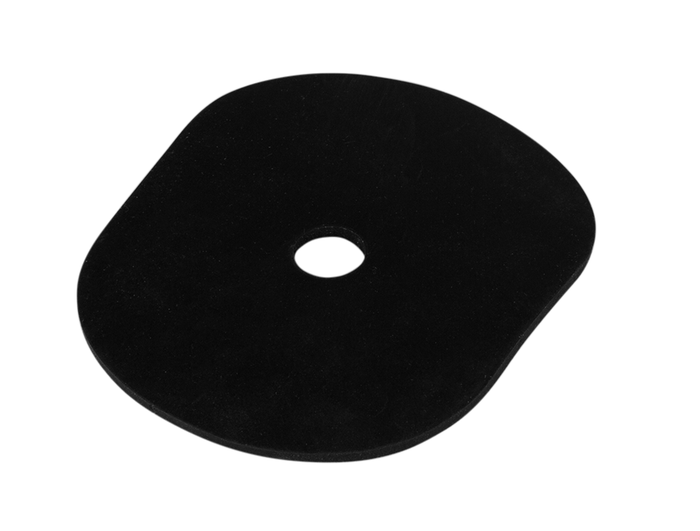

• GUA102UK: For 00102UK, 00102UKAL and 00102UKMG disc anodes. The matching anode has a non-circular 98mm × 82mm outside profile, 32mm overall height, Ø42mm centre recess and Ø14.5mm centre fixing hole.

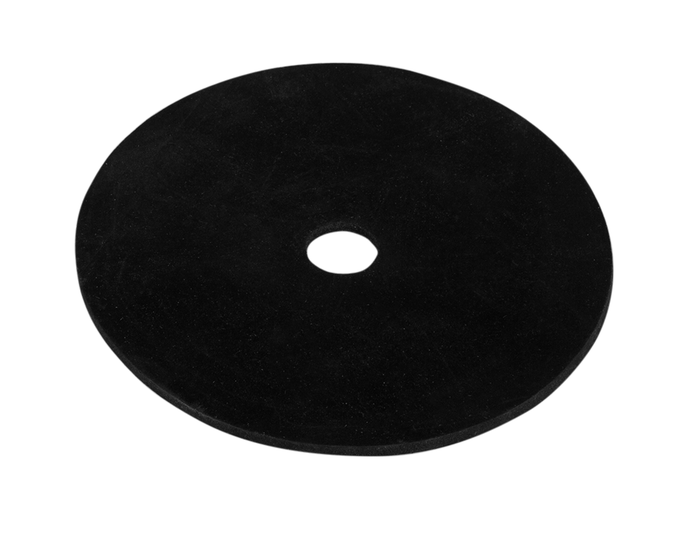

• GUA105UK: For 00105UK, 00105UKAL and 00105UKMG disc anodes. The matching anode geometry is Ø148mm outside diameter, 36mm overall height, Ø36mm centre recess and Ø14.5mm centre fixing hole.

How Do I Select the Correct Backing Pad?

Match the pad to the base anode family number:

• GUA101UK: Select for a 00101UK-family anode.
• GUA102UK: Select for a 00102UK-family anode.
• GUA105UK: Select for a 00105UK-family anode.

The anode alloy does not change the pad selection. For example, the 00102UK zinc, 00102UKAL aluminium and 00102UKMG magnesium anodes all use the GUA102UK backing-pad pattern.

Before ordering, confirm the existing anode part number and complete geometry. Do not select the pad solely from the approximate outside diameter because the 00102UK pattern is non-circular and the three families use different centre recesses and fixing holes.

Important Size Reference

The size values used in the product selector are the full dimensions of the compatible disc anode, not manufacturer-published complete dimensions for the neoprene pad.

Tecnoseal currently publishes the pad part number, material, weight and matching anode family, but does not publish complete pad dimensions for GUA101UK, GUA102UK or GUA105UK. The base anode family should therefore remain the primary compatibility reference.

Installation Guidance

Remove the existing anode and inspect the mounting surface, centre fixing and electrical-contact arrangement. Remove loose paint, corrosion deposits, old pad material and trapped debris.

Position the replacement pad flat against the mounting surface without folds, stretching or distortion. Align the matching anode and refit it using suitable serviceable hardware and the vessel or equipment manufacturer's tightening procedure.

Ensure the pad does not cover or interrupt an electrical-contact point required by the installation. The anode's insert, centre fixing or bonding arrangement must remain connected to the protected metal as specified by the vessel's cathodic-protection design.

Frequently Asked Questions

• Is the sacrificial anode included? No. This listing is for the selected neoprene backing pad only.
• Is mounting hardware included? No mounting hardware is listed as part of the individual pad products. Obtain the correct centre bolt, nut and washers separately unless the specific product offer states otherwise.
• Do zinc, aluminium and magnesium anodes require different pads? No. Select the pad by the base anode family rather than the anode alloy.
• Are the selector measurements the physical pad dimensions? No. They are the full dimensions of the compatible anode and are used as a clear selection reference.
• Does the backing pad provide electrical continuity? No. Neoprene must not replace or interrupt the electrical connection between the sacrificial anode and protected metal.
• Can GUA102UK and GUA105UK be interchanged because both use a Ø14.5mm fixing hole? No. Their outside profiles, heights and centre-recess diameters differ.
• Is GUA102UK circular? It matches the non-circular 00102UK anode pattern, which measures 98mm × 82mm.
• Should the pad be replaced when fitting a new anode? Replace it where the existing pad is damaged, compressed, distorted, split or no longer provides the intended seating surface.

Specifications

Size-reference note: The full-size measurements shown above describe the compatible 00101UK, 00102UK and 00105UK anodes. They are not manufacturer-published complete dimensions for the neoprene pads.
