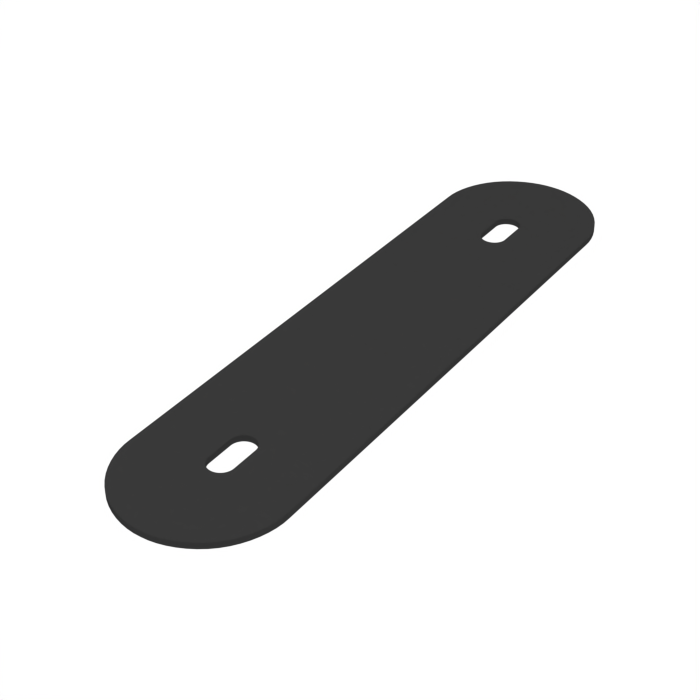

Tecnoseal 00270 Series Rubber Bolt On Bar Hull Anode Backing Pad

Tecnoseal GUA271E, GUA272E and GUA273E neoprene bar-anode backing pads are model-specific bedding pads for the corresponding 00271E, 00272E and 00273E UK-type bolt-on bar-anode families. Each pad fits between the anode casting and the hull or mounting surface, helping protect the surface and distribute contact pressure beneath the anode. The pad itself is not a sacrificial anode and does not replace the electrical connection required by the vessel's cathodic-protection system.

What Are These Backing Pads Used For?

The backing pad follows the mounting footprint of its corresponding Tecnoseal bar-anode family. It provides a shaped layer between the anode body and the hull coating or mounting surface.

The sacrificial anode must still be electrically connected to the protected metal through its integral strap, mounting studs or specified bonding arrangement. Neoprene does not provide electrical continuity and must not cover a contact point that the installation requires to remain bare metal.

Key Features

• Brand: Tecnoseal
• Product category: Bar-anode backing pad
• Models: GUA271E, GUA272E and GUA273E
• Material: Neoprene
• Compatible anode families: 00271E, 00272E and 00273E
• Compatible alloys: Zinc, aluminium and magnesium versions within each matching anode family
• Function: Provides a shaped bedding layer between the anode and mounting surface
• Electrical function: None; the pad does not create or replace electrical continuity
• Supply: Backing pad only
• Not included: Sacrificial anode, mounting studs, nuts, washers and other fitting hardware

Which Backing Pad Fits Which Anode?

• GUA271E: For the Tecnoseal 00271E family, including 00271E zinc, 00271EAL aluminium and 00271E/MG or 00271EMG magnesium variants. Published pad dimensions are 310mm × 75mm × 3mm. It has a comparable mounting pattern to the MG Duff ZD78-style anode installation.
• GUA272E: For the Tecnoseal 00272E family, including 00272E zinc, 00272EAL aluminium and 00272EMG magnesium variants. The corresponding anode body measures 455mm × 94mm × 40mm and uses 230mm fixing centres.
• GUA273E: For the Tecnoseal 00273E family, including 00273E zinc, 00273EAL aluminium and 00273EMG magnesium variants. The corresponding anode body measures 450mm × 105mm × 50mm and uses 230mm fixing centres.

Important: Although the 00272E and 00273E anodes both use 230mm fixing centres, their body footprints are different and Tecnoseal assigns a separate backing-pad part number to each family. Do not treat GUA272E and GUA273E as automatically interchangeable.

How Do I Select the Correct Backing Pad?

Match the backing pad to the base anode family number:

• GUA271E: Select for a 00271E-family anode.
• GUA272E: Select for a 00272E-family anode.
• GUA273E: Select for a 00273E-family anode.

The anode alloy does not change the backing-pad model where the base family remains the same. For example, the zinc, aluminium and magnesium versions of the 00272E family all use the GUA272E-pattern pad.

Before ordering, confirm the anode part number, body footprint, fixing centres and pad outline. Do not select the pad from its appearance, approximate weight or fixing-centre measurement alone.

Installation Guidance

Remove the existing anode and inspect the mounting surface, fixing points and electrical-contact arrangement. Clean away paint flakes, corrosion products, old pad material and trapped debris.

Position the backing pad flat against the mounting surface without folds or distortion, then align the matching anode and refit it with suitable serviceable hardware. Follow the vessel or equipment manufacturer's tightening procedure.

The pad must not interrupt any electrical-contact point required by the installation. Keep the anode strap, studs and bonding connection arranged as specified by the vessel's cathodic-protection design.

Frequently Asked Questions

• Is the sacrificial anode included? No. This listing is for the selected neoprene backing pad only.
• Is mounting hardware included? No. Studs, bolts, nuts, washers and other mounting components are not included unless expressly stated separately.
• Does the backing pad provide electrical continuity? No. Neoprene is not a substitute for the anode strap, mounting studs or vessel bonding connection.
• Do zinc, aluminium and magnesium versions need different pads? No, not where they belong to the same base anode family. Select the pad by the 00271E, 00272E or 00273E family number.
• Are GUA272E and GUA273E interchangeable? No. The matching anodes have different body footprints despite sharing 230mm fixing centres.
• Can I select the pad by appearance alone? No. Match the manufacturer part number, anode family and mounting geometry before ordering.
• Is GUA271E suitable for an MG Duff ZD78-style installation? It has a comparable pattern, but the existing anode, pad outline and fixing arrangement must still be measured and confirmed.

Specifications

Dimensional note: The 455mm × 94mm and 450mm × 105mm measurements are the body-footprint references for the matching 00272E and 00273E anodes. They should not be treated as manufacturer-published complete pad dimensions. Confirm the pad and anode part numbers before ordering.
