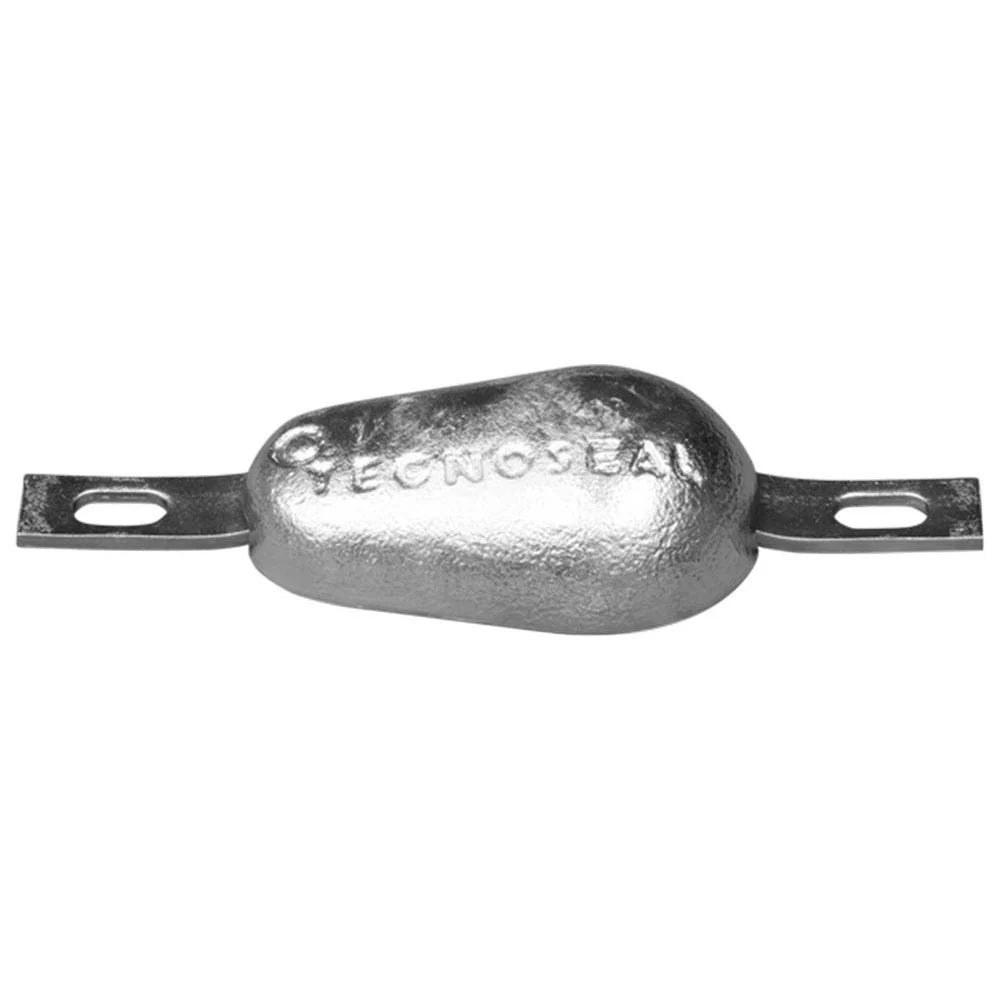

Tecnoseal Bolt On With Strap Pear Hull Anode - Aluminium

Tecnoseal Bolt On With Strap Pear Hull Anode - Aluminium

SKU: TS-00351-2-BAL

Tecnoseal USA type Aluminium hull anode suitable for use in salt and brackish water and manufactured from a premium grade alloy for high performance. The Aluminium pear anode is manufactured to US MIL Spec by Tecnoseal in Italy, one of the world's leading suppliers of sacrificial anodes for cathodic protection in the leisure boat market.

£16.95
£16.95
Sale Sold out
Tax included. Shipping calculated at checkout.
Size

Delivery available  |  lead times vary

Collection available  |  usually ready in 2-4 days   |  Location: N79

Description

Tecnoseal 00351-2-BAL Bolt-On Pear Hull Anode with Strap — Aluminium is a streamlined bolt-on hull anode with an integral mounting strap. The live variant uses aluminium and is intended for a hull or transom installation whose fixing centres, strap and body dimensions match the selected Tecnoseal part number.

What Is This Pear Anode Used For?

The pear-shaped sacrificial casting is mounted externally while the metal strap provides the mechanical fixing and electrical path to the vessel’s bonding arrangement. When correctly connected, the anode is consumed in preference to the protected underwater metalwork.

Key Features

  • Brand: Tecnoseal
  • Product category: Bolt-on pear-shaped hull anode with integral strap
  • Available alloys: Aluminium
  • Typical application: Hull, transom or underwater-metal cathodic protection
  • Mounting: Two slotted strap fixings
  • Selection method: Match complete part number, alloy, 200mm fixing centres and body/strap dimensions
  • Manufacture: Made in Italy by Tecnoseal

How Do I Select the Correct Variant?

Match the existing Tecnoseal part number wherever possible. Otherwise confirm the fixing-centre distance, anode body length, width and height, slot size and strap dimensions. Alloy density changes product weight substantially, so weight alone is not a reliable compatibility check across zinc, aluminium and magnesium versions.

  • 00351-2-BAL: aluminium, 140mm × 90mm × 42mm body, 200mm fixing centres

Which Anode Alloy Should I Choose?

  • Aluminium: generally selected for salt or brackish water and offers lower mass than an equivalent zinc casting.

Use the alloy specified by the vessel, drive or equipment manufacturer and keep the choice consistent with the existing cathodic-protection system. Water salinity, connected metals and stray-current conditions can change the correct selection.

Installation and Maintenance

Remove the old anode and clean the strap fixings, bonding points and backing surface and electrical contact points to bare metal. Fit the replacement using serviceable fasteners and the equipment manufacturer’s tightening procedure. Do not paint the anode or its electrical contact surfaces.

Inspect the anode during scheduled servicing. Replace it when substantially consumed, damaged or loose, and check bonding continuity or possible stray-current faults where consumption is unusually fast or uneven.

Alloy Standards and Manufacture

Tecnoseal sacrificial anodes are manufactured in Grosseto, Tuscany. Alloy batches are checked using spectrometric analysis and produced to the applicable current US-MIL alloy specifications used by Tecnoseal for zinc, aluminium and magnesium marine anodes.

Frequently Asked Questions

  • Are mounting bolts included? Unless the product variant explicitly states otherwise, select suitable fixings separately for the vessel construction and strap slots.
  • Can I replace zinc with aluminium or magnesium purely because the dimensions match? No. Confirm the required alloy for the water type and the vessel’s complete cathodic-protection system.
  • Should the anode body be painted? No. Keep the sacrificial casting exposed to the water and preserve the intended electrical connection through the strap.

Specifications

Specification Aluminium Variants
00351-2-BAL
Marine Scene SKU TS-00351-2-BAL
Anode alloy Aluminium
Typical water-selection guide Salt or brackish water
Anode body dimensions 140mm × 90mm × 42mm
Fixing centres 200mm
Mounting-slot size 13mm × 25mm
Strap dimensions 250mm × 25mm × 5mm

Specification

Part No. Metal Type Weight i l a h Ø strap
00350/B Zinc 1.000 kg / 2.20 lbs 200 mm / 7.87 in 120 mm / 4.72 in 78 mm / 3.07 in 25 mm / 0.98 in 13 x 25 mm / 0.51 x 0.98 in 230 x 25 x 5 mm
00350BAL Aluminium 0.390 kg / 0.86 lbs 200 mm / 7.87 in 120 mm / 4.72 in 78 mm / 3.07 in 25 mm / 0.98 in 13 x 25 mm / 0.51 x 0.98 in 230 x 25 x 5 mm
00350BMG Magnesium 0.450 kg / 0.99 lbs 200 mm / 7.87 in 120 mm / 4.72 in 78 mm / 3.07 in 25 mm / 0.98 in 13 x 25 mm / 0.51 x 0.98 in 230 x 25 x 5 mm
00351/1 Zinc 1.800 kg / 3.97 lbs 200 mm / 7.87 in 135 mm / 5.31 in 87 mm / 3.43 in 35 mm / 1.38 in 13 x 25 mm / 0.51 x 0.98 in 250 x 25 x 5 mm
00351-1AL Aluminium 0.860 kg / 1.90 lbs 200 mm / 7.87 in 135 mm / 5.31 in 87 mm / 3.43 in 35 mm / 1.38 in 13 x 25 mm / 0.51 x 0.98 in 250 x 25 x 5 mm
00351-1MG Magnesium 0.700 kg / 1.54 lbs 200 mm / 7.87 in 135 mm / 5.31 in 87 mm / 3.43 in 35 mm / 1.38 in 13 x 25 mm / 0.51 x 0.98 in 250 x 25 x 5 mm
00351/2/B Zinc 2.100 kg / 4.63 lbs 200 mm / 7.87 in 140 mm / 5.51 in 90 mm / 3.54 in 42 mm / 1.65 in 13 x 25 mm / 0.51 x 0.98 in 250 x 25 x 5 mm
00351-2-BAL Aluminium 1.000 kg / 2.20 lbs 200 mm / 7.87 in 140 mm / 5.51 in 90 mm / 3.54 in 42 mm / 1.65 in 13 x 25 mm / 0.51 x 0.98 in 250 x 25 x 5 mm
00351-2-BMG Magnesium 0.635 kg / 1.40 lbs 200 mm / 7.87 in 140 mm / 5.51 in 90 mm / 3.54 in 42 mm / 1.65 in 13 x 25 mm / 0.51 x 0.98 in 250 x 25 x 5 mm
00352/A Zinc 3.100 kg / 6.83 lbs 200 mm / 7.87 in 160 mm / 6.30 in 100 mm / 3.94 in 40 mm / 1.57 in 13 x 25 mm / 0.51 x 0.98 in 250 x 25 x 5 mm
00352/A-AL Aluminium 1.300 kg / 2.87 lbs 200 mm / 7.87 in 160 mm / 6.30 in 100 mm / 3.94 in 40 mm / 1.57 in 13 x 25 mm / 0.51 x 0.98 in 250 x 25 x 5 mm
00352AMG Magnesium 1.000 kg / 2.20 lbs 200 mm / 7.87 in 160 mm / 6.30 in 100 mm / 3.94 in 40 mm / 1.57 in 13 x 25 mm / 0.51 x 0.98 in 250 x 25 x 5 mm
00352-A1 Zinc 3.100 kg / 6.83 lbs 220 mm / 8.66 in 160 mm / 6.30 in 100 mm / 3.94 in 40 mm / 1.57 in 13 x 25 mm / 0.51 x 0.98 in
00352-A1AL Aluminium 1.300 kg / 2.87 lbs 220 mm / 8.66 in 160 mm / 6.30 in 100 mm / 3.94 in 40 mm / 1.57 in 13 x 25 mm / 0.51 x 0.98 in
