Tecnoseal Mercury / Mercruiser Bravo 3 2004-On Anode Engine Kit

Tecnoseal Mercury/MerCruiser Bravo III 2004-on anode kits are complete six-piece sacrificial-anode sets for compatible Bravo III sterndrives. Each selected alloy kit contains two flat plate anodes, two trim-cylinder or lift-ram anodes, one propeller-nut anode and one driveshaft or cavitation-plate anode. Zinc, aluminium and magnesium versions are available, with fixing hardware included in every kit.

Which Drive Is This Kit For?

Tecnoseal catalogues this kit for Mercury/MerCruiser Bravo III drives from 2004 onward.

Mercury's current equivalent aluminium and magnesium kit records specify compatibility with Bravo III sterndrives from serial number 0M179452 and above, commonly described by Mercury as 2003 and newer. Because model-year descriptions differ slightly, confirm the drive serial number and compare all six existing anode positions before ordering.

This kit is not the same as the earlier Bravo II–III kit, which uses a different component configuration. The KITBRAVOIII-04 range includes the additional flat plate and propeller-nut anode required by the later six-piece Bravo III arrangement.

What Is Included?

Every alloy option contains six sacrificial-anode pieces manufactured from the selected material:

• 1 × flat plate / trim-tab anode: 00835 zinc, 00835AL aluminium or 00835MG magnesium
• 1 × flat plate / trim-tab anode: 00820 zinc, 00820AL aluminium or 00820MG magnesium
• 2 × trim-cylinder / lift-ram anodes: 00818 zinc, 00818AL aluminium or 00818MG magnesium
• 1 × propeller-nut anode: 00836 zinc, 00836AL aluminium or 00836MG magnesium
• 1 × driveshaft / cavitation-plate anode: 00815 zinc, 00815AL aluminium or 00815MG magnesium
• Fixing hardware: Included with every kit

All six anode pieces in a selected kit are manufactured from the same alloy. The kit does not contain mixed zinc, aluminium and magnesium components.

Key Features

• Brand: Tecnoseal
• Product category: Sterndrive sacrificial-anode kit
• Manufacturer kit numbers: KITBRAVOIII-04, KITBRAVOIII-04/AL and KITBRAVOIII-04-MG
• Drive compatibility: Mercury/MerCruiser Bravo III
• Tecnoseal year guide: 2004 onward
• Mercury serial-number guide: 0M179452 and above
• Number of sacrificial-anode pieces: Six
• Available alloys: Zinc, aluminium and magnesium
• Fixing hardware: Included
• Protected positions: Flat plates, trim cylinders, propeller nut and driveshaft/cavitation plate
• Application: Multi-position cathodic protection for the Bravo III sterndrive assembly
• Boat type: Motorboats fitted with a compatible Bravo III sterndrive
• Manufacture: Made in Italy by Tecnoseal

Which Anode Alloy Should I Choose?

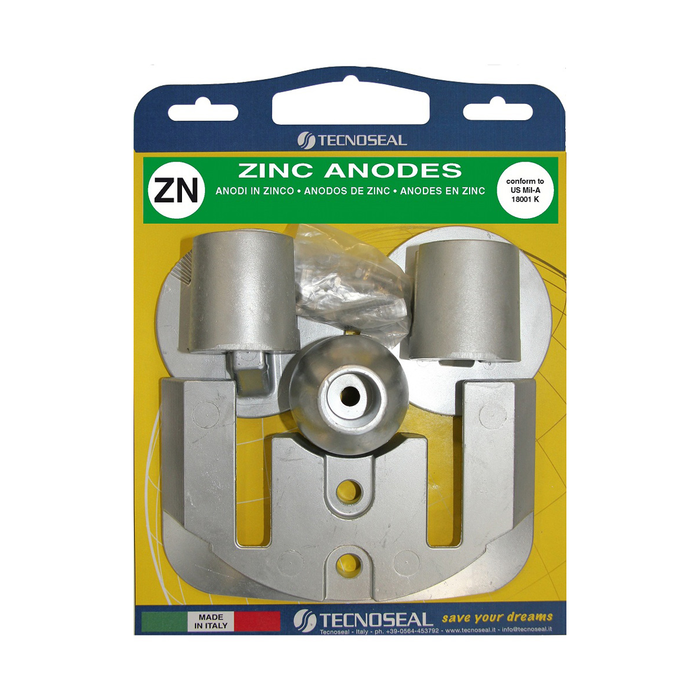

• Zinc: A conventional choice for salt-water operation where zinc is specified by the vessel or drive manufacturer.

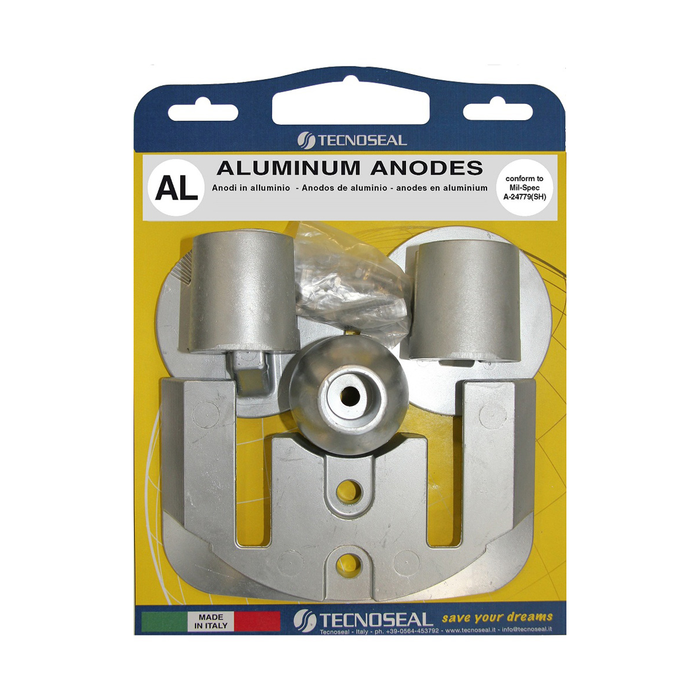

• Aluminium: Mercury specifies its equivalent Bravo III aluminium kit for fresh or salt water. Aluminium is also commonly selected for salt or brackish-water operation.

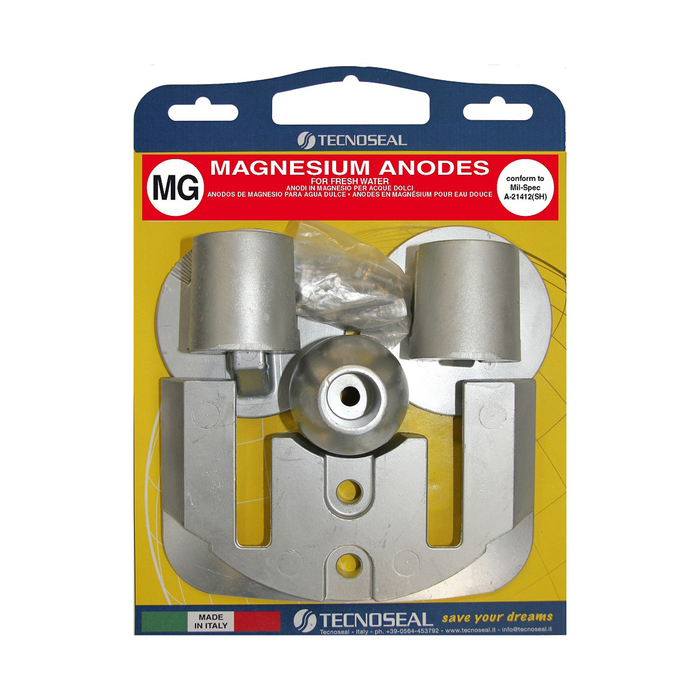

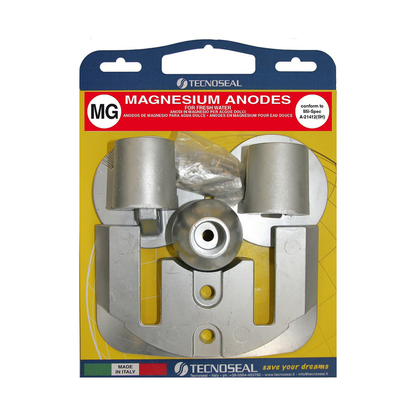

• Magnesium: Intended for fresh-water use only. Mercury states that its equivalent magnesium kit is for freshwater applications.

Use one matched alloy throughout the sterndrive kit. Do not mix zinc, aluminium and magnesium anodes unless Mercury, the vessel manufacturer or a qualified marine-corrosion specialist has specified that arrangement.

Water salinity, connected metals, the vessel's fixed anodes, shore-power installation, bonding condition and stray-current activity can affect the correct alloy selection.

How Do I Confirm Compatibility?

Before ordering, check:

• The drive is a Mercury/MerCruiser Bravo III.
• The drive serial number is normally 0M179452 or later.
• The existing installation uses two flat plate anodes.
• Two trim-cylinder or lift-ram anodes are fitted.
• A propeller-nut anode is fitted.
• A driveshaft or cavitation-plate anode is fitted.
• The selected alloy is compatible with the operating water and the vessel's wider cathodic-protection system.
• The drive has not been modified with non-standard trim cylinders, propeller hardware or anode positions.

Do not select the kit solely from engine horsepower, boat manufacturer or the description “Bravo III”. Confirm the serial number and existing component arrangement.

Installation and Maintenance

Remove all existing anodes and clean each mounting face, fixing point and required electrical-contact surface to clean bare metal. Paint, corrosion deposits, grease, sealant and other insulating materials can prevent the direct electrical contact required for sacrificial protection.

Fit all six replacement anode pieces using the supplied hardware and the Mercury/MerCruiser installation and tightening procedure. Confirm that each anode sits securely and has electrical continuity with the component it protects.

Do not paint the sacrificial castings or their contact surfaces. Inspect the anodes periodically and replace the complete set when the components are substantially consumed, damaged, cracked or loose.

Unusually rapid or uneven consumption can indicate unsuitable alloy selection, poor electrical continuity, bonding faults, shore-power problems or stray-current activity.

Alloy Standards and Manufacture

Tecnoseal manufactures zinc, aluminium and magnesium sacrificial anodes at its foundry in Grosseto, Tuscany. The company checks alloy composition through scheduled spectrometric measurements:

• Zinc alloy: US Mil Spec A-18001K
• Aluminium alloy: US Mil Spec A24779 SH
• Magnesium alloy: US Mil Spec A21412 SH

Tecnoseal states that its sacrificial anodes are designed and manufactured according to the chemical composition specified by the applicable alloy standard.

Frequently Asked Questions

• How many anodes are included? Six sacrificial-anode pieces are included: two flat plate anodes, two trim-cylinder anodes, one propeller-nut anode and one driveshaft or cavitation-plate anode.
• Is fixing hardware included? Yes. Tecnoseal lists fixing hardware as included with all three alloy variants.
• Will this fit every Bravo III drive? Confirm the serial number and six-anode arrangement. Mercury identifies the equivalent configuration as serial number 0M179452 and above.
• Why does Tecnoseal say 2004 onward while Mercury says 2003 and newer? The manufacturer year descriptions differ. Use the drive serial number and existing anode arrangement as the primary compatibility checks.
• Are all six pieces made from the selected alloy? Yes. Selecting zinc, aluminium or magnesium provides a complete matched kit in that alloy.
• Can aluminium be used in fresh water? Mercury specifies its equivalent aluminium Bravo III kit for fresh or salt water. Confirm that aluminium is compatible with the vessel's complete cathodic-protection system.
• Can magnesium be used in salt water? No. Mercury identifies the magnesium kit for freshwater use only.
• Can the three alloys be mixed on one drive? Use a consistent alloy throughout the kit unless Mercury or a qualified marine-corrosion specialist specifies otherwise.
• Does this kit include every anode required for the boat? No. It covers the stated Bravo III sterndrive positions. Separate hull, shaft or other equipment anodes may still be required.
• Can the new anodes be painted? No. Keep all sacrificial surfaces and required electrical-contact faces free from paint, grease and insulating sealant.
• Why do the kit weights differ? Zinc, aluminium and magnesium have different densities, so equivalent component shapes have different finished weights.
