Tecnoseal Volvo Penta 290-C Duo-Prop Anode Engine Kit

Tecnoseal Volvo Penta 290-C DuoProp Series Plus anode kits are four-piece sacrificial-anode sets for compatible Volvo Penta 290-DP and DP-series sterndrives. Each selected alloy kit contains a DuoProp ring anode, a transom-shield anode and two triangular plate anodes, allowing all four drive positions to be renewed during the same service. Zinc, aluminium and magnesium variants are available for different operating-water requirements.

Which Drive Is This Kit For?

These kits are commonly catalogued for compatible Volvo Penta 290A-DP, 290-DP, DP-A, DP-A1, DP-A2, DP-B, DP-B1, DP-C, DP-C1, DP-D, DP-D1, DP-D2, DP-E and DP-G DuoProp sterndrives.

Drive revisions and previous component changes can affect fitment. Confirm the exact sterndrive model and compare the existing ring, transom-shield anode and two triangular plate positions before ordering.

Important: This listing is for DuoProp drives. It is not the equivalent single-prop 290 kit and should not be selected solely because the drive is described generally as a Volvo Penta 290.

What Is Included?

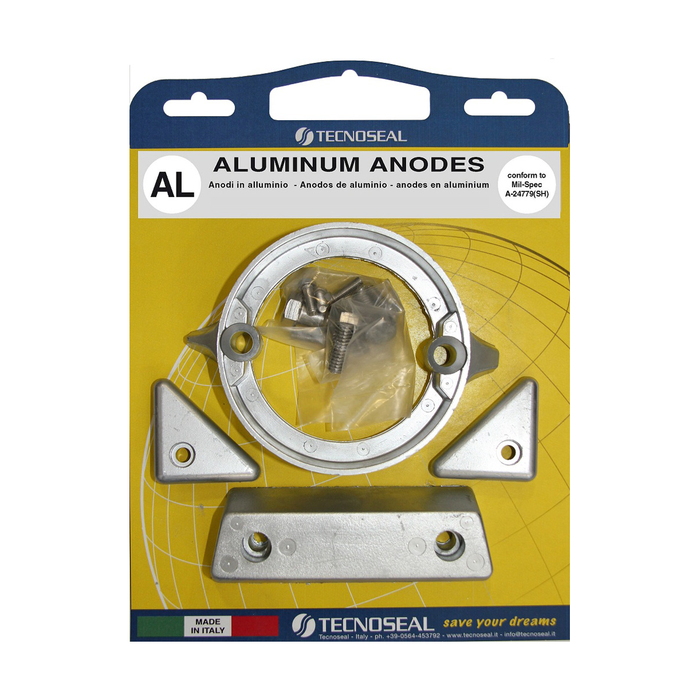

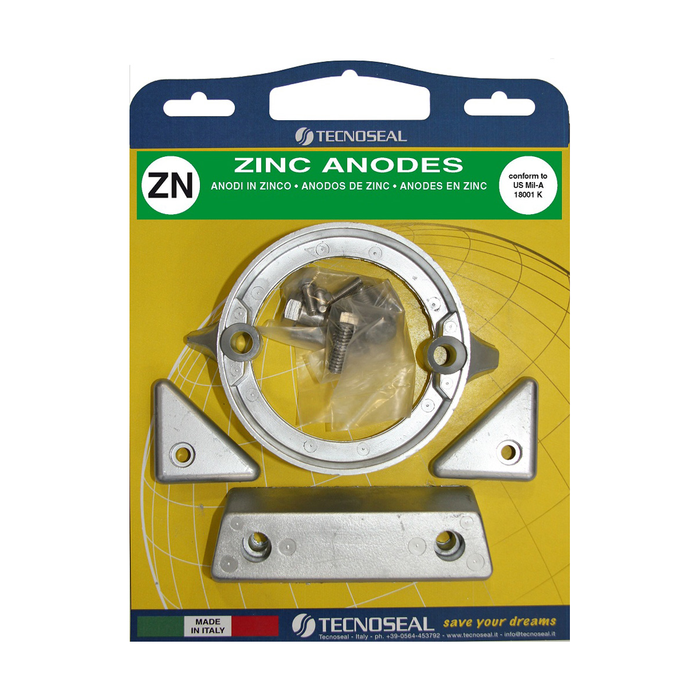

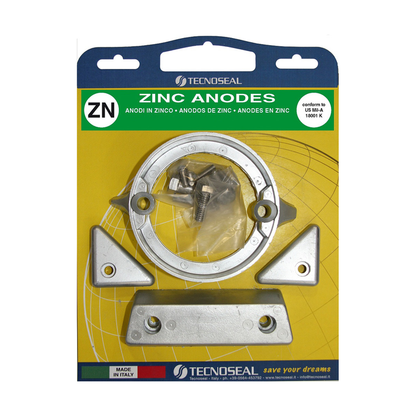

Every alloy option contains four sacrificial-anode pieces manufactured from the selected material:

• 1 × DuoProp drive ring anode: 00704BIS zinc, 00704BISAL aluminium or 00704BISMG magnesium
• 1 × transom-shield / gear-housing anode: 00708 zinc, 00708AL aluminium or 00708MG magnesium
• 2 × triangular plate anodes: 00717 zinc, 00717AL aluminium or 00717MG magnesium

All four anode pieces supplied in a selected kit are manufactured from the same alloy.

Hardware note: Tecnoseal describes kit hardware as included. Current component breakdowns identify bolts with the ring and transom-shield anodes but state that the two 00717 triangular plates are supplied without their fixing bolts. Check the selected pack contents and retain or replace the plate fasteners only where they remain serviceable and meet the Volvo Penta specification.

Key Features

• Brand: Tecnoseal
• Product category: Volvo Penta sterndrive sacrificial-anode kit
• Kit type: 290 DuoProp Series Plus / C configuration
• Manufacturer kit numbers: KITVOLVODP290-C, KITVOLVODP290-AL-C and KITVOLVODP290-MG-C
• Available alloys: Zinc, aluminium and magnesium
• Number of sacrificial-anode pieces: Four
• Anode positions: Drive ring, transom shield and two triangular plates
• Drive compatibility: Compatible Volvo Penta 290-DP and DP-series DuoProp drives
• Application: Multi-position cathodic protection for the sterndrive assembly
• Manufacture: Made in Italy by Tecnoseal

How Is the 290-C Plus Kit Different from the Standard Kit?

The standard Tecnoseal Volvo Penta 290 DuoProp kit contains one 00704BIS-series ring anode and one 00708-series transom-shield anode.

The Plus/C kit contains those two components plus two 00717-series triangular plate anodes. Select the Plus/C kit where the drive installation uses all four positions.

Which Anode Alloy Should I Choose?

• Zinc: A salt-water option where zinc is specified or where the corresponding aluminium anode is not being used.
• Aluminium: Volvo Penta's current recommended alloy for salt and brackish water.
• Magnesium: Recommended for fresh water. Magnesium should not be used in salt or brackish water because of the risk of overprotection and rapid consumption.

Use one matched alloy throughout the selected drive kit. Do not mix zinc, aluminium and magnesium components unless the vessel manufacturer or a qualified marine-corrosion specialist has specified that arrangement.

How Do I Confirm Compatibility?

Before ordering, confirm:

• The drive is a Volvo Penta DuoProp, not a single-prop 290/SP drive.
• The existing drive uses the 00704BIS-pattern ring anode.
• The transom shield uses the 00708-pattern anode.
• Two 00717-pattern triangular plates are fitted.
• The exact drive model appears within the compatible 290-DP or DP-series family.
• The selected alloy matches the vessel's operating water and wider cathodic-protection system.
• Existing mounting threads, bolts and anode seats have not been altered or damaged.

Do not select the kit solely by engine horsepower, vessel manufacturer or the general description “Volvo 290”.

Installation and Maintenance

Remove all existing anodes and clean each mounting face, fixing point and required electrical-contact surface to clean bare metal. Paint, corrosion products, grease, sealant and other insulating material can prevent the direct electrical continuity required for sacrificial protection.

Fit the ring, transom-shield anode and both triangular plates in their correct positions. Tighten the serviceable fasteners according to the Volvo Penta installation procedure and confirm that every anode is secure and electrically connected to the component it protects.

Do not paint the sacrificial castings or their contact faces. Inspect the anodes during scheduled servicing and replace them when approximately half of the original sacrificial material has been consumed, or earlier if they are cracked, loose or unevenly eroded.

Unusually fast or uneven consumption can indicate an unsuitable alloy, poor electrical continuity, bonding faults, shore-power issues or stray-current activity.

Alloy Standards and Manufacture

Tecnoseal manufactures zinc, aluminium and magnesium sacrificial anodes at its foundry in Grosseto, Tuscany. Alloy composition is checked using spectrometric testing against the applicable material specification:

• Zinc alloy: US Mil Spec A-18001K
• Aluminium alloy: US Mil Spec A24779 SH
• Magnesium alloy: US Mil Spec A21412 SH

Frequently Asked Questions

• Is this a standard 290 DuoProp kit? It is the Plus/C configuration, which adds two triangular 00717-series plate anodes to the standard ring-and-transom-shield set.
• How many anodes are included? Four pieces: one ring, one transom-shield anode and two triangular plates.
• Are all four pieces manufactured from the selected alloy? Yes. Selecting zinc, aluminium or magnesium provides a matched kit in that alloy.
• Will this fit a single-prop Volvo Penta 290 drive? No. Single-prop 290/SP drives use a different ring-anode pattern and kit configuration.
• Are all fixing bolts included? Tecnoseal describes kit hardware as included, but current component listings state that the two 00717 plates do not include their bolts. Check the pack and existing fasteners before installation.
• Can I replace zinc with aluminium? Only where aluminium is suitable for the operating water and compatible with the vessel's complete cathodic-protection system.
• Can magnesium be used in salt water? No. Magnesium can cause overprotection and extremely rapid consumption in salt or brackish water.
• Does this kit include every anode required for the boat? No. It covers the stated sterndrive positions. Separate hull, shaft, propeller or other equipment anodes may still be required.
• Can the new anodes be painted? No. Keep all sacrificial surfaces and electrical-contact faces free from paint, grease and insulating sealant.
• Why do the part numbers appear differently on some websites? Aluminium may be written as KITVOLVODP290/AL-C and magnesium as KITVOLVODP290MG-C. Check the alloy and complete kit configuration rather than relying only on punctuation.
