Tecnoseal Volvo Penta 290 Duo-Prop Anode Engine Kit

Tecnoseal Volvo Penta 290 DuoProp anode kits are complete two-piece sacrificial-anode sets for compatible Volvo Penta 290 DuoProp sterndrives. Each selected alloy kit contains one 00704BIS-series drive ring and one 00708-series transom-shield anode, with fixing hardware included. Zinc, aluminium and magnesium options are available for different operating-water requirements.

Which Drive Is This Kit For?

This kit is for compatible Volvo Penta 290 DuoProp installations using a 00704BIS-pattern ring anode around the lower drive or propeller-shaft area and a 00708-pattern bar anode on the transom shield.

It is not the correct kit for a single-prop 290/SP drive, which uses the different 00703-series lower-gear collar. It is also not the Plus/C configuration because it does not include the two additional 00717 triangular plate anodes.

What Is Included?

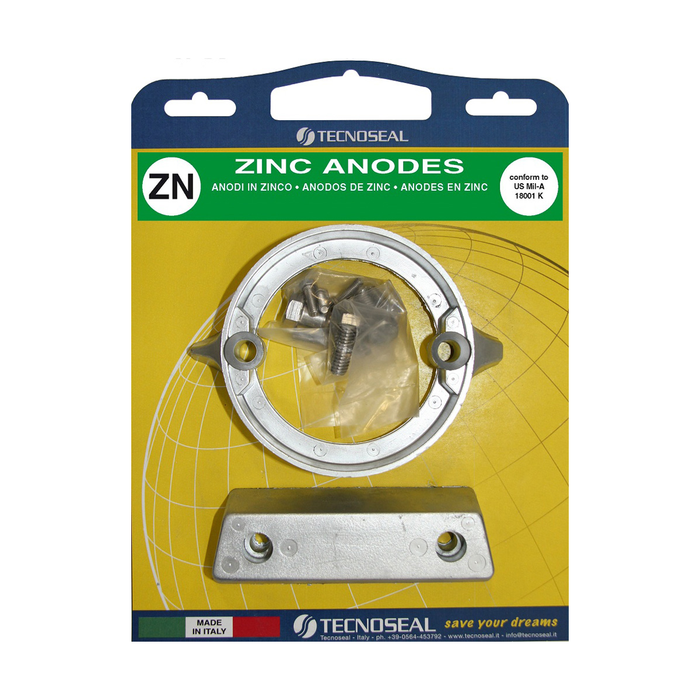

• Zinc kit: 1 × 00704BIS drive ring and 1 × 00708 transom-shield anode

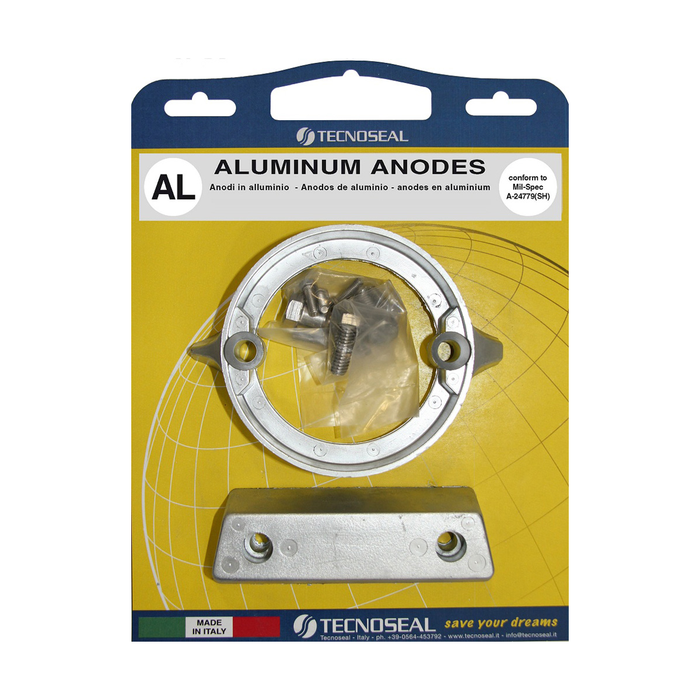

• Aluminium kit: 1 × 00704BISAL drive ring and 1 × 00708AL transom-shield anode

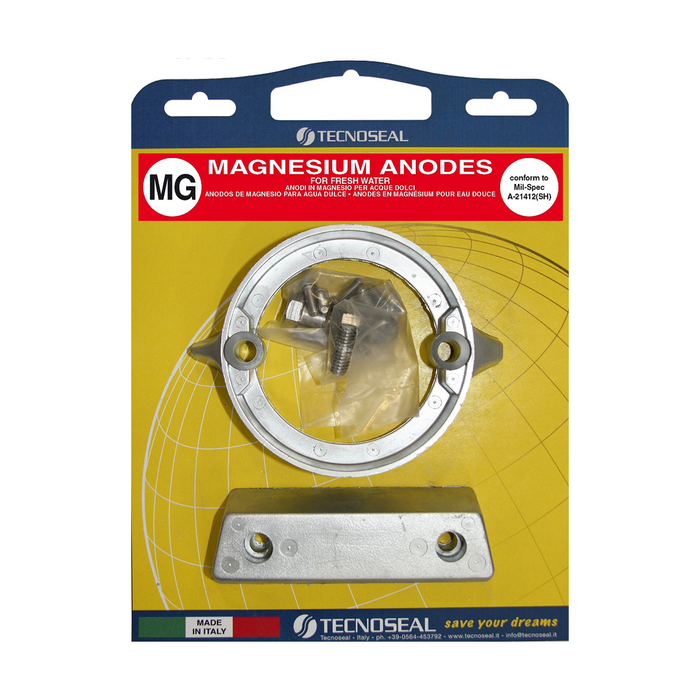

• Magnesium kit: 1 × 00704BISMG drive ring and 1 × 00708MG transom-shield anode
• Fixing hardware: Included with every kit

All components within the selected kit are manufactured from the same alloy.

Key Features

• Brand: Tecnoseal
• Product category: Volvo Penta-compatible sterndrive anode kit
• Kit configuration: Standard 290 DuoProp two-piece kit
• Manufacturer kit numbers: KITVOLVODP290, KITVOLVODP290/AL and KITVOLVODP290-MG
• Available alloys: Zinc, aluminium and magnesium
• Number of sacrificial-anode pieces: Two
• Anode positions: DuoProp drive ring and transom shield
• Fixing hardware: Included
• Application: Cathodic protection for compatible Volvo Penta 290 DuoProp sterndrives
• Manufacture: Made in Italy by Tecnoseal

How Is This Kit Different from the 290-C Plus Kit?

The standard KITVOLVODP290 configuration contains one drive ring anode and one transom-shield anode.

The KITVOLVODP290-C Plus configuration contains those two components plus two 00717-series triangular plate anodes.

Select this standard kit where only the ring and transom-shield positions require replacement. Select the Plus/C kit where the drive also uses the two triangular plates.

Which Anode Alloy Should I Choose?

• Zinc: For salt-water operation where zinc is specified or where the corresponding aluminium kit is not being used.
• Aluminium: Volvo Penta's recommended alloy for salt and brackish water.
• Magnesium: For fresh-water operation only. Magnesium should not be used in salt or brackish water because it can produce overprotection and very rapid anode consumption.

Use the alloy specified by Volvo Penta, the vessel manufacturer or the existing cathodic-protection design. Keep the selected alloy consistent with the vessel's other anodes unless qualified technical guidance specifies otherwise.

How Do I Confirm Compatibility?

• Confirm that the drive is a DuoProp, not a single-prop 290/SP drive.
• Check that the existing ring matches the 00704BIS pattern.
• Check that the transom-shield anode matches the 00708 pattern.
• Confirm that the installation does not require the two additional 00717 triangular plates.
• Select the alloy required for the operating water and existing cathodic-protection system.
• Inspect the anode seats, fixing threads and surrounding drive components for modifications or damage.

Do not select the kit solely from the boat manufacturer, engine horsepower or the general description “Volvo 290”.

Installation and Maintenance

Remove the existing ring and transom-shield anodes. Clean each mounting face, fixing point and required electrical-contact surface to clean bare metal.

Fit both replacement anodes using the included hardware and the Volvo Penta installation and tightening procedure. Confirm that each anode is secure and has direct electrical continuity with the drive component it protects.

Do not paint the sacrificial castings or their contact faces. Inspect them during scheduled servicing and replace them when approximately half of the original sacrificial material has been consumed, or earlier where an anode is cracked, loose or unevenly eroded.

Alloy Standards and Manufacture

Tecnoseal manufactures its zinc, aluminium and magnesium sacrificial anodes at its foundry in Grosseto, Tuscany. Alloy composition is checked using scheduled spectrometric measurements:

• Zinc alloy: US Mil Spec A-18001K
• Aluminium alloy: US Mil Spec A24779 SH
• Magnesium alloy: US Mil Spec A21412 SH

Frequently Asked Questions

• How many anodes are included? Two: one DuoProp ring and one transom-shield anode.
• Is fixing hardware included? Yes. Tecnoseal lists hardware as included with all three variants.
• Does this include the triangular plate anodes? No. Those are included in the separate KITVOLVODP290-C Plus kit.
• Will it fit a single-prop Volvo Penta 290 drive? No. Single-prop drives use the KITVOLVO290 configuration with a 00703-series collar.
• Are both pieces manufactured from the selected alloy? Yes. Each kit is supplied as a matched zinc, aluminium or magnesium set.
• Can different alloys be mixed on the drive? Use one consistent alloy strategy unless Volvo Penta or a qualified marine-corrosion specialist specifies otherwise.
• Does this kit include every anode on the boat? No. Separate hull, shaft, propeller or other equipment anodes may still be required.
• Can the new anodes be painted? No. Sacrificial and electrical-contact surfaces must remain free from paint, grease and insulating sealant.
