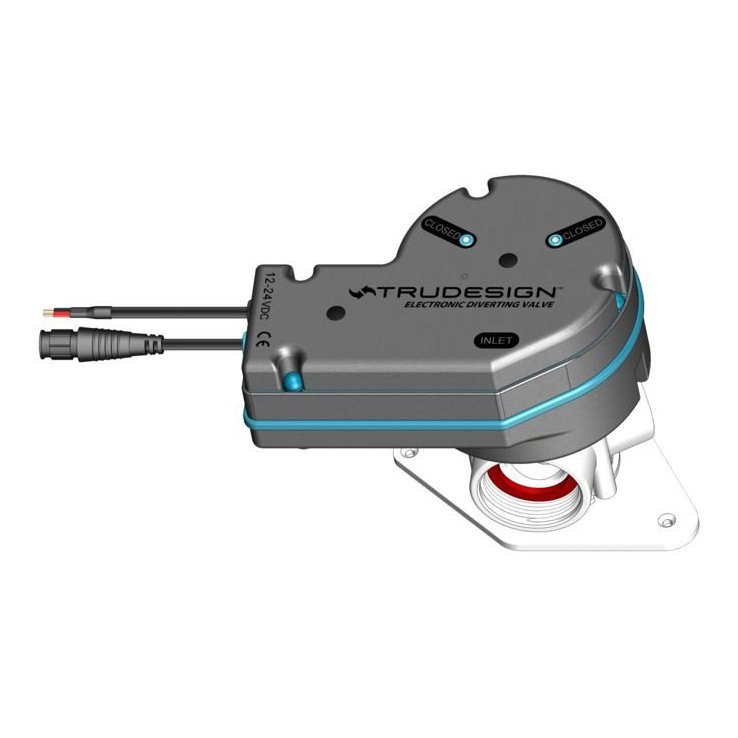

TruDesign Electronic Diverter Valve Y Valve

The success of the Manual Aquavalve (Y Valve) and positive response from the marine industry led our design team to develop the Electronic Diverter Valve, which has become a problem solver for many modern marine plumbing installations.

The TruDesign Electronic Diverter Valve allows the diverting valve to be operated from a bridge with the push of a button on the supplied control panel. The indicators on the control panel show the current position of the valve. The valve has two positions 'holding tank' or 'overboard'.

Features:

• Electronic activation of the Diverter Valve from control panel
• Lock function to "overboard" or "holding tank"
• Clear indication on control panel as to current valve position
• Versatility of installation with a vast range of hose and bend adapters
• Compatible with Manual Aquavalve adapters
• Stainless steel fastenings
• Each valve seal tested to check no o’ring leakage
• Valves are individually tested on assembly to 10 PSI
• Duel Voltage - 12 volt DC or 24 Volt DC input

TruDesign Part Number: 91278
