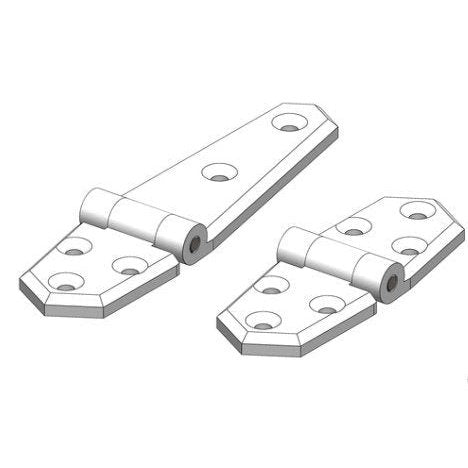

TruDesign Nylon Hinge Pair

Designed and made in New Zealand, Tru-Design Hinges are moulded from a glass reinforced nylon composite.

High strength, high-modulus glass fibres impregnated into the nylon provides dramatic strength, stiffness, toughness, and dimensional stability. A stainless steel pin links the two hinges.

• Manufactured from a glass reinforced nylon composite - High strength and light weight
• Long tail feature - The use of 2 hose clamps is recommended for secure hose fitting
• Immune to corrosion and electrolysis - Long life with no concerns
• Chemical resistant - Impervious to diesel, petrol and antifouling paints
• UV resistant - These fittings will not break down with ultraviolet light or discolour from the sun
• High quality surface finish - Will not discolour with green film as similar bronze fittings do

Specifications

Short

Split -86mm / 48mm
Leaf Thickness -6mm
Barrel Height -13mm
No. Mount Holes -6
Mount Screws -4.5mm c/s

Long

Split -86mm / 48mm
Leaf Thickness -6mm
Barrel Height -13mm
No. Mount Holes -5
Mount Screws -4.5mm c/s
