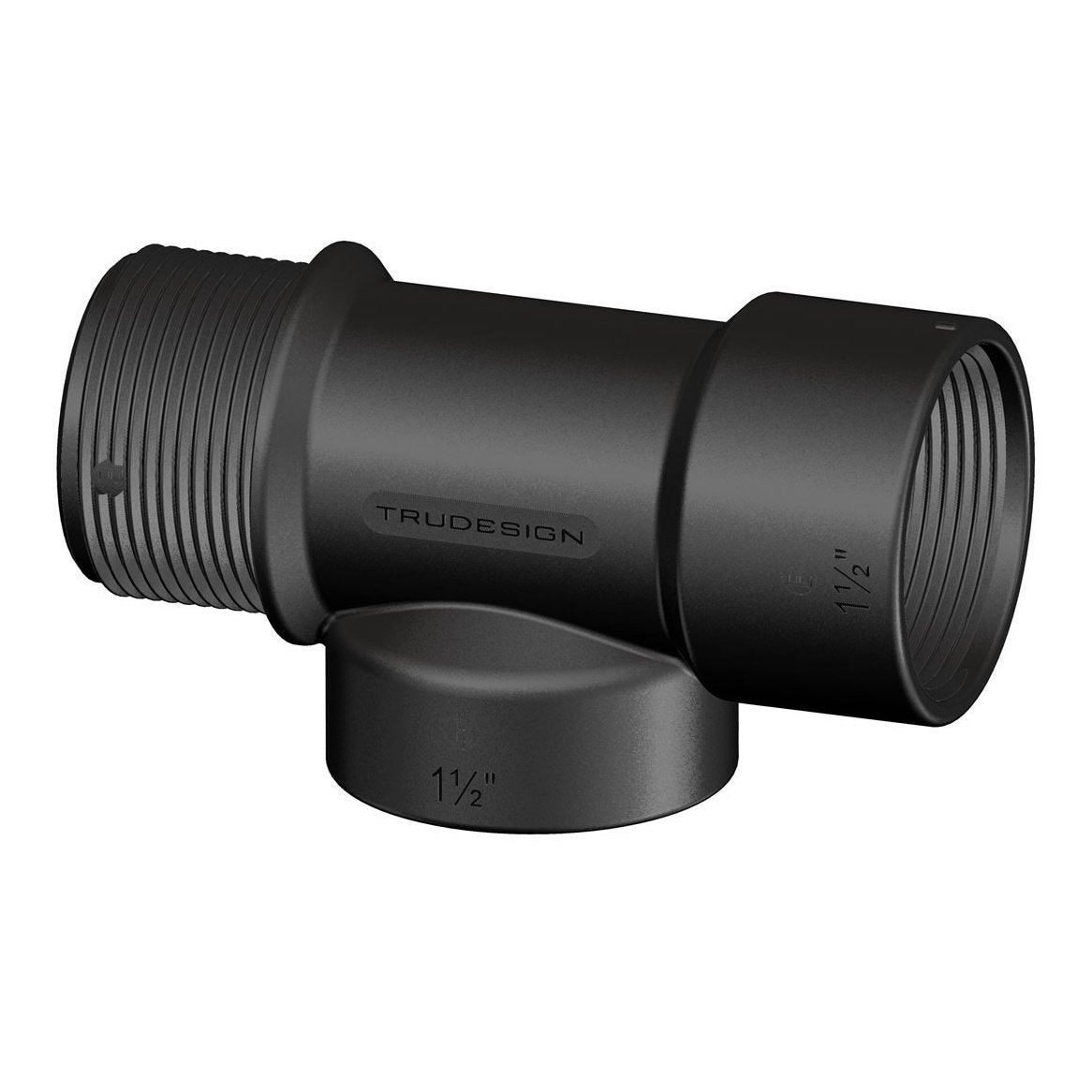

TruDesign T-Piece Threaded 1 1/2" Inch BSP M-F-F

TruDesign T-Piece Threaded 1 1/2" Inch BSP M-F-F

Location:

SKU:MZ-58253

Regular price £11.95
Regular price Sale price £11.95
Sale Sold out
Tax included. Shipping calculated at checkout.

The 1½" Threaded T-Piece features 2x Female threads and 1x Male thread enabling them to be joined together to create manifolds - useful for multiple hose connections to a single Ball Valve & Thru-hull fitting.

The centre female thread is shorter and designed for use with Aquavalve Tails (Straight, 90°, and 120°) giving the option of tail sizes from 19mm up to 38mm. The Plug, or Threaded Connector can also be used in the centre connection.

NOTE: all Aquavalve Tails that are used with the T-Piece do not face-seal using the Red or Blue washer as they do when used in Aquavalves. Instead, use a suitable thread sealant or PTFE tape to seal threads.
The 1½" Male and Female threads at each end are also parallel and are also designed to seal through the use of a suitable sealant or PTFE tape allowing any orientation of the two joined parts. Do not overtighten!

  • Manufactured from a glass reinforced nylon composite - High strength and light weight
  • Immune to corrosion and electrolysis - Long life with no concerns over decreased performance due to corrosion
  • Chemical resistant - Impervious to diesel, petrol and antifouling paints
  • UV resistant - Will not break down with ultraviolet light or discolour from the sun
  • High quality surface finish - Will not discolour with green film as similar bronze fittings do
  • Large operating temperature range - Suitable for all marine environments, from -40°C to +110°C

TruDesign Part Number: 90893
