Ultraflex Complete Light Duty Steering Kit

The Ultraflex T67/T67W Complete Mechanical Steering Kit combines a T67-series rotary helm, black or white 90° bezel, an M58 steering cable in the selected length and a black V38B 350mm steering wheel. Designed for light-duty single-outboard installations up to 40kW / 55HP, the matched kit provides a 230mm cable stroke and approximately 2.5 steering-wheel turns lock-to-lock.

Product Identification

• Brand: Ultraflex
• Product category: Complete mechanical marine steering kit
• Steering-system type: Light-duty single-cable rotary steering
• Black-bezel option: T67, part number 35809J
• White-bezel option: T67W, part number 37925M
• Steering cable: Ultraflex M58, selected length
• Steering wheel: Ultraflex V38B
• Steering-wheel part number: 36517Q
• Steering-wheel diameter: 350mm / 13.8in
• Application: Single-outboard powerboats up to 40kW / 55HP
• Maximum boat speed: 50 knots / 57.5mph

Which Kit Options Are Available?

Choose the helm-bezel colour and required M58 cable length:

• Black-bezel kit: Ultraflex T67 35809J, selected M58 cable and V38B 36517Q black steering wheel
• White-bezel kit: Ultraflex T67W 37925M, selected M58 cable and V38B 36517Q black steering wheel

Both options use the same helm design, M58 cable and V38B steering wheel. Only the bezel colour changes.

The steering wheel is black in both kit options. The white-bezel kit does not include a white steering wheel.

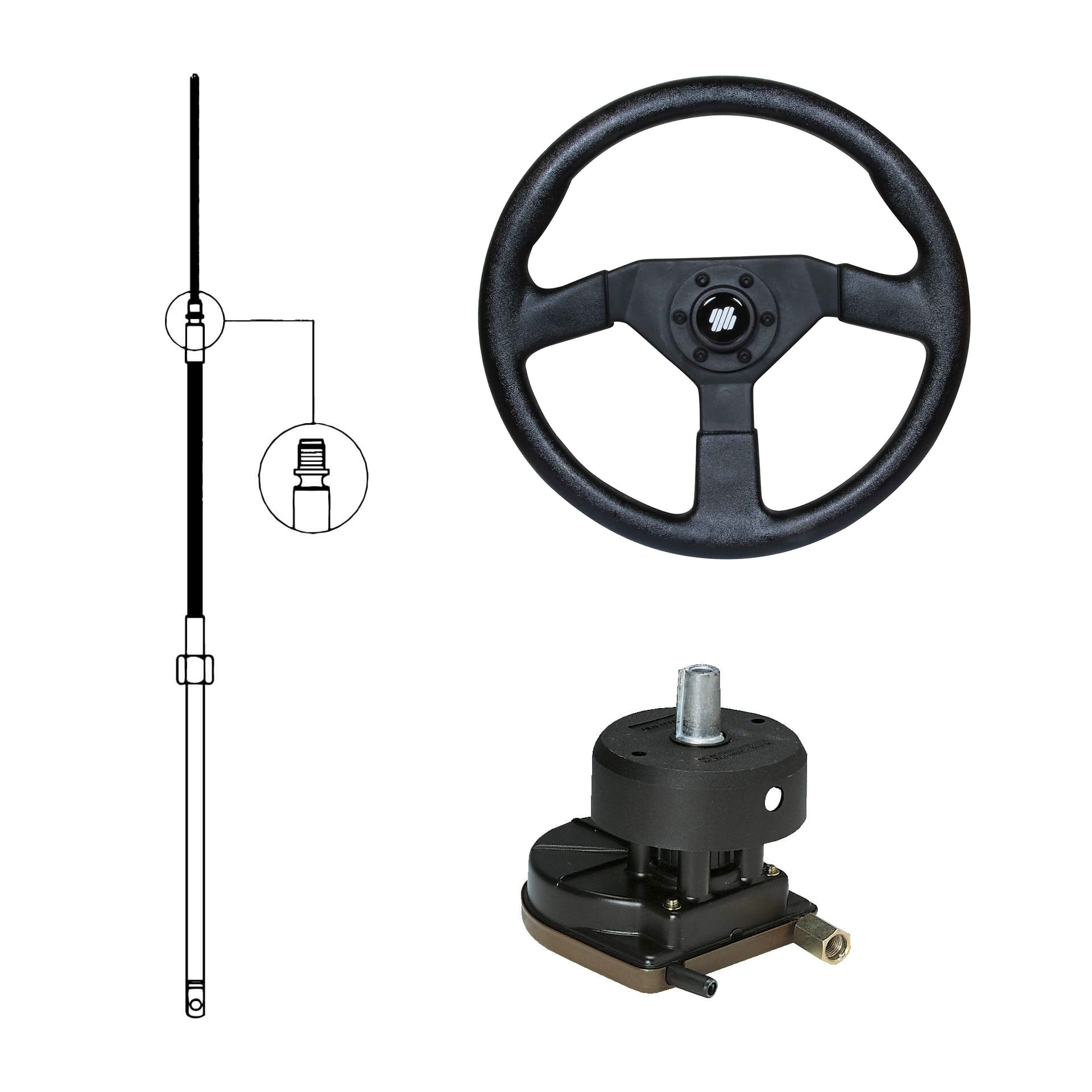

What Is Included in the Complete Steering Kit?

• One Ultraflex T67-series mechanical rotary steering helm
• Standard externally adjustable friction control
• One 90° dashboard bezel in black or white
• One Ultraflex M58 mechanical steering cable in the selected length
• One Ultraflex V38B 36517Q black composite steering wheel
• Standard 19mm / 3/4in tapered steering-wheel hub
• Black steering-wheel centre cap

This package supplies the primary steering-control components from the steering wheel through to the engine-side cable output.

What Is Not Included?

• Engine-specific steering connection kit or drag link
• Spoil tube
• Additional dashboard mounting hardware not supplied with the individual components
• Engine-side fittings required for a particular outboard installation

Check the boat and outboard engine before ordering to establish whether any engine-specific connection components are required.

What Is This Complete Steering Kit Used For?

The Ultraflex T67 helm converts rotation from the included V38B steering wheel into push-pull movement through the M58 steering cable. The cable transfers this movement to the outboard engine steering assembly.

The kit is designed for:

• Small powerboats
• Single-outboard installations
• Outboard engines up to 40kW / 55HP
• Boats operating at no more than 50 knots / 57.5mph
• Light-duty single-cable mechanical steering
• Dashboards requiring a 90° helm and bezel installation

The complete installation must remain within the lowest power and speed ratings specified for the boat, engine and steering components.

Does the V38B Steering Wheel Fit the T67 Helm?

Yes. The Ultraflex V38B is supplied with a standard 19mm / 3/4in tapered hub for compatible marine steering-helm shafts.

The T67 permits a maximum steering-wheel diameter of 380mm / 15in. The included V38B measures 350mm / 13.8in, placing it within the specified diameter limit.

The wheel has an overall depth of 85mm / 3.3in. Check dashboard, instrument and control clearance before installation.

Does the M58 Cable Need an Adaptor?

No adaptor is required between the included T67 or T67W helm and the Ultraflex M58 steering cable.

The M58 connects directly to the helm using its 7/8in UNF threaded connection nut. The cable is available in one-foot length increments so the appropriate length can be selected for the boat.

Is the Kit Suitable for an Evinrude E-TEC 50?

No. Ultraflex excludes the Evinrude E-TEC 50 from the normal T67 application range.

For an Evinrude E-TEC 50 installation, Ultraflex recommends one of the following alternative steering systems:

• Ultraflex T85
• Ultraflex T71FC
• Ultraflex T91

Confirm the correct helm, cable and engine connection before installing a steering system on this engine.

Steering-System Performance

• Maximum engine power: 40kW / 55HP
• Maximum boat speed: 50 knots / 57.5mph
• Cable stroke: 230mm / 9in
• Steering-wheel movement: Approximately 2.5 turns lock-to-lock
• Included wheel diameter: 350mm / 13.8in
• Maximum permitted wheel diameter: 380mm / 15in
• Minimum cable bend radius: 200mm / 7.9in
• Helm installation angle: 90°
• Cable configuration: Single mechanical steering cable
• Friction control: Standard and externally adjustable
• Cable-routing positions: Four alternative helm positions

The four helm positions allow the M58 cable to exit in the most suitable direction for the available space behind the dashboard.

How Do You Select the Correct M58 Cable Length?

For replacement installations:

1. Measure the black outer jacket of the existing steering cable, identified as measurement D in the cable-measuring diagram.
2. Do not include the exposed steering rod, threaded nut or metal end fittings.
3. Add 2ft, approximately 610mm, to the measured outer-jacket length.
4. Select the corresponding M58 cable length in feet.
5. Where the result falls between two available lengths, select the next longer whole-foot cable.

Replacement cable formula: Required M58 cable length = D + 2ft.

Example: If the existing black outer cable jacket measures 10ft, add 2ft and select a 12ft M58 cable.

This method is intended for replacing an existing steering cable. For a new installation, measure the complete planned cable route through the boat and allow sufficient length for gradual bends and engine movement.

V38B Steering-Wheel Construction

• Three-spoke sports-wheel design
• Composite marine construction
• Anti-shock thermoplastic grip and spokes
• Soft polyurethane outer rim
• Dished circular profile
• Black grip, spokes and centre cap
• Standard 19mm / 3/4in tapered hub
• 350mm / 13.8in overall diameter
• 85mm / 3.3in overall depth
• Hub and centre cap included

The V38B is supplied in black only.

Helm and Cable Construction

• Compact mechanical rotary helm
• Corrosion-resistant helm materials
• Standard externally adjustable friction control
• Four alternative cable-routing positions
• Stainless-steel M58 engine-side output end
• 7/8in UNF cable connection nut
• 230mm / 9in cable stroke
• Minimum cable bend radius of 200mm / 7.9in

Standards and Certifications

• T67/M58 steering system: Exceeds EN 29775 requirements
• M58 cable output end: Manufactured in accordance with ABYC P17
• V38B steering wheel: Meets EN 28848, EN 29775 and ABYC P22
• V38B certification markings: CE, NMMA and UKCA

Installation Notes

Maintain a minimum M58 cable bend radius of 200mm / 7.9in throughout the installation. Avoid sharp bends, crushed cable sections, unsupported runs and contact with hot or moving engine components.

Confirm that:

• The engine does not exceed 40kW / 55HP
• The boat does not exceed 50 knots / 57.5mph
• The selected M58 cable is the correct length
• The wheel clears the dashboard, instruments and controls
• The steering wheel seats securely on the 19mm / 3/4in tapered shaft
• The cable can move through its full stroke without binding
• The engine can move through its complete steering range
• All shaft keys, retaining hardware and engine connections are serviceable

Marine steering is a safety-critical system. Installation and servicing should follow the current Ultraflex instructions and be completed by a suitably competent marine technician.

Key Features

• Complete matched helm, bezel, cable and steering-wheel kit
• Choice of black T67 or white T67W 90° bezel
• T67 black-bezel part number 35809J
• T67W white-bezel part number 37925M
• Ultraflex M58 cable supplied in the selected length
• Ultraflex V38B 36517Q steering wheel included
• Black 350mm / 13.8in three-spoke steering wheel
• Standard 19mm / 3/4in tapered wheel hub
• Hub and black centre cap included
• Suitable for single outboards up to 40kW / 55HP
• Maximum boat speed of 50 knots / 57.5mph
• 230mm / 9in steering-cable stroke
• Approximately 2.5 turns lock-to-lock
• Maximum permitted wheel diameter of 380mm / 15in
• Minimum cable bend radius of 200mm / 7.9in
• Externally adjustable helm-friction control
• Four alternative helm positions for cable routing
• Stainless-steel M58 cable output end
• No adaptor required between the T67 helm and M58 cable
• T67/M58 system exceeds EN 29775
• Engine-specific steering connection components not included
• Not recommended for the Evinrude E-TEC 50
