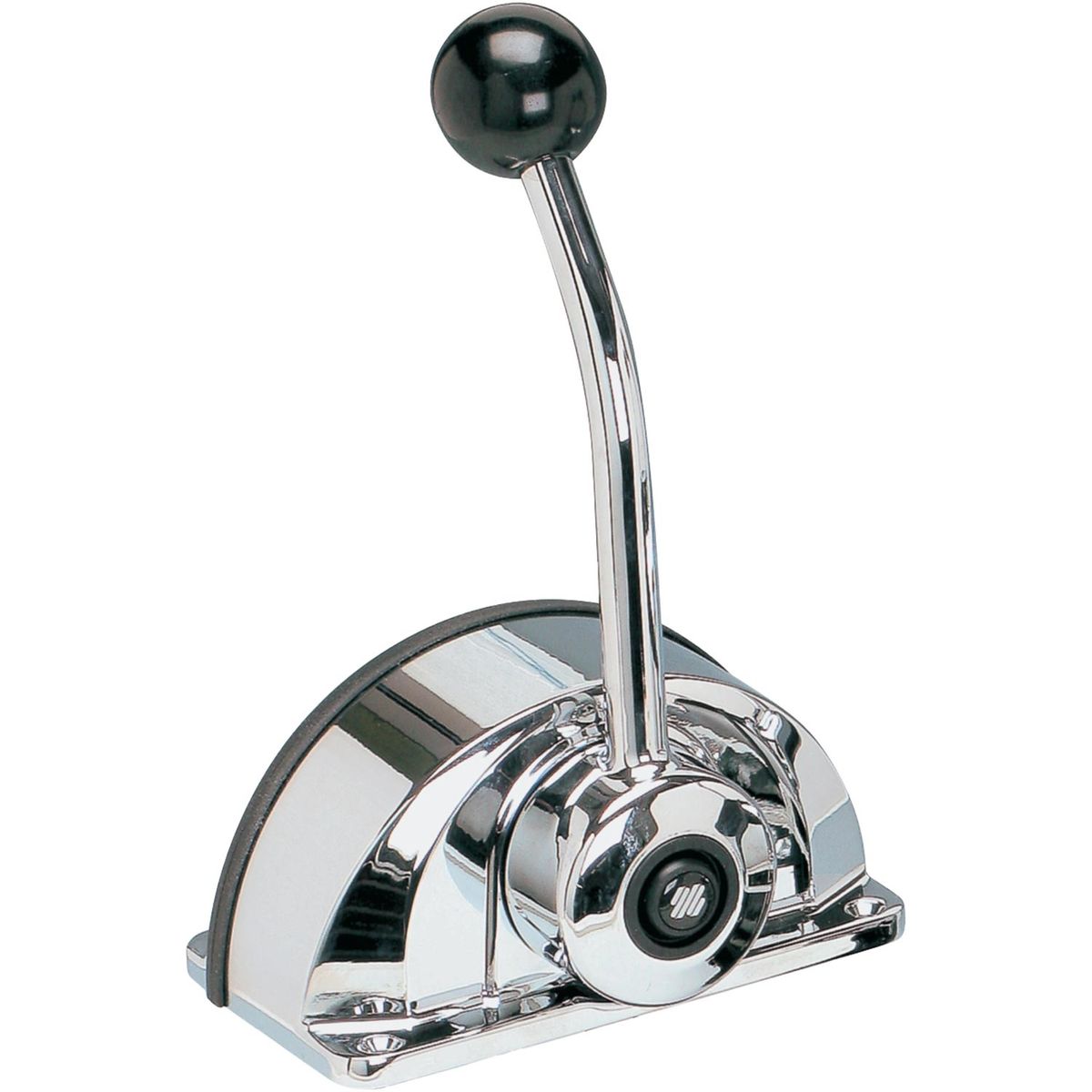

Ultraflex B301 Low Profile Single Lever Top Mount Control
Ultraflex B301 Low Profile Single Lever Top Mount Control
No reviews
Location:
Get 10% Off Everything*, Use Coupon Code SALE10 *Excludes Liferafts & Windlasses
SKU:AF-4-B301B
Regular price
£299.95
Regular price
Sale price
£299.95
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Ultraflex single lever controls offering a unique low profile style compared to others available on the market. Enables easy and safe shifting by preventing accidental gear engagement unless engine is idling.
- Enables easy and safe shifting by preventing accidental gear engagement unless engine is idling
- Made of marine aluminum, chrome plated or black powder coat finish
- Push in button disengages shift for engine warm-up
- Neutral safety switch X12 – 34543Q (optional) prevents in-gear starting
- Exceeds EN ISO 11547 standards when X12 safety switch is installed
For use with all Ultraflex control cables
- C14 and MACH14 cables require no kit
- C2, C8 and MACHZero cables the connection kit K59 – 40144C is included
- C5, C16 and MACH5 cables require K60 Kit – 40145E
- C36 and MACH36 cables require K62 Kit – 40157J
- C22 cable requires K61 Kit – 40146G
| Lever | Single Lever |
| Lever Control | Dual Action Control |
| Assembly | Top Mount |
| Application | inboard |
| Material | Marine Aluminium |
| Colours | Chromed housing & Lever; black powder coat finish housing & chromed lever; |
| Version | Fully mechanical |
| Adjustable friction | Provided |
| Push in button (wam-up) | Provided |
| Positive lock-in neutral | Not Provided |
| Power trim switch | Not Provided |
| X12 Neutral Safety Switch | Optional |
| EN ISO 11547 | Yes, when X12 safety switch is installed |
| Control cables | C14, MACH14 |
| Control cables that require a connection kit | C2, C8, MACHZero (K59); C5, C16, MACH5 (K60); C36, MACH36 (K62); C22 (K61); |
