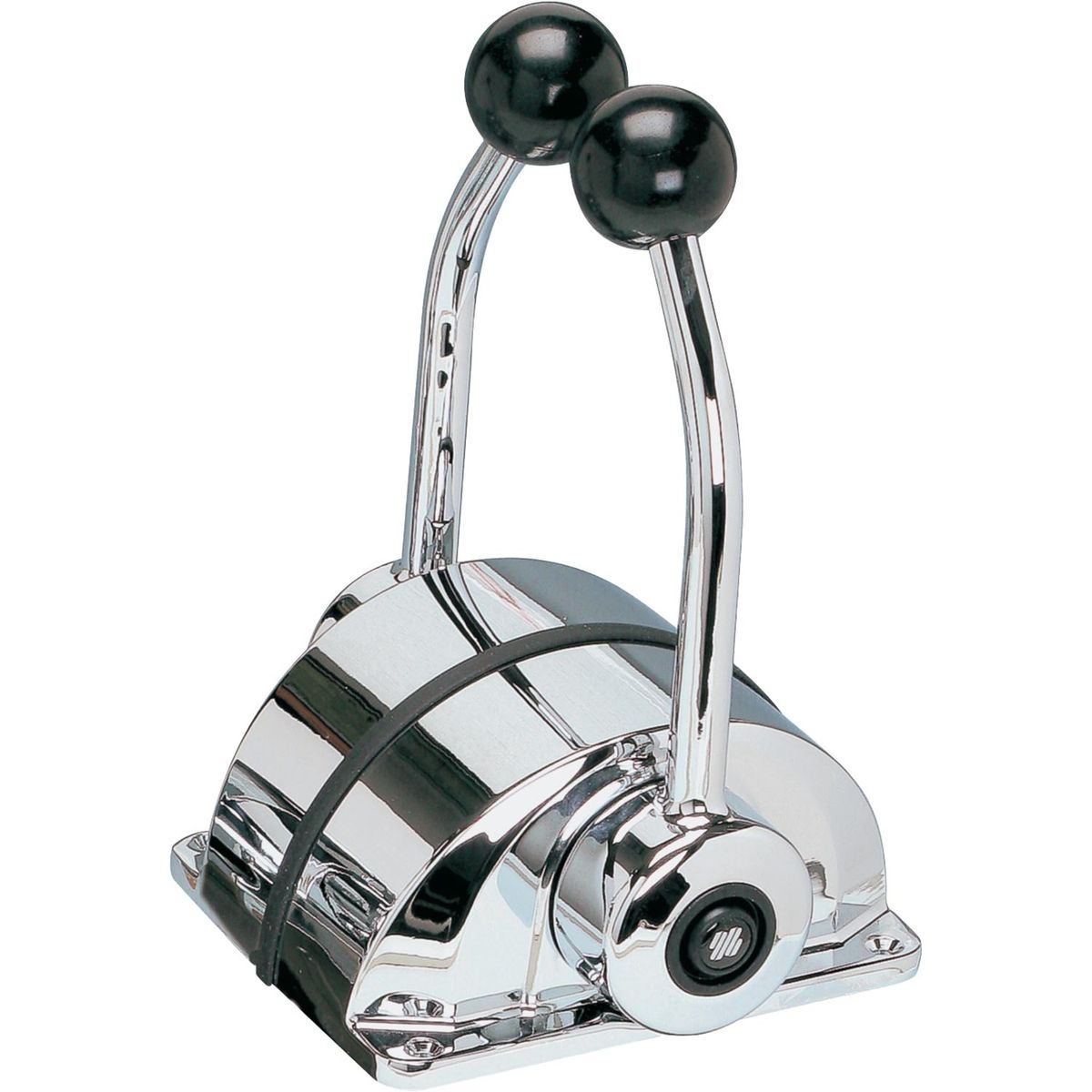

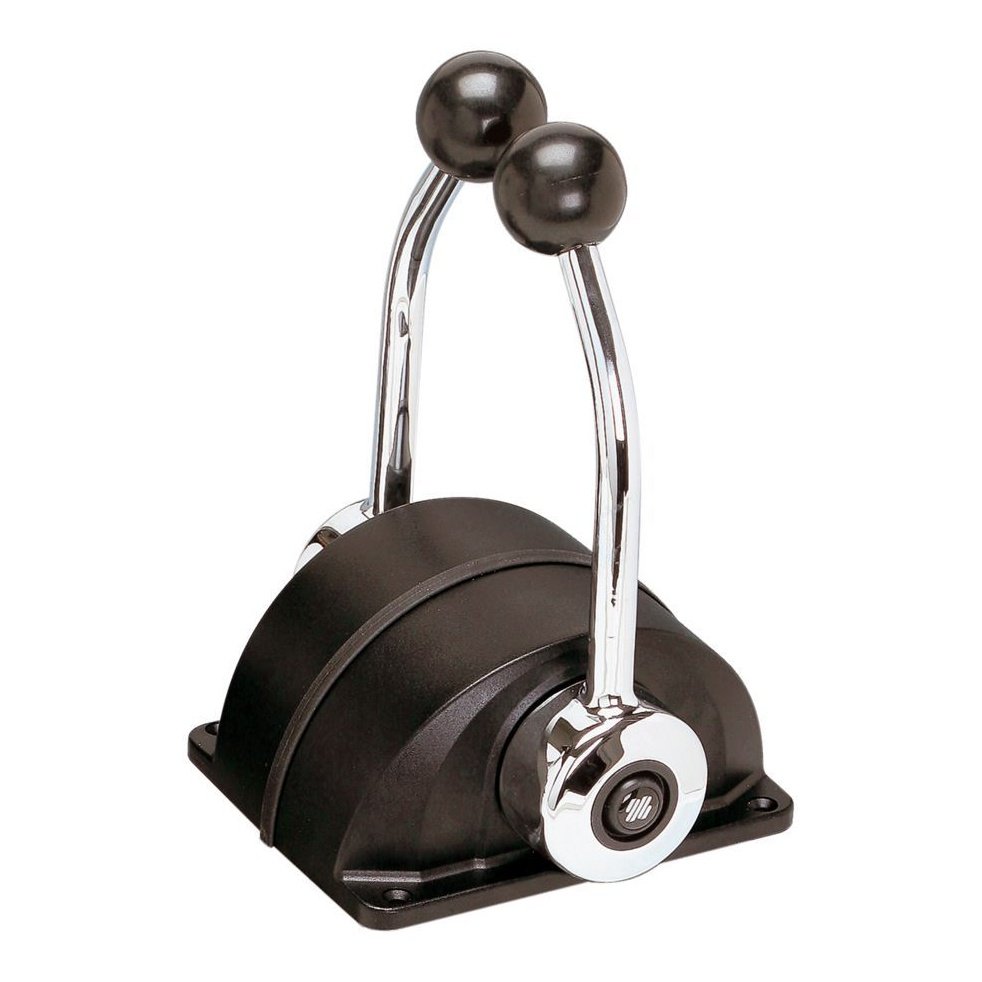

Ultraflex B302 Low Profile Twin Lever Top Mount Control
Ultraflex B302 Low Profile Twin Lever Top Mount Control
No reviews
Location:
Get 10% Off Everything*, Use Coupon Code SALE10 *Excludes Liferafts & Windlasses
SKU:AF-4-B302B
Regular price
£511.95
Regular price
Sale price
£511.95
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Compact single lever controls offering a unique low profile style compared to other controls available on the market
Single lever for 2 engines / dual action control to operate both throttle and shift.
Suitable for any type of boat with inboard engine
- Enables easy and safe shifting by preventing accidental gear engagement unless engine is idling
- Made of marine aluminum
- Push in button disengages shift for engine warm-up
- Neutral safety switch X12 – 34543Q (optional) prevents in-gear starting
- Exceeds EN ISO 11547 standards when X12 safety switch is installed
For use with all Ultraflex control cables except C4.
- C14 & MACH14 cables require no kit.
- C2,C8 & MACH5 cables the connection kit is included.
- C5,C16 & MACH5 cables require 4-K60 Kit.
- C36 & MACH36 cables require 4-K62 Kit.
- C22 cable requires 4-K61 kit.
| Lever | Twin lever for two engines |
| Lever Control | Dual Action Control |
| Assembly | Top Mount |
| Application | inboard |
| Material | Marine Aluminium |
| Version | Fully mechanical |
| Adjustable friction | Provided |
| Push in button (wam-up) | Provided |
| Positive lock-in neutral | Not Provided |
| Power trim switch | Not Provided |
| X12 Neutral Safety Switch | Optional |
| EN ISO 11547 | Yes, when X12 safety switch is installed |
| Control cables | C14, MACH14 |
| Control cables that require a connection kit | C2, C8, MACHZero (K59); C5, C16, MACH5 (K60); C36, MACH36 (K62); C22 (K61); |
