Ultraflex OB/M-60 Outboard Hydraulic Steering Hose Kit With Hose Ends

The Ultraflex KIT OB/M-60 41708E is a cut-to-length hydraulic steering hose kit for compatible single-station Ultraflex systems with a maximum 70-bar / 1000psi relief-valve pressure. It contains two 6m / 19.7ft high-pressure hoses with a 5/16in internal diameter. Each hose has a swivel-nut fitting preassembled at one end, with two loose reusable OB-F5/16 fittings and two reinforcing sleeves supplied for the shortened ends.

Special-order notice: Theese  are special-order products and are subject to a supplier lead time. Contact us for the current estimated lead time before ordering. These models should not be ordered on the assumption of immediate dispatch.

Product Identification

• Brand: Ultraflex
• Product range: KIT OB/M
• Product category: Marine hydraulic steering hose kit
• Model: KIT OB/M-60
• Manufacturer part number: 41708E
• Supplier catalogue code: 4-47048
• Application: Compatible Ultraflex 70-bar hydraulic steering systems
• Steering configuration: Single station
• Number of hoses: Two
• Length of each hose: 6m / 19.7ft
• Hose internal diameter: 5/16in
• Maximum system relief-valve pressure: 70 bar / 1000psi
• Preassembled fittings: One swivel-nut fitting on one end of each hose
• Loose fittings supplied: Two reusable OB-F5/16 fittings
• Loose fitting part number: 40849U
• Reinforcing sleeves supplied: Two
• Cut-to-length installation: Yes
• Minimum bend radius: 250mm / 9.8in
• GoTech compatibility: No
• SilverSteer compatibility: No
• MasterDrive compatibility: Not recommended; use the specified dedicated hose kit

What Is This Hydraulic Hose Kit Used For?

The Ultraflex OB/M-60 connects a compatible hydraulic steering helm to a hydraulic cylinder in a single-station marine steering system.

The two hoses carry hydraulic fluid between the helm and cylinder. Turning the steering wheel sends pressurised fluid through one hose while displaced fluid returns through the other.

The kit is intended for:

• Compatible Ultraflex 70-bar / 1000psi steering systems
• Single-steering-station installations
• Systems requiring 5/16in hydraulic hose
• New hydraulic steering installations
• Replacement of an existing compatible OB/M hose pair
• Installations where the supplied 6m hoses need to be shortened
• Compatible HyTech, Hyco and other standard Ultraflex hydraulic configurations where KIT OB/M is specified

The hose kit must be selected as part of the complete helm, cylinder and hose specification. It does not independently determine engine horsepower, rudder torque or steering-system capacity.

What Is Included?

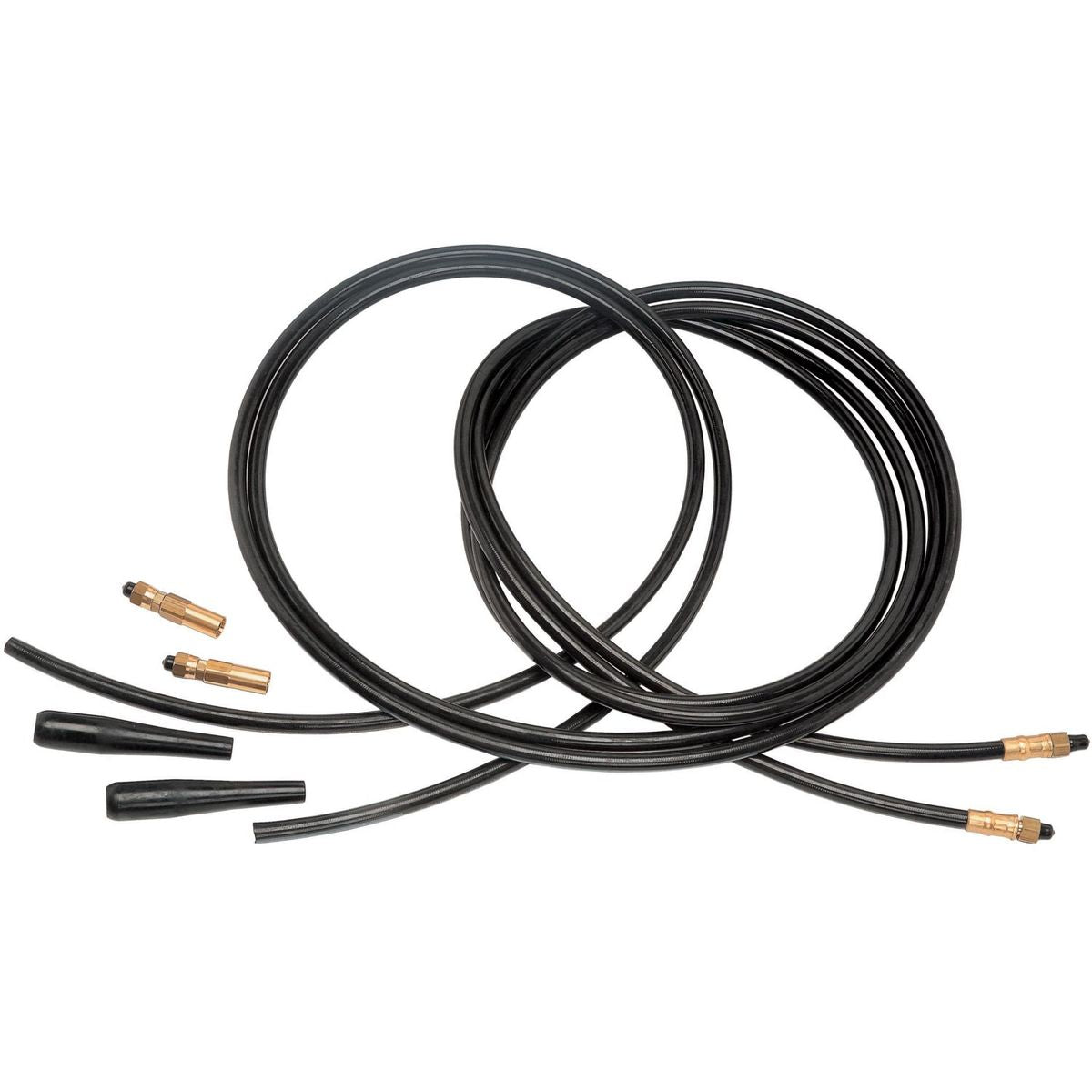

The Ultraflex KIT OB/M-60 is supplied with:

• Two high-pressure flexible hydraulic hoses
• 6m / 19.7ft length per hose
• One swivel-nut fitting preassembled on one end of each hose
• Two loose reusable Ultraflex OB-F5/16 fittings
• Two reinforcing or anti-kink sleeves
• Reusable fitting part number 40849U

Not included:

• Hydraulic steering helm
• Hydraulic steering cylinder
• Hydraulic steering oil
• Steering wheel
• Bulkhead or through-hull fittings
• Additional reusable fittings
• Filling or bleeding kit
• Additional steering-station hoses
• Installation tools

The reusable fittings and sleeves are installed on the shortened, unassembled ends of the hoses.

Which Steering Systems Are Compatible?

The OB/M-60 is designed for compatible Ultraflex single-station hydraulic steering systems with a maximum 70-bar / 1000psi relief-valve pressure.

Before ordering, confirm:

• The helm and cylinder are approved for use together
• The steering system specifies KIT OB/M or 5/16in hydraulic hose
• The relief-valve setting does not exceed 70 bar / 1000psi
• The installation uses one steering station
• Two 6m hoses provide sufficient routed length
• The system accepts OB-F5/16 reusable fittings
• The installation does not require an R5 through-hull hose kit
• The hose route can maintain the 250mm minimum bend radius

The OB/M-60 is not suitable for:

• Ultraflex GoTech systems
• SilverSteer systems
• MasterDrive systems requiring a dedicated OB-MD hose kit
• Systems with a relief-valve pressure above 70 bar / 1000psi
• Multi-station systems without the additional approved plumbing
• Systems requiring 1/4in, 3/8in or Kevlar-reinforced hose
• Steering systems from another manufacturer unless compatibility is explicitly confirmed

Ultraflex publishes dedicated hose families for GoTech, SilverSteer and MasterDrive systems. The OB/M-60 must not be used as a universal substitute.

What Is the Difference Between OB/M-60 and OB-GT/M-60?

The two hose kits have different diameters, fittings and system ratings.

KIT OB/M-60:

• Compatible with correctly specified standard 70-bar systems
• Maximum relief-valve pressure of 70 bar / 1000psi
• 5/16in hose internal diameter
• Uses OB-F5/16 reusable fittings
• Reusable fitting part number 40849U
• Includes two reinforcing sleeves
• Not intended for GoTech systems

KIT OB-GT/M-60:

• Restricted to GoTech steering systems
• Maximum relief-valve pressure of 55 bar / 800psi
• 1/4in hose internal diameter
• Uses OB-F1/4 reusable fittings
• Reusable fitting part number 42656T
• Reinforcing sleeves are not supplied

The OB-GT/M-60 must not be used in place of the OB/M-60 in a 70-bar system. Its hose diameter and maximum permitted pressure are lower.

Can the Hoses Be Cut to Length?

Yes. The unassembled end of each 6m hose can be shortened to fit the boat.

Only approved Ultraflex OB-F5/16 40849U reusable fittings and the correct reinforcing sleeves may be used after cutting.

Before cutting:

• Measure the complete installed hose route
• Leave the factory-assembled end unchanged
• Allow for smooth routing around the boat
• Maintain the 250mm minimum bend radius
• Allow movement at the steering cylinder
• Leave enough length for maintenance and reconnection
• Ensure the hoses will not become tight at either steering limit
• Check both hoses before making either cut

Do not cut a hose until the complete route has been confirmed.

The reusable fittings and sleeves must be installed exactly as described in the Ultraflex fitting manual. Do not use substitute fittings, generic hose ends or improvised clamps.

Dimensions and Fitment

• Number of hoses: Two
• Length per hose: 6m / 19.7ft
• Hose internal diameter: 5/16in
• Minimum bend radius: 250mm / 9.8in
• Preassembled ends: One per hose
• Installer-assembled ends: One per hose
• Reusable fitting type: OB-F5/16
• Reusable fitting part number: 40849U
• Reinforcing sleeves: Two included
• Steering configuration: Single station
• Maximum system pressure: 70 bar / 1000psi

The hoses must not be bent more tightly than the stated radius. Internal hose damage may occur even where the external cover does not appear broken.

Pressure Rating and System Limits

The OB/M-60 is manufactured for steering systems with a maximum relief-valve pressure of:

• 70 bar
• 1000psi

This is the limiting condition of use, not the normal continuous operating pressure.

The hose rating does not increase the permitted pressure of the helm, cylinder or fittings. The lowest-rated component controls the complete system limit.

The OB/M-60 should not be used with:

• GoTech 55-bar systems
• SilverSteer systems
• MasterDrive systems where KIT OB-MD is specified
• Any system exceeding 70 bar / 1000psi

Construction and Design

• Two flexible high-pressure hydraulic hoses
• 5/16in internal hose diameter
• One factory-installed swivel-nut fitting per hose
• Two loose reusable OB-F5/16 fittings
• Two reinforcing sleeves
• Cut-to-length installation
• 70-bar / 1000psi maximum system rating
• Single-station configuration
• Designed for compatible Ultraflex hydraulic steering systems
• Manufactured for marine steering applications

The reinforcing sleeves are fitted at the installer-assembled ends to support the hose where it enters the reusable fitting.

Installation and Use

Hydraulic steering installation should be completed by a competent marine technician.

Before installation:

• Confirm the exact helm and cylinder models
• Verify that the system specifies 5/16in KIT OB/M hose
• Confirm the relief-valve pressure
• Inspect the hoses, fittings and sleeves
• Measure the complete installed route
• Check that a 250mm minimum bend radius can be maintained
• Allow for steering-cylinder or engine movement
• Protect the hose interiors from contamination
• Obtain the Ultraflex hose and fitting instructions

During installation:

• Keep hoses away from heat and exhaust components
• Avoid sharp edges and abrasion points
• Do not route hoses where they may be crushed
• Do not pull either hose tight
• Retain the factory-assembled end of each hose
• Cut only the unassembled ends
• Install only OB-F5/16 40849U reusable fittings
• Fit the supplied reinforcing sleeves correctly
• Follow the reusable-fitting tightening procedure
• Prevent the hoses from twisting during connection
• Support the hoses without flattening them
• Use the hydraulic oil specified for the complete steering system

After installation and bleeding, check that:

• Steering movement is smooth in both directions
• The cylinder reaches its full permitted travel
• Neither hose becomes tight during steering
• Engine tilt or rudder movement does not strain a hose
• All four hose connections are leak-free
• No hose rubs against another component
• The helm remains correctly filled
• No excessive free play is present
• The steering system holds the selected position

Do not operate the boat if a hose, fitting or sleeve is loose, damaged or leaking.

Maintenance and Inspection

Ultraflex recommends checking the hose kit every six months.

Inspect:

• Both hoses along their complete accessible length
• Factory-crimped or preassembled ends
• Reusable OB-F5/16 fittings
• Reinforcing-sleeve positions
• Swivel-nut tightness
• Signs of oil leakage
• Abrasion, cuts, cracking or blistering
• Hose tension throughout the steering range
• Contact with heat or moving components
• Corrosion or mechanical damage
• Hose supports and attachment points

Replace any damaged pressure hose. Do not attempt an external patch, splice or clamp repair.

Frequently Asked Questions

Are both hoses 6m long?

Yes. The kit contains two hoses, each measuring 6m / 19.7ft before cutting.

Can both hoses be shortened?

Yes. The unassembled end of each hose can be cut and fitted with the supplied reusable connection and reinforcing sleeve.

Which reusable fittings are included?

The kit includes two Ultraflex OB-F5/16 reusable fittings, part number 40849U.

Are reinforcing sleeves included?

Yes. Two reinforcing sleeves are supplied, one for each installer-assembled hose end.

Can the OB/M-60 be used with a GoTech system?

No. GoTech systems require the 1/4in OB-GT hose family and are limited to 55 bar / 800psi.

Can it be used with SilverSteer?

No. SilverSteer uses the dedicated OB-SVS hose range.

Can it be used with MasterDrive?

Ultraflex states that the OB/M range is not recommended for MasterDrive. Use the hose kit specified for the exact MasterDrive installation.

Does the kit include hydraulic oil?

No. Hydraulic steering oil is supplied separately.

Is this a dual-station hose kit?

No. The OB/M-60 is specified for a single-station application.

Key Features

• Ultraflex KIT OB/M-60 hydraulic steering hose kit
• Manufacturer part number 41708E
• Supplier catalogue code 4-47048
• Two flexible high-pressure hydraulic hoses
• 6m / 19.7ft length per hose
• 5/16in internal hose diameter
• One swivel-nut fitting preassembled on each hose
• Two OB-F5/16 reusable fittings included
• OB-F5/16 fitting part number 40849U
• Two reinforcing sleeves included
• Cut-to-length installation
• Maximum relief-valve pressure of 70 bar / 1000psi
• 250mm / 9.8in minimum bend radius
• Designed for compatible single-station Ultraflex systems
• Not suitable for GoTech systems
• Not recommended for SilverSteer or MasterDrive systems
• Helm, cylinder, hydraulic oil and steering wheel supplied separately
• Six-month hose and fitting inspection recommended

```
