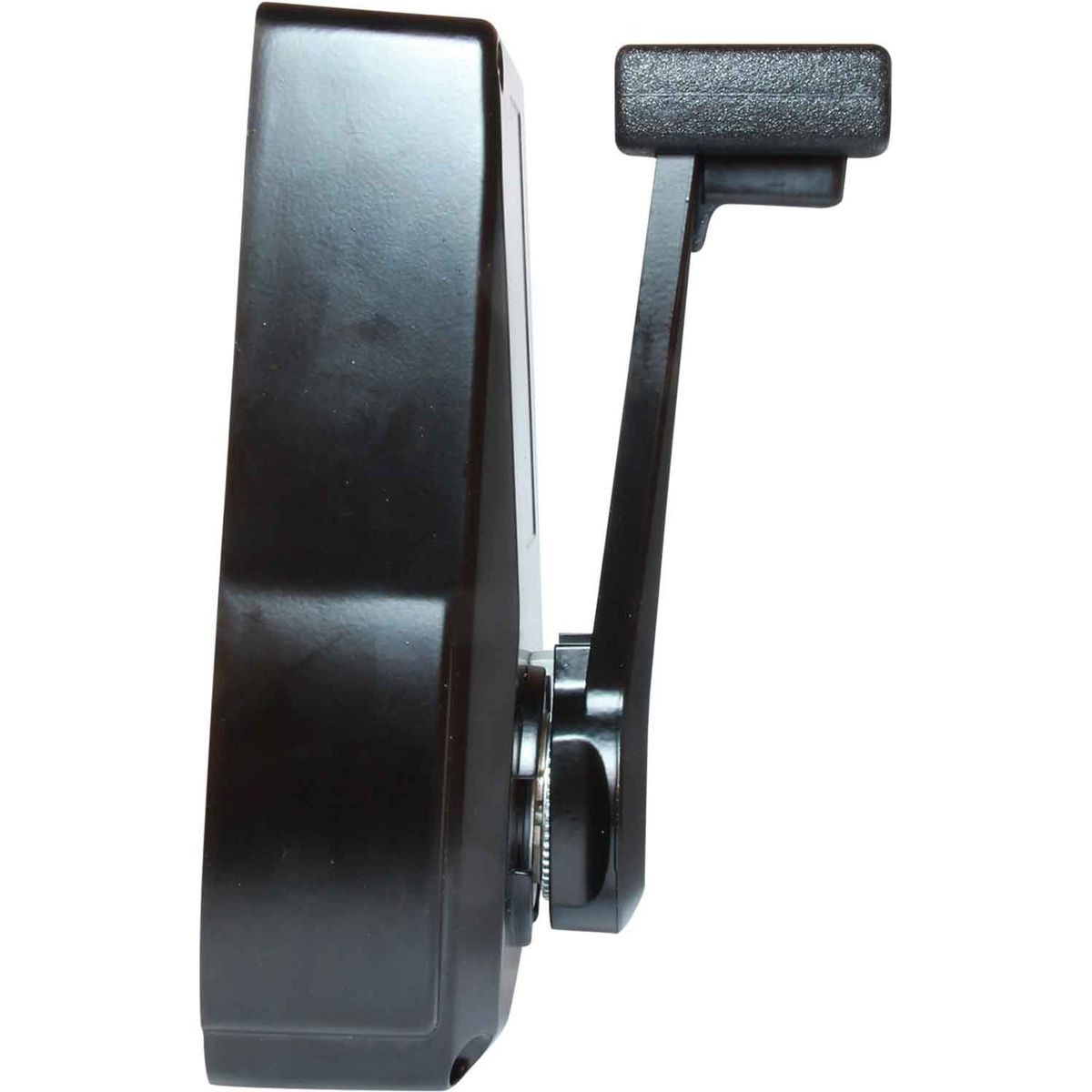

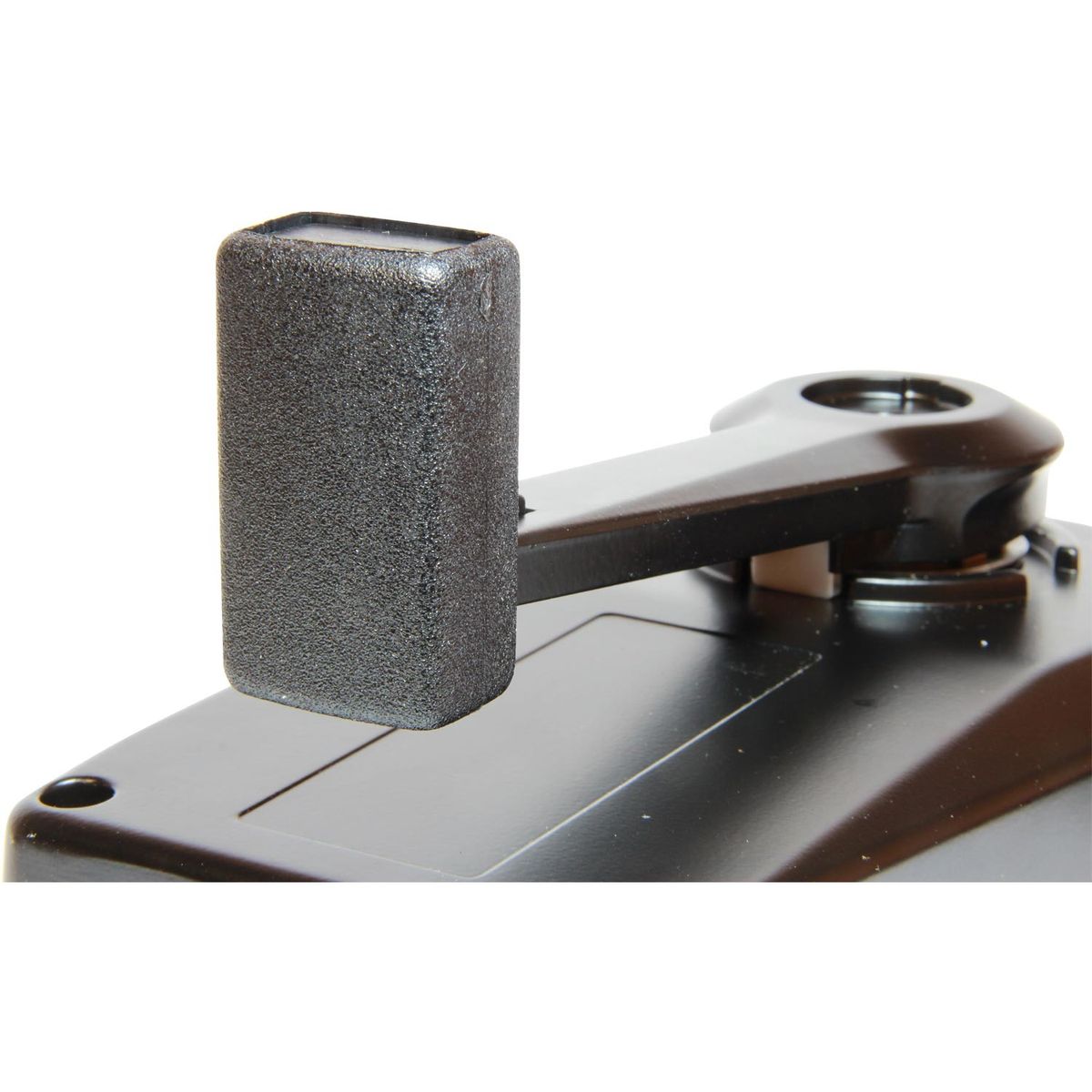

Ultraflex B89 / B90 Single Lever Side Mount Control With Lock In Neutral
Ultraflex B89 / B90 Single Lever Side Mount Control With Lock In Neutral
No reviews
SKU: AF-4-B90
Regular price
£227.95
Regular price
Sale price
£227.95
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Delivery available | lead times vary
Collection available | usually ready in 2-4 days
Description
Description
Single lever / dual action control to operate both throttle and gear.
Suitable for any type of boat with outboard, inboard or I/O power plants.
- Enables easy & safe gearing by preventing accidental gear engagement unless engine is idling
- Can be installed horizontally or vertically, on the starboard or port side of the boat

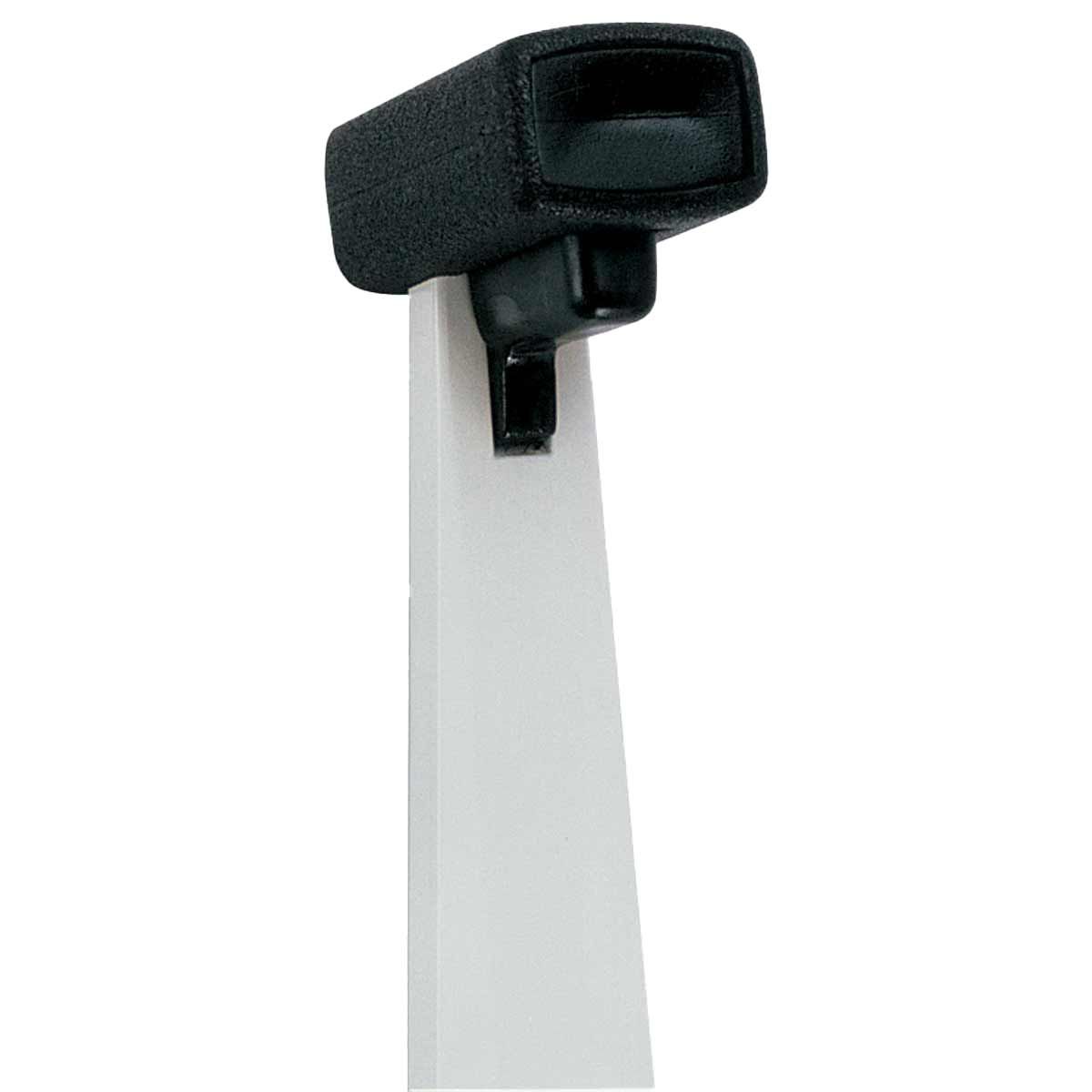

- Pull-out handle disengages gear for warm-up
- Neutral safety switch 4-X12 (optional), prevents in gear starting. Exceeds EN ISO 11547 standards when installed.
- Exceeds EN ISO 11547 standards when X12 safety switch is installed
- Provided with a positive lock-in neutral to prevent accidental gear engagement
- For use with all Ultraflex engine control cables except C22, C36 and MACH36.
- Ultraflex C5, C16 and MACH5 cables require K35 – 34730U connection kit.
- To connect C14 and MACH14 cables to engine, use K51 – 32526N connection kit.
- Made of Marine grade painted aluminium.
| Assembly | Side Mount |
| Installation | Horizontally or Vertically |
| Application | outboards, sterndrives & inboard |
| Material | Painted Marine Aluminium |

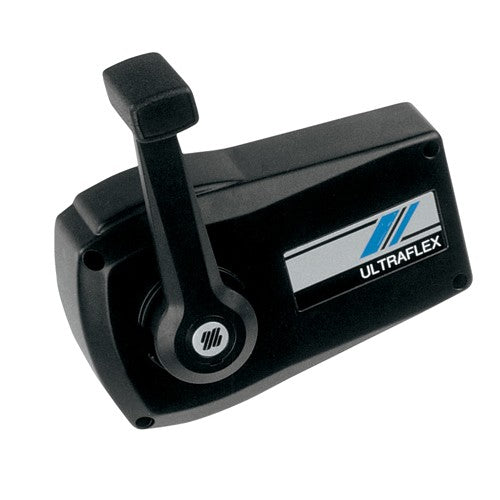

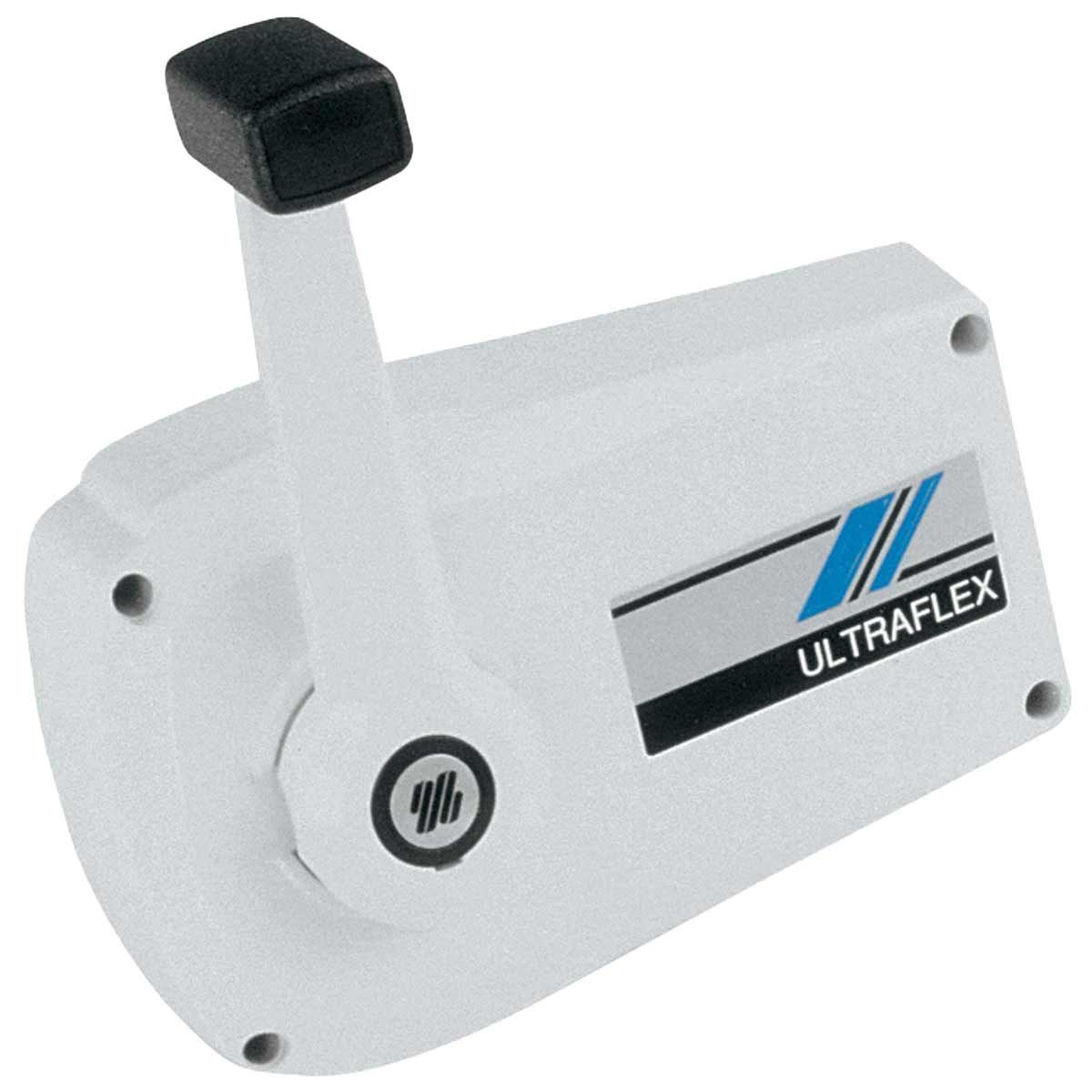

| Colours | Ivory (B89), Black (B90) |
| Version | Fully mechanical |
| Adjustable friction | Not provided |
| Pull-out handle for warm-up | Provided |
| Positive lock-in neutral | Provided |
| Power trim switch | Not Provided |
| X12 Neutral Safety Switch | Optional |
| EN ISO 11547 | Yes, when X12 safety switch is installed |
| Control cables | C2, C8, MACHZero, |
| Control cables that require a connection kit | C5, C16, MACH5 (K35); C14, MACH14 (K51); |
