Ultraflex T67 Helm And M58 Steering Cable Light Duty Steering Bundle

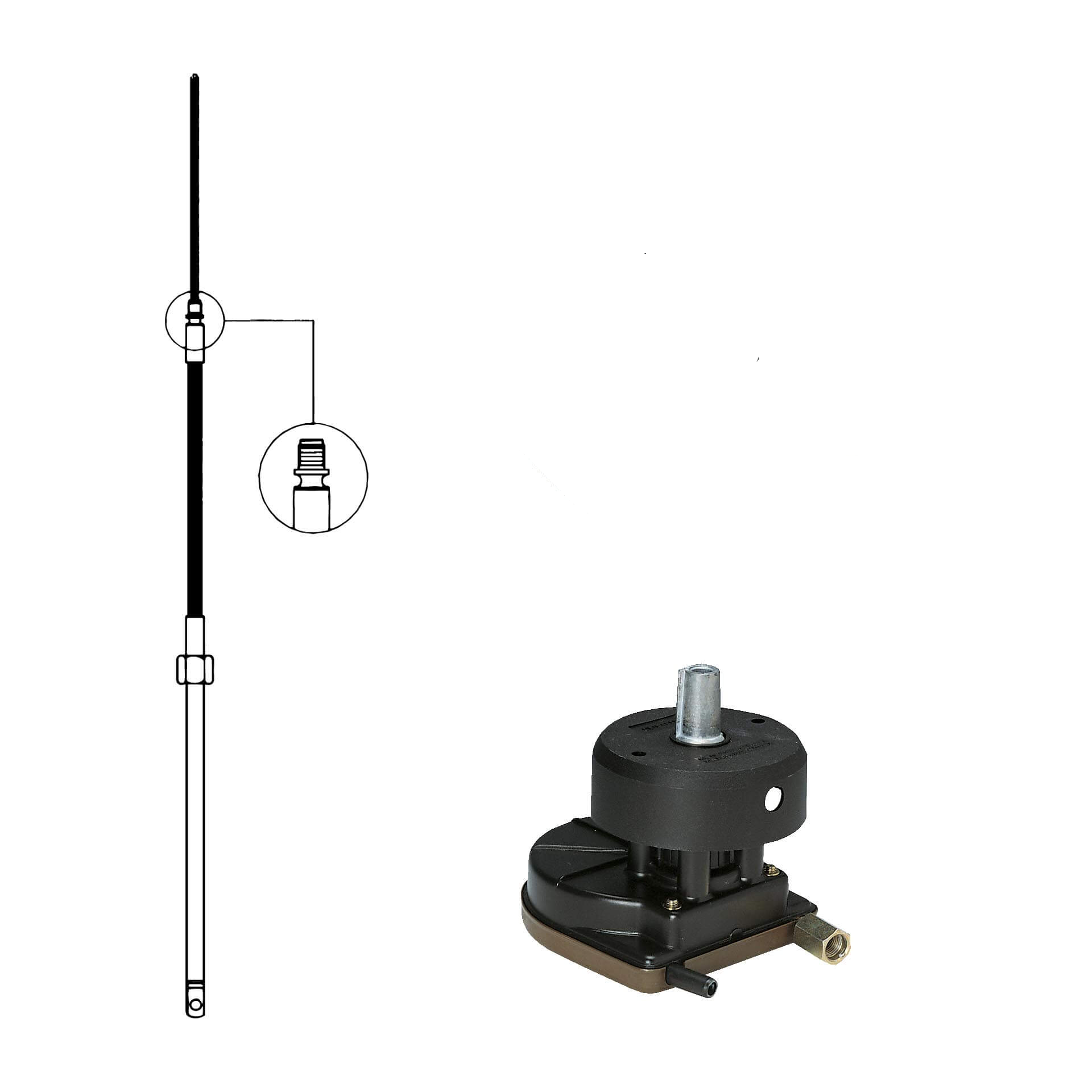

The Ultraflex T67/T67W and M58 Mechanical Steering Bundle combines a matched rotary steering helm, black or white 90° bezel and an Ultraflex M58 steering cable in the selected length. It is designed for light-duty, single-outboard powerboats up to 40kW / 55HP, providing a 230mm cable stroke and approximately 2.5 steering-wheel turns lock-to-lock.

Product Identification

• Brand: Ultraflex
• Product category: Mechanical marine steering helm, bezel and cable bundle
• Black-bezel option: T67, part number 35809J
• White-bezel option: T67W, part number 37925M
• Steering cable: Ultraflex M58 single mechanical steering cable
• Cable lengths: Available in one-foot increments
• Installation configuration: 90° dashboard mounting
• Application: Light-duty single-outboard steering systems
• Maximum engine power: 40kW / 55HP
• Maximum boat speed: 50 knots / 57.5mph

What Is Included in the Bundle?

Each bundle includes:

• One Ultraflex T67-series mechanical rotary steering helm
• Standard externally adjustable friction control
• One 90° dashboard bezel in the selected colour
• One Ultraflex M58 steering cable in the selected length

Choose between:

• T67 35809J: Black 90° bezel
• T67W 37925M: White 90° bezel

The helm specifications are otherwise the same for both options.

What Is Not Included?

• Steering wheel
• Engine connection kit or engine-specific steering link
• Spoil tube
• Additional dashboard or engine mounting hardware not supplied with the selected components

This is a matched helm, bezel and cable bundle, rather than a complete installation package for every boat. Confirm which engine connection components are required before ordering.

What Is This Steering Bundle Used For?

The T67 helm converts steering-wheel rotation into push-pull movement through the included M58 mechanical steering cable. The cable transfers this movement to the outboard engine steering assembly.

The bundle is intended for:

• Small powerboats
• Single-outboard installations
• Outboard engines up to 40kW / 55HP
• Boats operating at no more than 50 knots / 57.5mph
• Light-duty single-cable rotary steering systems
• Dashboards requiring a 90° helm and bezel installation

Always follow the lowest power or speed rating specified for the boat, engine and individual steering components.

Is It Suitable for an Evinrude E-TEC 50?

No. Ultraflex excludes the Evinrude E-TEC 50 from the normal T67 application range.

For an Evinrude E-TEC 50 installation, Ultraflex recommends one of the following alternative steering systems:

• Ultraflex T85
• Ultraflex T71FC
• Ultraflex T91

Confirm the correct helm and cable combination before installation.

How Does the T67/M58 Steering System Perform?

• Steering-cable stroke: 230mm / 9in
• Steering-wheel movement: Approximately 2.5 turns lock-to-lock
• Maximum steering-wheel diameter: 380mm / 15in
• Minimum cable bend radius: 200mm / 7.9in
• Helm installation angle: 90°
• Steering configuration: Single-cable mechanical rotary steering
• Friction control: Standard and externally adjustable
• Cable-routing positions: Four alternative helm positions

The four helm positions allow the cable to exit in the most suitable direction for the available space behind the dashboard.

How Do You Choose the Correct M58 Cable Length?

For replacement installations:

1. Measure the length of the existing black outer cable jacket, identified as measurement D in the cable-measuring diagram.
2. Do not include the exposed steering rod, threaded connection nut or metal end fittings.
3. Add 2ft, approximately 610mm, to the measured jacket length.
4. Select the corresponding M58 cable length in feet.
5. Where the calculated measurement falls between available sizes, select the next longer whole-foot cable.

Replacement cable formula: M58 cable length = D + 2ft.

Example: If the existing outer cable jacket measures 10ft, add 2ft and order a 12ft M58 cable.

This formula is intended for replacing an existing steering cable. For a new installation, measure the complete planned cable route through the boat, allowing for suitable bends and engine movement.

Does the Included Cable Need an Adaptor?

No adaptor is required between the included Ultraflex T67 or T67W helm and the M58 cable.

The cable uses a 7/8in UNF threaded connection nut. The included components are designed to connect directly to one another.

Can the M58 Cable Be Used With Other Steering Helms?

The M58 cable is also listed for direct connection to the following compatible rotary helms:

• Morse C230
• Morse C231
• Teleflex Compac-T
• Teleflex 805 TX
• Multiflex Lite 55

No cable adaptor is required for these listed helm models. Similar-looking cables and helms are not automatically interchangeable, so confirm the connection, thread, stroke and application before substituting components.

Construction and Compliance

• Corrosion-resistant helm construction
• Stainless-steel engine-side cable output end
• M58 cable output end manufactured in accordance with ABYC P17
• T67/M58 steering system exceeds EN 29775 requirements
• Externally adjustable steering-friction control
• Four cable-routing positions
• One-foot cable-length increments

Installation Notes

Maintain a minimum cable bend radius of 200mm / 7.9in throughout the installation. Avoid sharp bends, crushed cable sections, unsupported runs and contact with hot or moving engine components.

The steering wheel must not exceed 380mm / 15in in diameter. Do not install the system on a boat or engine exceeding the permitted steering-system, engine-power or boat-speed ratings.

Marine steering is a safety-critical system. Installation and servicing should follow the current Ultraflex instructions and be completed by a suitably competent marine technician.

Key Features

• Matched Ultraflex T67/T67W helm and M58 cable bundle
• Choice of black or white 90° dashboard bezel
• Black T67 helm part number 35809J
• White T67W helm part number 37925M
• Suitable for single outboards up to 40kW / 55HP
• Maximum boat speed of 50 knots / 57.5mph
• 230mm / 9in cable stroke
• Approximately 2.5 steering-wheel turns lock-to-lock
• Maximum steering-wheel diameter of 380mm / 15in
• Minimum cable bend radius of 200mm / 7.9in
• M58 cable available in one-foot length increments
• Standard externally adjustable friction control
• Four helm positions for easier cable routing
• Stainless-steel cable output end
• ABYC P17 output-end construction
• T67/M58 system exceeds EN 29775
• Steering wheel and engine connection components not included
• Not recommended for the Evinrude E-TEC 50
