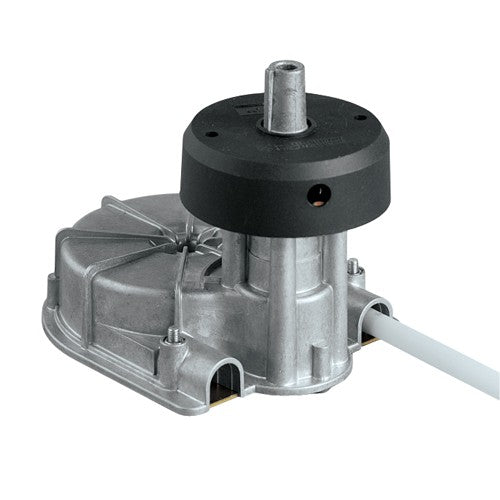

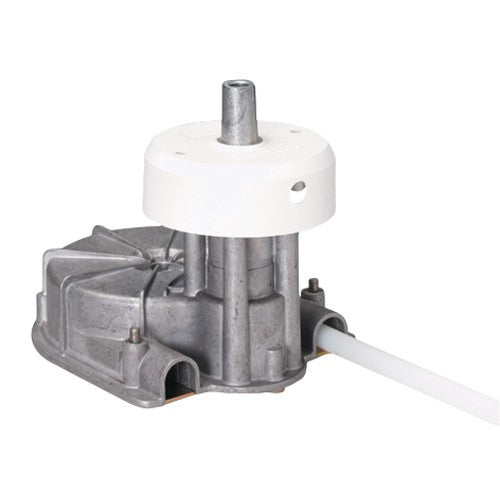

Ultraflex T85 Rotary Steering Helm With Bezel - Up To 75HP
Ultraflex T85 Rotary Steering Helm With Bezel - Up To 75HP
SKU: AF-4-T85
Delivery available | lead times vary
Collection available | usually ready in 2-4 days | Location: SS12
Description
Description
The Ultraflex T85 Rotary Steering System is a compact, reliable mechanical steering solution designed for outboard engines from 20HP to 75HP. Its space-saving design makes it ideal for installations where helm clearance is limited, while providing smooth, responsive steering with minimal feedback.
Constructed from corrosion-resistant materials and fitted with stainless steel cable output ends, the T85 is built to withstand demanding marine environments. With approximately 3 turns lock-to-lock, a 228mm steering stroke, and compatibility with steering wheels up to 406mm (16"), it delivers dependable performance for a wide range of leisure and fishing boats.
The T85 steering system complies with recognised marine safety standards, making it a trusted choice for safe and reliable mechanical steering.
Important: The T85 steering system must not be used on boats fitted with engines that exceed the manufacturer's maximum horsepower rating.
- Suitable for outboard engines 20–75HP
- Compact design for installations with limited clearance
- Smooth steering with minimal feedback
- Corrosion-resistant construction
- Stainless steel cable output ends
- Approximately 3 turns lock-to-lock
- 228mm (9") steering stroke
- Accepts steering wheels up to 406mm (16")
- Minimum steering cable bend radius of 200mm (7.9")
- Designed for reliable marine performance
- Exceeds EN28848 and ABYC P17 safety standards
Instruction Manual

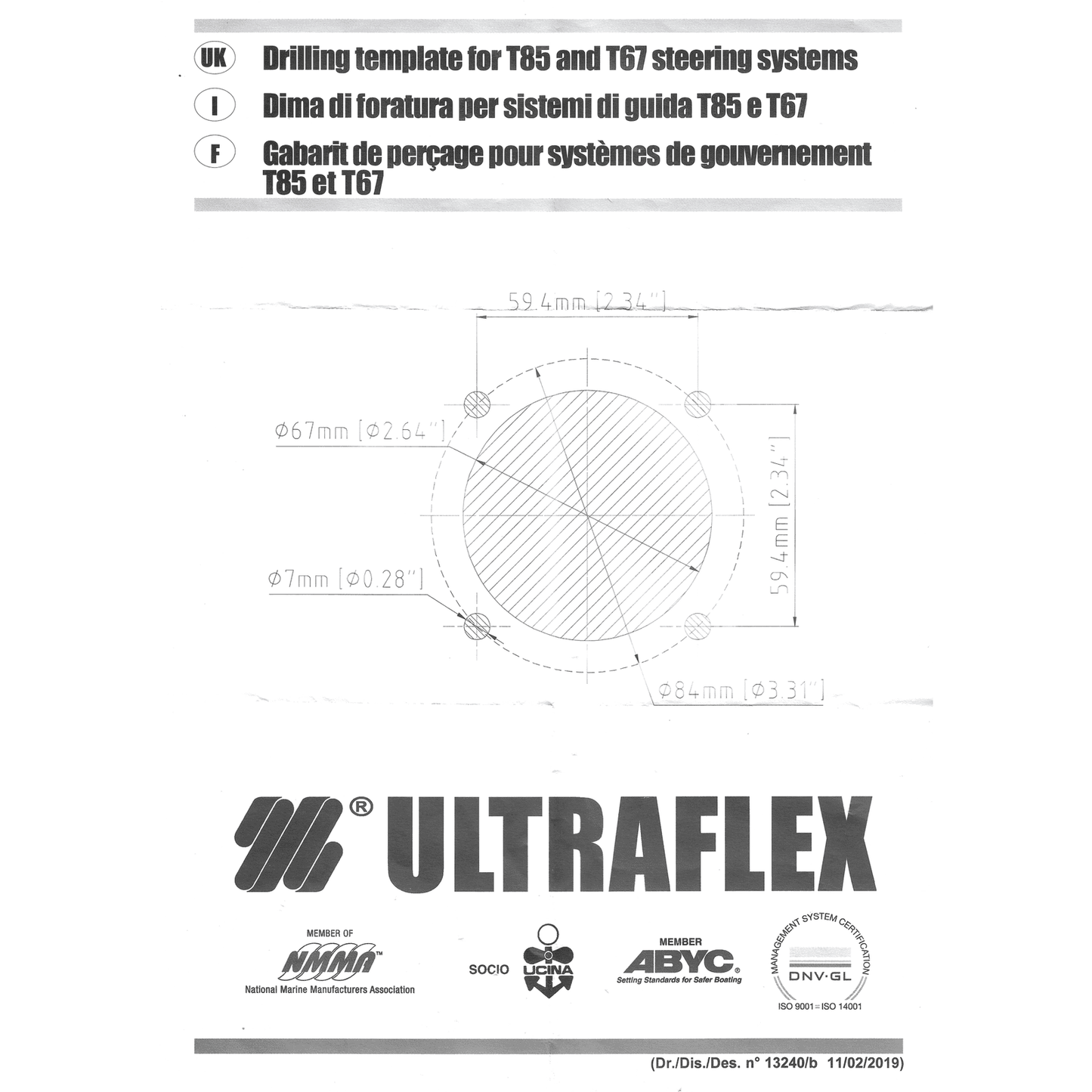

Drilling Template
| Material | Corrosion resistant material and the cable output ends are all stainless steel |
|---|---|
| Supplied With | Bezel |
| Suitable For | 6123** SC-16 or M66 Cable |
| Feedback | Yes |
| Number of Cables | Single |
| Replaces | Alternative to the Morse D290 helm which has been discontinued |
| Steering Wheel Turns | 3 Lock to Lock |
| Stroke | 228mm (9") |
| Taper | 3/4" |
| Application | Maximum boat length: 9 Meters (Outboard), 10.5 Meters (Inboard/Sterndrive) |
| Model | T85 |
| Angle | Bezel: 90 Degrees |
Specification
Specification
| Material | Corrosion resistant material and the cable output ends are all stainless steel |
|---|---|
| Supplied With | Bezel |
| Suitable For | 6123** SC-16 or M66 Cable |
| Feedback | Yes |
| Number of Cables | Single |
| Replaces | Alternative to the Morse D290 helm which has been discontinued from our range. |
| Steering Wheel Turns | 3 Lock to Lock |
| Stroke | 228mm (9") |
| Taper | 3/4" |
| Application | Maximum boat length: 9 Meters (Outboard), 10.5 Meters (Inboard/Sterndrive) |
| Model | T85 |
| Angle | Bezel: 90 Degrees |
