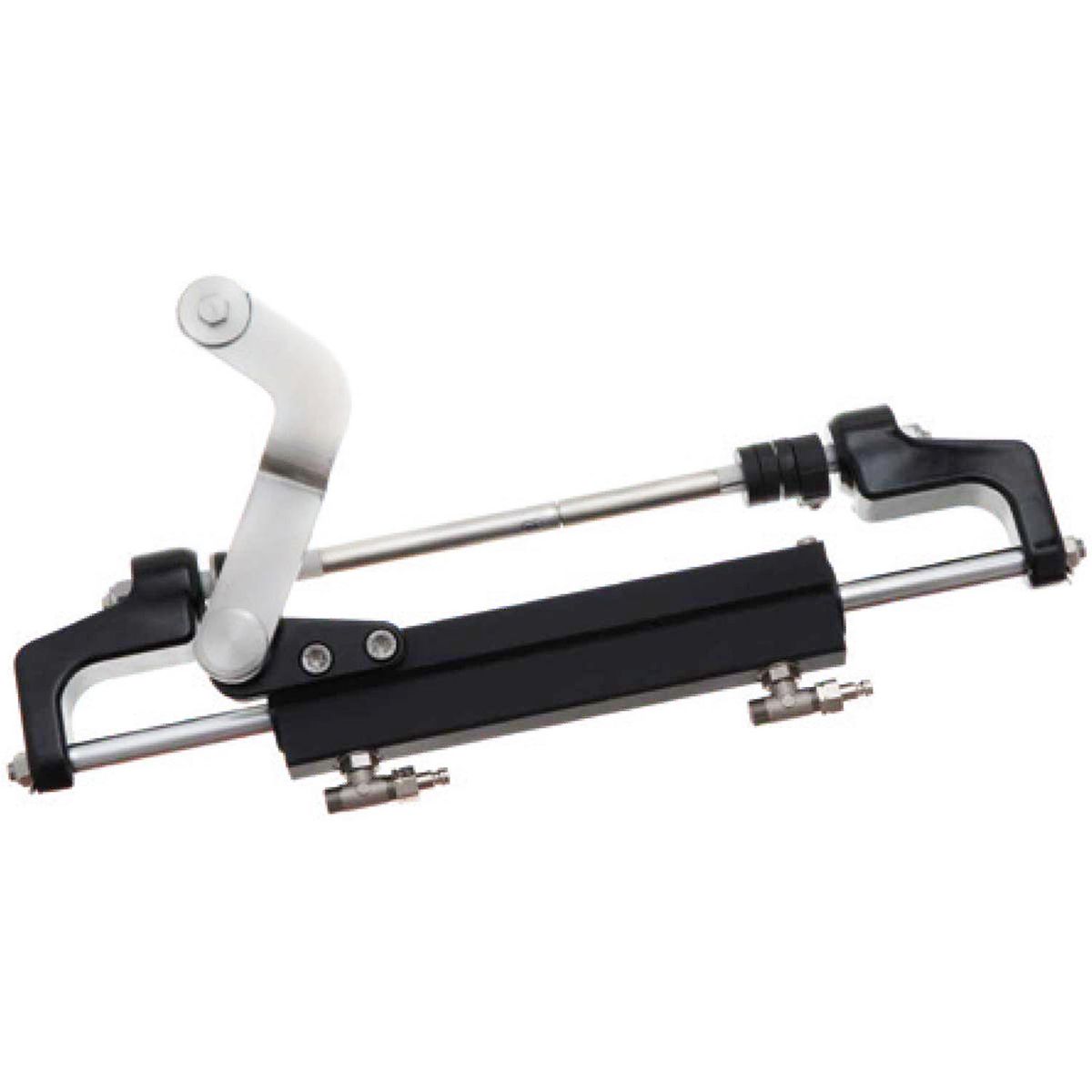

Ultraflex UC95-OBF/3 Outboard Front Mount Cylinder
Ultraflex UC95-OBF/3 Outboard Front Mount Cylinder
No reviews
Location:
SKU:AF-4-48163
Regular price
£450.00
Regular price
Sale price
£450.00
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The UC95-OBF front mount cylinder is recommended for use with outboard engines 175 hp total and less, and where the boat speed does not exceed 55mph (48 knots). It features adjustable boss style fittings for easy installation, a high resistance stainless steel connection bolt (ULTRABOLT) and replaceable cylinder heads. The number of turns lock-to-lock is equal port to starboard or vice-versa.
Ultraflex UC95-OBF/3 Outboard Front Mount Hydraulic Cylinder is suitable for the following engine applications:
Mercury Mariner:
- 75, 90 & 115 Optimax 2-stroke (2004 - to date)
Honda:
- BF115D (1998 - 2009)
- BF130A (1998 - 2005)
| Capacity Description | 94cc |
| Material | Stainless steel connection bolt |
| Output | 278kg - 613lbs |
| Fitting | Hose Connector |
| Connections Description | 3/8" OD Pipe |
| Displacement | 94cc - 5.5 cu.in |
| Steering Wheel Turns | Equal port to starboard or vice-versa |
| Stroke | 186mm (7.3") |
| Brand | Ultraflex |
| Model | UC95-OBF/3 |
| Approvals | CE |
| Height Description | 100mm |
| Width | 160mm |
| Length | 551mm (21.7") |
| Weight | 4.3kg |
| Diameter Description | 30mm - 1.18" ID |
| Mounting Description | Front |
