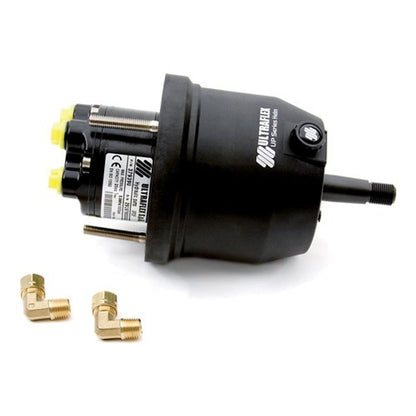

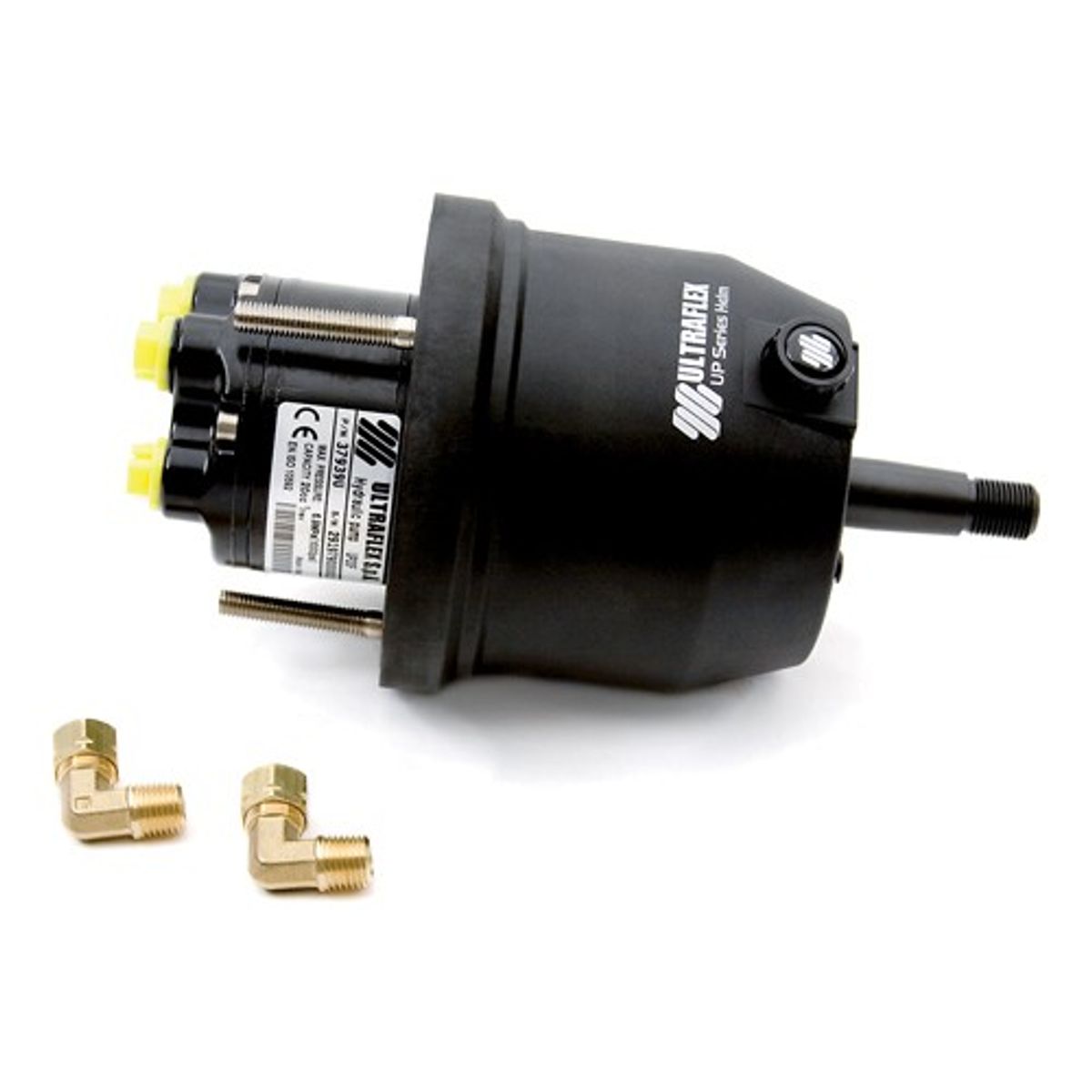

Ultraflex UP20F Front Mount Hydraulic Steering Helm - 20cc
Ultraflex UP20F Front Mount Hydraulic Steering Helm - 20cc
1 review
Location:
SKU:AF-4-48003
Regular price
£379.95
Regular price
Sale price
£379.95
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
• Built-in lock valve for positive rudder lock
• Integral relief valve for over-pressure protection
• 3/4″ tapered stainless steel shaft
• Easy accessible lock valve and shaft seal for replacement
• Includes 90° adjustable fittings for 3/8” hose
• Corrosion proof composite housing
• For use with UC95-OBF, UC68-OBS and UC69-I cylinders only
• X74 square flange permits to install the UP20F pump in an intermediate dashboard position
| Mounting | Front mount |
| Displacement/revolution | 20 cc - 1.2 cu.in |
| No. of pistons | 5 |
| Relief valve setting | 70 Bar - 1000 PSI |
| Max. wheel diameter | 508 mm (20") |
| Weight | 3,6 kg (8 lbs) |
