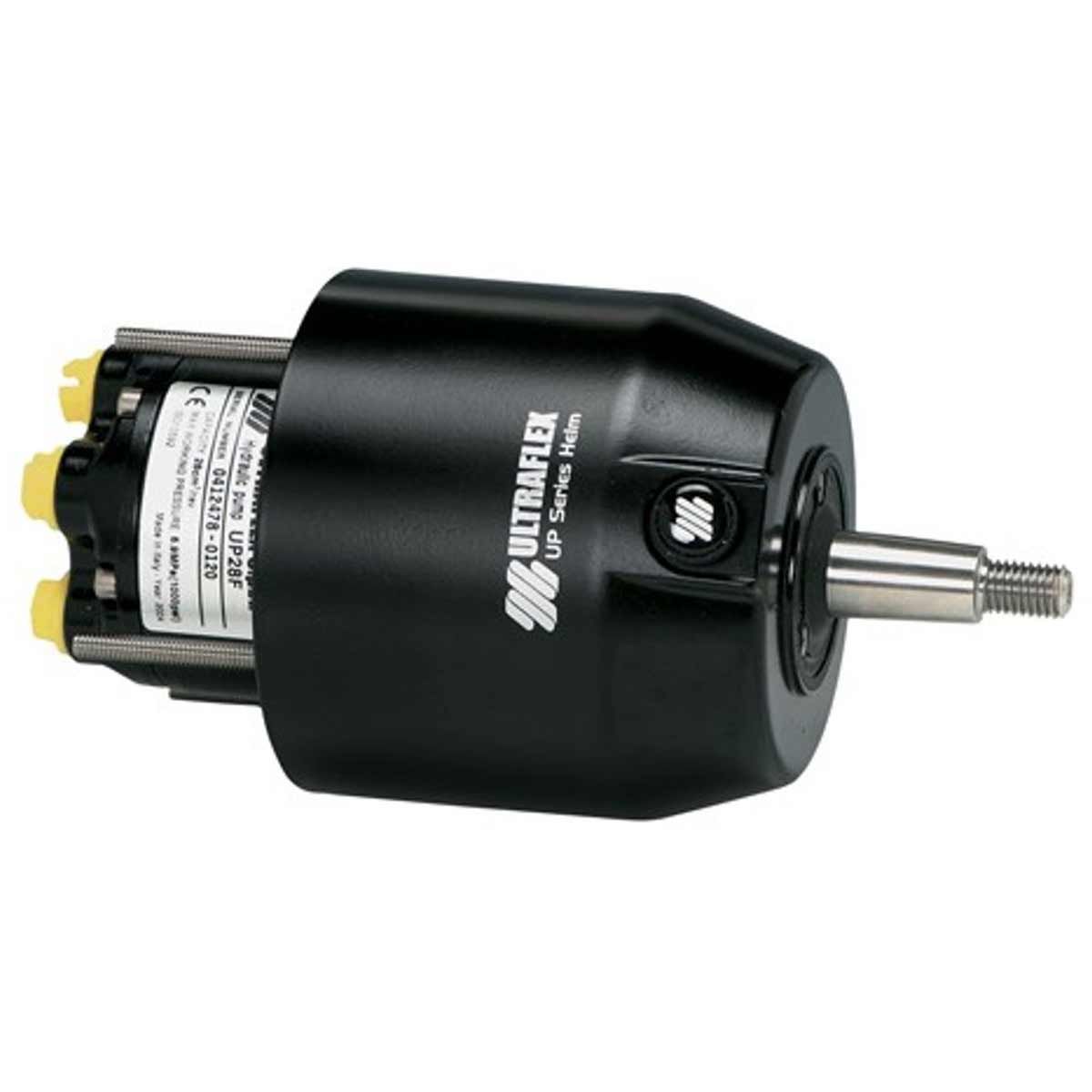

Ultraflex UP25F Front Mount Hydraulic Steering Helm - 25cc
Ultraflex UP25F Front Mount Hydraulic Steering Helm - 25cc
No reviews
Location:
SKU:AF-4-48000
Regular price
£453.95
Regular price
Sale price
£453.95
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
• Built-in lock valve for positive rudder lock
• Integral relief valve for over-pressure protection
• 3/4″ tapered stainless steel shaft
• Easy accessible lock valve and shaft seal for replacement
• Includes 90° adjustable fittings for 3/8” hose
• Ball bearing piston race
• Cast iron rotor for greater durability and longer life
• X64 square flange or X57 round flange to install the pumps with intermediate dashboard position.
• Tilt mechanism: X72 tilt range of 60° and five locking positions
| Mounting | Front mount |
| Displacement/revolution | 25 cc - 1.5 cu.in |
| No. of pistons | 5 |
| Relief valve setting | 70 Bar - 1000 PSI |
| Max. wheel diameter | 710 mm (28") |
| Weight | 5 kg (11 lbs) |
