Ultraflex V35 Saltwater Standard Marine Steering Wheel - 345mm

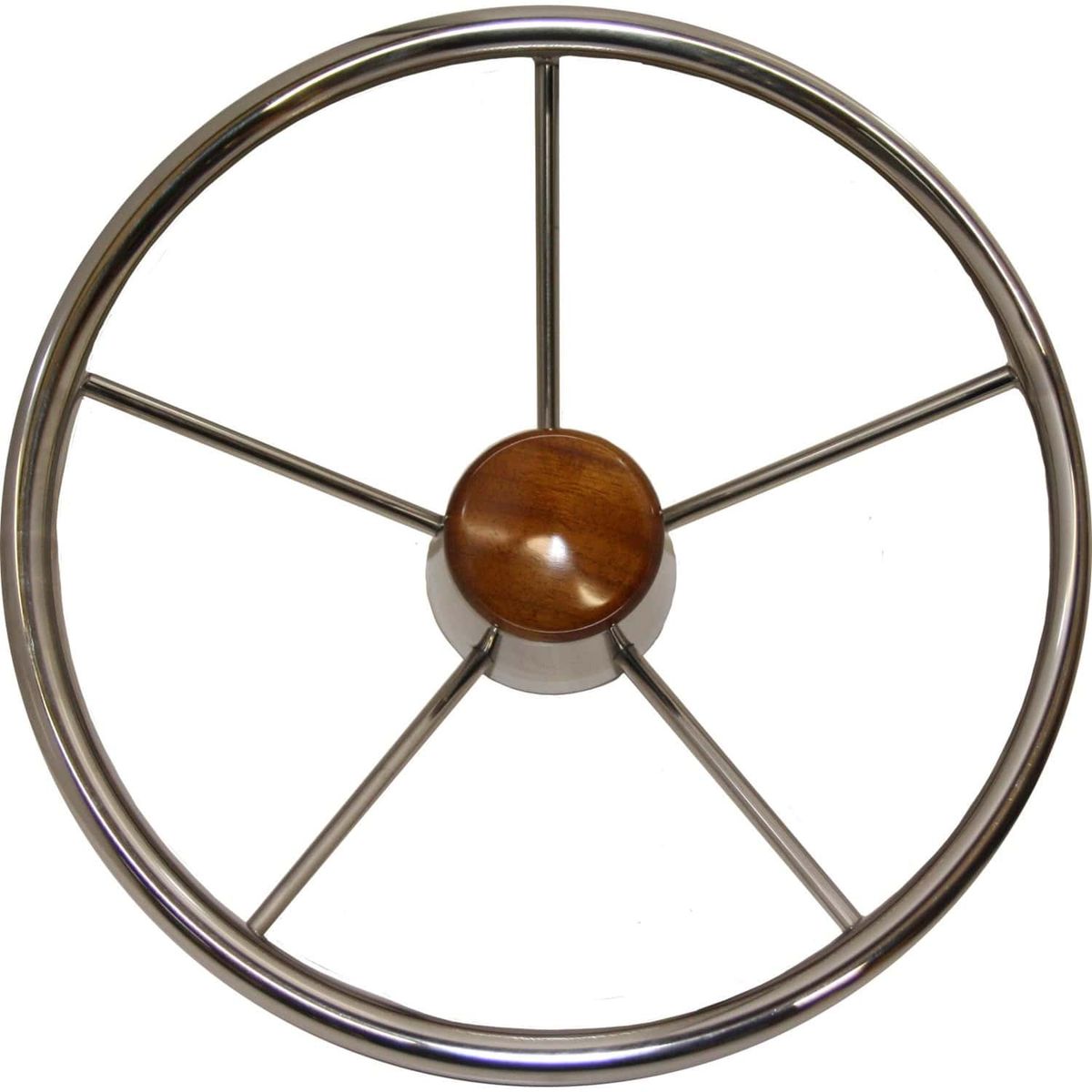

The Ultraflex V35 31602H is a 345mm / 13.6in five-spoke stainless-steel marine steering wheel for compatible marine helms with a standard 19mm / 3/4in tapered shaft. It has non-magnetic stainless-steel construction, a stainless-steel grip, a wood centre cap and an included mounting hub. The wheel has a stated depth of 100mm / 3.94in.

Product Identification

• Brand: Ultraflex
• Product range: V35
• Product category: Stainless-steel marine steering wheel
• Model: V35
• Manufacturer part number: 31602H
• Style: Five-spoke marine steering wheel
• Diameter: 345mm / 13.6in
• Depth: 100mm / 3.94in
• Grip material: Stainless steel
• Spoke material: Non-magnetic stainless steel
• Centre-cap material: Wood
• Hub fitting: Standard 19mm / 3/4in taper
• Hub: Included
• Optional accessory: KNOB21 speed knob
• Accessory part number: 42371A
• Application: Compatible marine steering helms with a standard 3/4in tapered shaft

What Is This Steering Wheel Used For?

The Ultraflex V35 provides manual steering input when fitted to a compatible marine steering helm. It is suitable for a new steering installation or as a replacement for an existing steering wheel with the same standard 19mm / 3/4in tapered fitting.

Its 345mm / 13.6in diameter may suit helm stations where a smaller wheel is required, subject to the steering helm's permitted wheel dimensions and the available clearance around instruments and controls.

The steering wheel does not determine the engine-power capacity of the steering system. The helm, mechanical steering cable or hydraulic components must remain within their individual manufacturer ratings.

What Is Included?

The Ultraflex V35 steering wheel is supplied with:

• Ultraflex V35 31602H five-spoke steering wheel
• Mounting hub for a standard 3/4in tapered shaft
• Wood centre cap

Not included:

• Mechanical or hydraulic steering helm
• Mechanical steering cable
• Hydraulic steering components
• KNOB21 speed knob
• Dashboard mounting components for the steering helm

Which Steering Helms Are Compatible?

The Ultraflex V35 is designed for compatible marine steering helms with a standard 19mm / 3/4in tapered steering-wheel shaft.

Before ordering, confirm:

• The helm has a standard 3/4in tapered shaft
• The helm manufacturer permits a 345mm / 13.6in steering wheel
• The dashboard provides clearance for the 345mm wheel diameter
• The installation provides clearance for the 100mm wheel depth
• The existing helm shaft, shaft key and retaining hardware are serviceable
• The wheel can turn through the complete steering range without contacting controls, instruments or the dashboard

Compatibility is determined by the helm-shaft dimensions, taper and permitted steering-wheel size rather than the steering-system brand alone.

Which Model and Accessory Options Are Available?

• V35 / 31602H: Five-spoke stainless-steel steering wheel with wood centre cap
• KNOB21 / 42371A: Optional speed knob listed for the V35 steering wheel

The KNOB21 speed knob is a separate accessory and is not included with the steering wheel.

Dimensions and Fitment

• Overall diameter: 345mm / 13.6in
• Depth: 100mm / 3.94in
• Hub taper: 19mm / 3/4in
• Number of spokes: Five
• Grip material: Stainless steel
• Spoke material: Stainless steel
• Centre-cap material: Wood
• Hub: Included
• Helm compatibility: Compatible standard marine helms with a 3/4in tapered shaft

The 345mm wheel diameter and 100mm depth must be checked against the available space at the helm station before installation.

Construction and Design

• Five-spoke marine steering-wheel design
• Non-magnetic stainless-steel construction
• Stainless-steel grip
• Stainless-steel spokes
• Wood centre cap
• Included mounting hub
• Circular marine steering-wheel profile
• Optional speed-knob compatibility
• Designed for compatible standard marine helm installations

The stainless-steel grip and spokes provide a metal steering-wheel structure for marine installations. The wood centre cap covers the central hub area and provides a contrasting finish.

The optional KNOB21 speed knob can be fitted where a steering-wheel spinner is required. Its suitability must be considered in relation to the boat, helm layout and applicable operating requirements.

Standards and Certification

Ultraflex states that the V35 meets the following standards and requirements:

• EN 28848
• EN 29775
• ABYC P22
• UKCA requirements

The manufacturer lists the following certifications and markings:

• CE
• NMMA
• UKCA

Installation must still comply with the instructions, maximum steering-wheel dimensions and operating limits specified for the steering helm and complete steering system.

Installation and Use

Confirm that the steering helm has a standard 19mm / 3/4in tapered shaft and is approved for a 345mm steering wheel before installation. The wheel must seat correctly on the taper without movement between the hub and shaft.

Secure the wheel using the shaft key and retaining hardware specified by the helm manufacturer. Do not force an incompatible hub onto the shaft or alter the taper to make it fit.

After installation, turn the wheel through the steering system's complete range and check that:

• The wheel does not contact the dashboard, instruments or controls
• The helm operates smoothly through its full travel
• The wheel remains securely seated on the tapered shaft
• There is no abnormal movement between the hub and helm shaft
• The shaft key and retaining hardware are correctly installed
• The wood centre cap is correctly secured
• The steering system reaches both limits without binding

Marine steering is a safety-critical system. Worn shaft keys, retaining nuts, helm shafts or other steering components must be replaced before the boat is used.

Key Features

• 345mm / 13.6in marine steering wheel
• 100mm / 3.94in depth
• Five-spoke design
• Non-magnetic stainless-steel construction
• Stainless-steel grip and spokes
• Wood centre cap
• Included mounting hub
• Standard 19mm / 3/4in tapered fitting
• Ultraflex model V35
• Manufacturer part number 31602H
• Compatible with optional KNOB21 42371A speed knob
• Suitable for compatible standard marine steering helms
• Meets stated EN 28848, EN 29775, ABYC P22 and UKCA requirements
• CE, NMMA and UKCA certifications / markings
• Steering helm and steering-system components supplied separately
