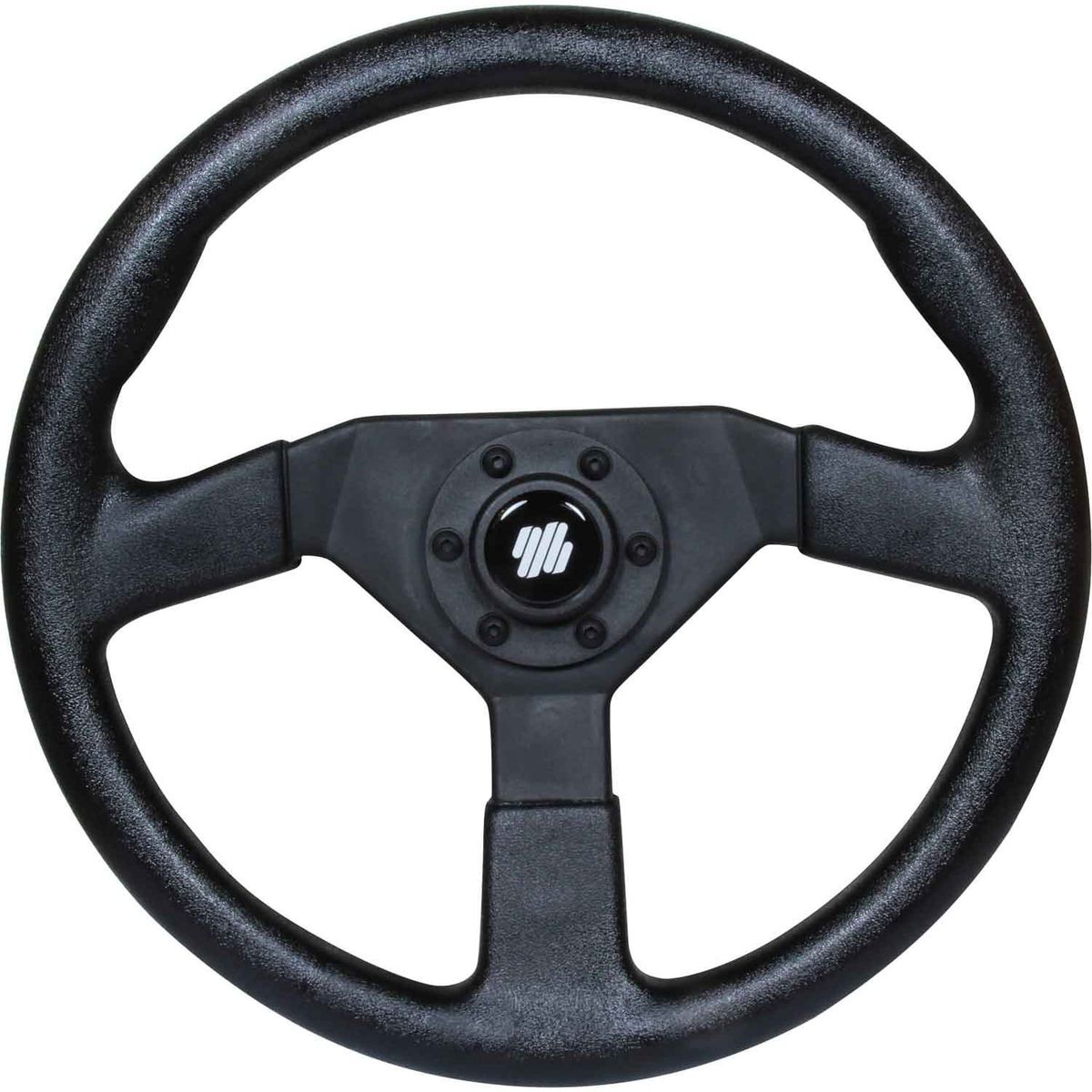

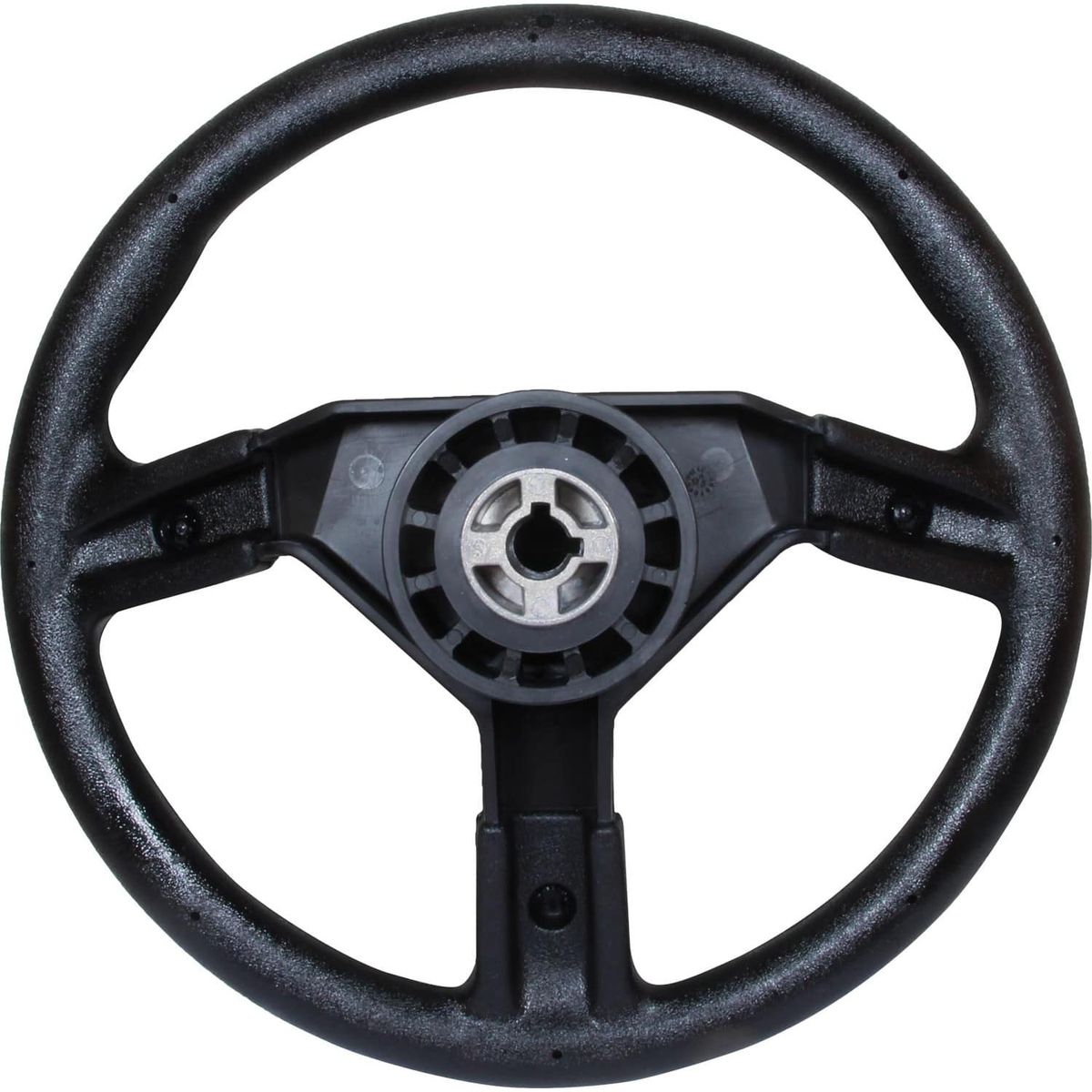

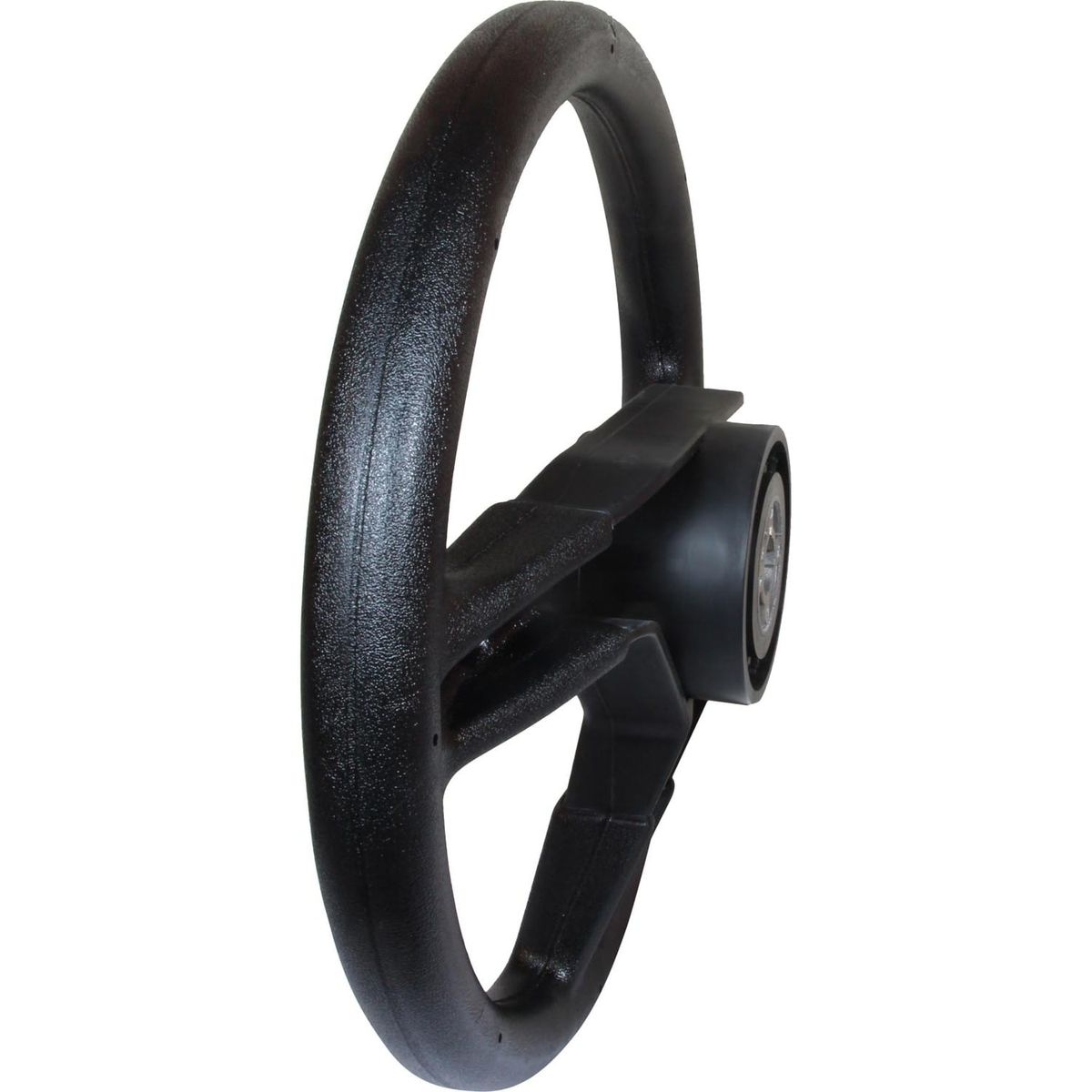

Ultraflex V38 Sports Standard Marine Steering Wheel - 350mm

The Ultraflex V38B 36517Q is a black 350mm / 13.8in three-spoke composite marine steering wheel for compatible marine helms with a standard 19mm / 3/4in tapered shaft. It features thermoplastic antishock construction, a soft-grip rim, an 85mm / 3.3in depth, an included hub and a black centre cap.

Product Identification

• Brand: Ultraflex
• Product range: V38
• Product category: Composite marine steering wheel
• Model: V38B
• Manufacturer part number: 36517Q
• Supplier catalogue code: 4-V38
• Store SKU: AF-4-V38
• Colour: Black
• Style: Three-spoke marine steering wheel
• Diameter: 350mm / 13.8in
• Depth: 85mm / 3.3in
• Grip and spoke material: Thermoplastic antishock material with soft grip
• Hub fitting: Standard 19mm / 3/4in taper
• Application: Compatible marine steering helms with a standard 3/4in tapered shaft

What Is This Steering Wheel Used For?

The Ultraflex V38B provides manual steering input when fitted to a compatible marine steering helm. It is suitable for a new installation or as a replacement for an existing steering wheel with the same standard 19mm / 3/4in tapered hub fitting.

The steering wheel does not determine the engine-power capacity of the steering system. The helm, mechanical steering cable or hydraulic components must remain within their individual manufacturer ratings.

What Is Included?

The Ultraflex V38B is supplied with:

• Ultraflex V38B 36517Q steering wheel
• Standard 3/4in tapered hub
• Black centre cap

Not included:

• Mechanical or hydraulic steering helm
• Mechanical steering cable
• Hydraulic steering components

Which Steering Helms Are Compatible?

This steering wheel is designed for compatible marine steering helms with a standard 19mm / 3/4in tapered steering-wheel shaft.

Before ordering, confirm:

• The helm has a standard 3/4in tapered shaft
• The dashboard and helm station provide clearance for the 350mm / 13.8in wheel diameter and 85mm / 3.3in depth
• The existing helm shaft, shaft key and retaining hardware are serviceable
• The wheel can turn through the complete steering range without contacting nearby controls or instruments

Compatibility is determined by the helm-shaft dimensions and taper rather than the steering-system brand alone.

Which Model and Colour Is Supplied?

• V38B / 36517Q: Black soft-grip steering wheel

This listing covers the black V38B model only. The grey V38 model uses a different manufacturer part number.

Dimensions and Fitment

• Overall diameter: 350mm / 13.8in
• Depth: 85mm / 3.3in
• Hub taper: 19mm / 3/4in
• Number of spokes: Three
• Grip colour: Black
• Hub type: Included standard tapered hub
• Centre cap: Included, black
• Helm compatibility: Compatible standard marine helms with a 3/4in tapered shaft

Construction and Design

• Thermoplastic antishock construction
• Soft-grip outer rim
• Three-spoke composite design
• Dished circular wheel profile
• Hub and black centre cap included
• Standard marine tapered-hub fitting
• Designed for standard marine helm installations

The composite construction provides a non-metallic grip and spoke structure. Its included hub removes the need for a separate wheel hub when fitted to a compatible standard tapered helm shaft.

Standards and Certification

Ultraflex lists the V38 range against the following marine steering standards and certifications:

• EN 28848
• EN 29775
• ABYC P22
• UKCA requirements
• CE, NMMA and UKCA certifications / markings

Installation and Use

Confirm that the steering helm has a standard 19mm / 3/4in tapered shaft before installation. The wheel must seat correctly on the taper without movement between the hub and shaft.

Secure the wheel using the shaft key and retaining hardware specified by the helm manufacturer. After installation, turn the wheel through the steering system's complete range and check that:

• The wheel does not contact the dashboard, instruments or controls
• The helm operates smoothly through its full travel
• The wheel remains securely seated on the tapered shaft
• There is no abnormal movement between the hub and helm shaft

Marine steering is a safety-critical system. Worn shaft keys, retaining nuts, helm shafts or other steering components must be replaced before the boat is used.

Key Features

• 350mm / 13.8in marine steering wheel
• 85mm / 3.3in depth
• Ultraflex V38B model
• Manufacturer part number 36517Q
• Three-spoke composite design
• Thermoplastic antishock construction
• Black soft-grip finish
• Hub and black centre cap included
• Standard 19mm / 3/4in tapered fitting
• Suitable for compatible standard marine helms
• Helm and steering-system components supplied separately
