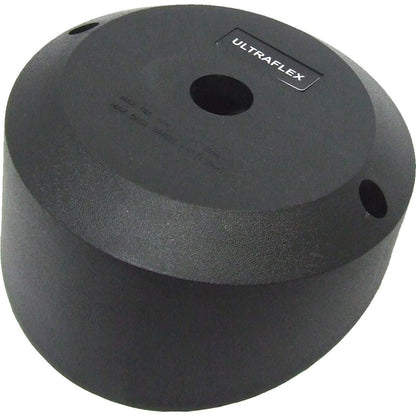

Ultraflex X34 / X35 Steering Helm Bezel Kit

The Ultraflex X34 and X35 Steering Helm Bezel Kits are mounting kits for compatible Ultraflex mechanical steering systems. The X34 / 36654B provides a 90° mounting angle, positioning the steering-wheel shaft perpendicular to the dashboard, while the X35 / 36655C provides a 20° angled mounting position.

Each bezel kit mounts between the mechanical steering helm and the boat’s dashboard or bulkhead. It supports the helm at the correct angle, covers the dashboard cutout and conceals the mounting bracket and fasteners for a clean helm installation.

This product is a bezel kit only and does not include the steering helm, steering cable or steering wheel.

Key Specifications

• Brand: Ultraflex
• Product category: Mechanical steering helm bezel kit
• X34 / 36654B: Black bezel with 90° mounting angle
• X35 / 36655C: Black bezel with 20° mounting angle
• Installation location: Dashboard or bulkhead
• Steering system type: Compatible mechanical rotary and rack-and-pinion steering systems
• Primary function: Supports the helm, covers the dashboard opening and conceals mounting hardware
• Compatible helms listed by Ultraflex: T71FC, T72FC, T73NRFC, T74NRFC, G86 and G88
• Not compatible with: Ultraflex T67 or T85 steering systems
• Dashboard centre cutout: 83mm / 3-1/4in
• Bracket mounting holes: 3 x 10mm / 3/8in
• Steering helm, cable and wheel: Not included

What Is Included?

Both the X34 and X35 kits contain the same mounting hardware. The angle-specific bezel is the principal difference between the two kits.

• 1 x mounting bracket
• 3 x M8 x 45 screws to UNI 5931
• 3 x flat washers
• 3 x M8 nuts to UNI 5591
• 3 x M8 x 20 screws to UNI 5931
• 1 x black angle-specific bezel
• 2 x AB4.8 x 19 self-tapping screws to UNI 6951
• 1 x steering-shaft key
• 1 x flat steering-wheel washer
• 1 x M12 steering-wheel retaining nut

Common Questions

What is this used for?

The bezel kit secures a compatible Ultraflex mechanical steering helm to the dashboard or bulkhead. It also covers the exposed cutout and mounting bracket to provide a finished helm installation.

Which model do I need?

Choose X34 / 36654B where the steering-wheel shaft must be mounted at 90° to the dashboard. Choose X35 / 36655C where a 20° angled steering-wheel position is required.

Which steering helms are compatible?

The X34/X35 installation manual lists the T71FC, T72FC, T73NRFC, T74NRFC, G86 and G88 steering systems. These bezel kits must not be used with the T67 or T85. Verify the exact helm model before ordering.

Are the X34 and X35 interchangeable?

They use the same general installation hardware, but they position the steering helm at different angles. The dashboard layout, steering-wheel clearance and operator position must suit the selected 90° or 20° configuration.

Is this for hydraulic steering?

No. The X34 and X35 are mounting bezel kits for compatible mechanical steering helms.

Does the kit include the steering helm?

No. The steering helm, steering cable and steering wheel are sold separately.

Does the kit include steering-wheel mounting hardware?

Yes. The kit includes the steering-shaft key, flat washer and M12 retaining nut.

What dashboard cutout is required?

The Ultraflex installation template specifies an 83mm centre opening and three 10mm mounting holes. Check the physical kit and current template before drilling.
