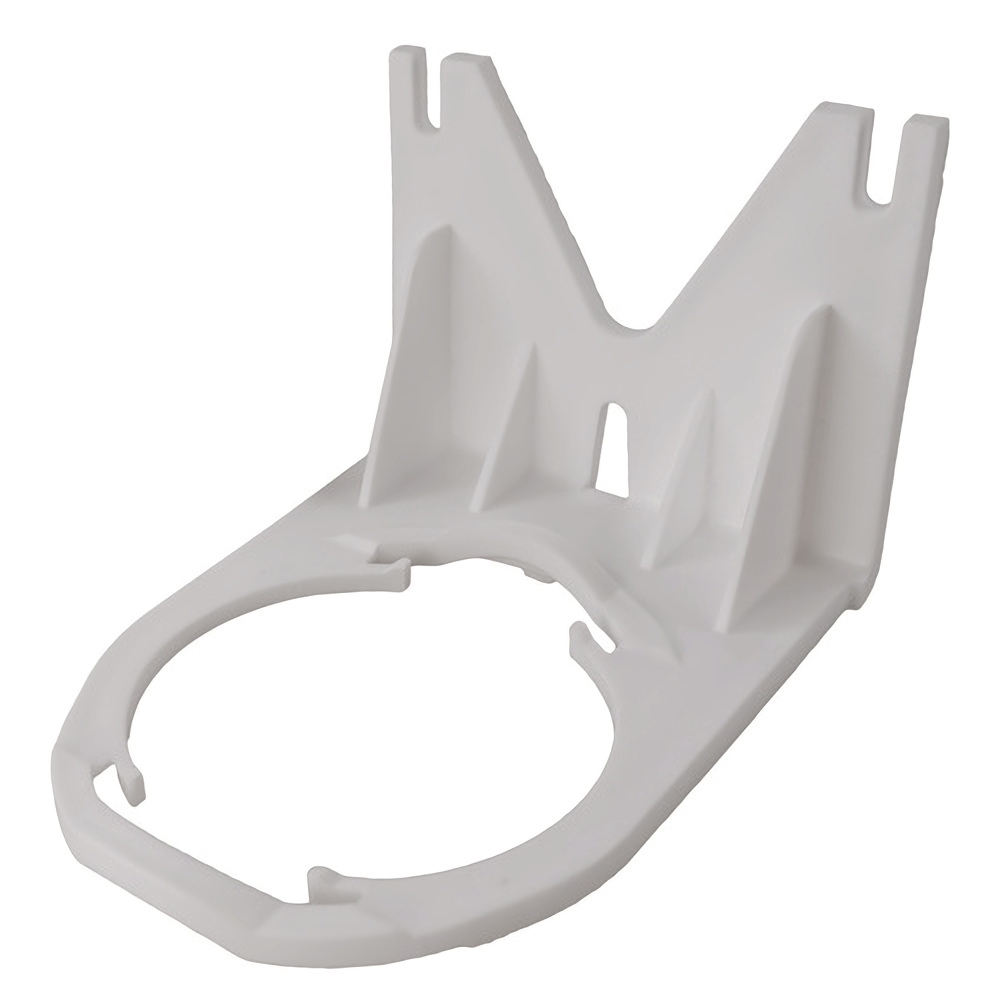

Rule Vertical Mounting Bracket for Small Oval Pumps

Rule Vertical Oval Mounting Bracket for Small Oval Pumps                            Ref: CW-66A

Fits all new style small 'oval' Rule pumps.

Not to be confused with model '66' mounting bracket which is for all round shaped Rule pumps and can be found here

Install Instruction:

1. Install pump base into the bracket from the underside of the bracket.
2. Mount the bracket to the wall or stringer using at least 2 screws.
3. Insert pump body into base until an audible click is heard.

For detailed dimensions, see second picture.

Pilot Hole Dia: 4mm (Screws Not included.)
