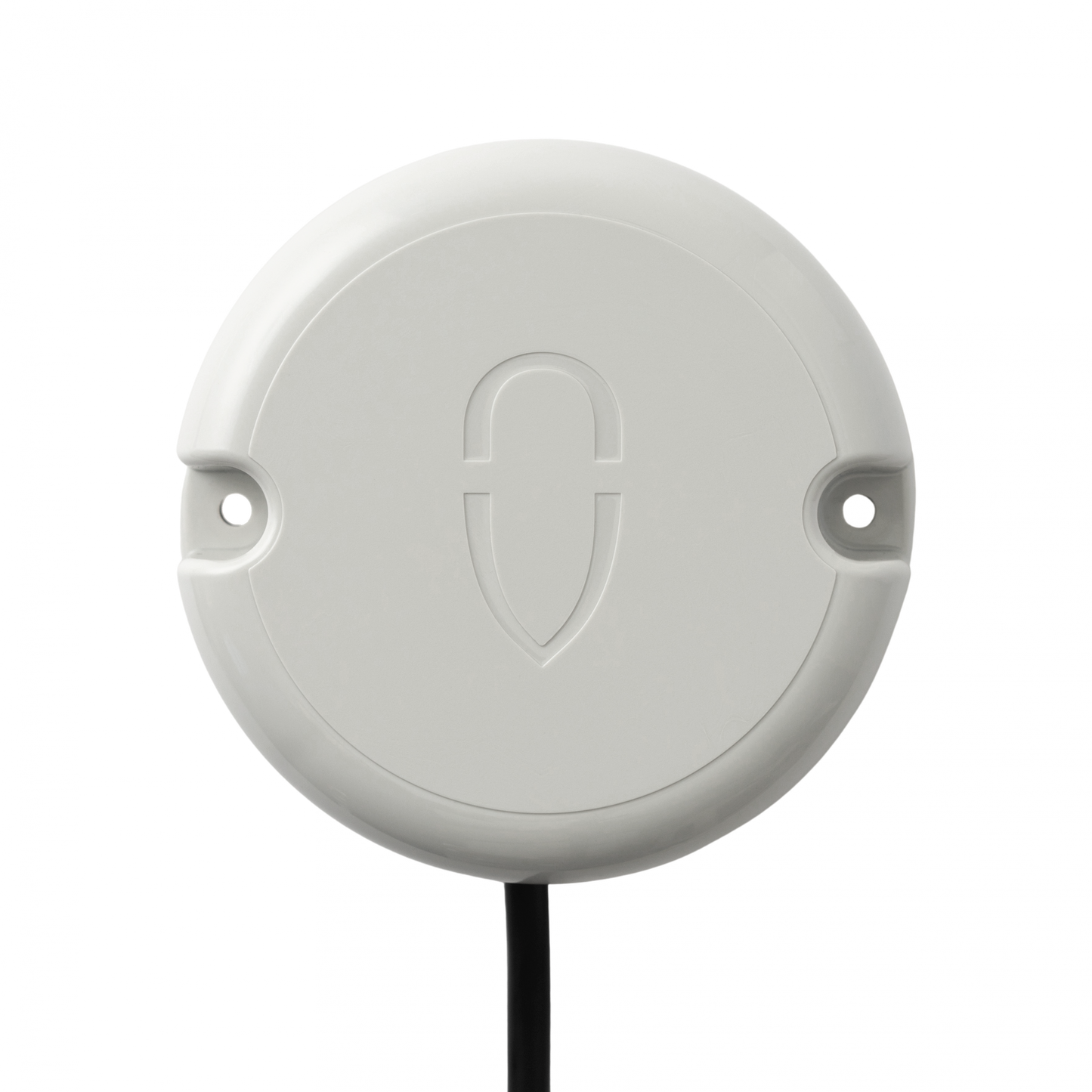

VirCru Smart Connected Hub

The VirCru Hub is at the heart of the VirCru Smart Boat system, taking information from VirCru Sensors wirelessly and sending it back to the VirCru servers. It contains a built-in GPS receiver to track your boat’s location. The VirCru Hub uses the Global System for Mobile Communications (GSM) standard and connects to the VirCru App through either 2G or 4G network coverage for optimal connectivity.

It is fitted with a roaming SIM so it can use networks in the UK and Europe, automatically selecting the best network depending on your boat’s location. The VirCru Hub wirelessly connects to the other VirCru and partner products on your boat using the VirCru Wireless Link and is a simple ‘plug and play’ system. The Hub is fitted with a high sensitivity GPS receiver to provide the best tracking performance possible.

The VirCru Hub features the following functionality:

• GPS positioning
• GPS GeoFencing
• Battery voltage monitoring (Main)
• Battery voltage monitoring (Secondary)
• Bilge pump monitoring
• Boat angle monitoring and more!

VirCru products require a VirCru Subscription.

Specifications

• Supply Voltage 8-32V DC
• Supply Current Max 500mA, Typical 5mA
• Internal rechargeable lithium backup battery, typical life 1 week with no external power
• Dimensions 100mm diameter x 35mm high
• Cable Length 2m
• Cable Termination 3 x 10mm rings, 1 x covered ends
• All fixings and metalwork 316l grade stainless steel
• Mounting through hole or bracket
