WAVE Navigator 3.0 Inflatable Touring Kayak - 1 Person

The WAVE Navigator 3.0 1-Person Inflatable Kayak is a portable solo touring kayak with a 1000D drop-stitch hull, 120 kg maximum load and complete paddling kit. Its tapered profile, V-shaped bow and stern, adjustable seating and removable fins are designed to support efficient tracking, stability and comfort on sheltered lakes, rivers, canals, estuaries and suitable light coastal water.

Designed to combine the storage convenience of an inflatable kayak with a firmer touring-oriented platform, the Navigator 3.0 uses separate inflatable chambers, high-pressure drop-stitch construction and a streamlined hull. The package includes a paddle, adjustable seat and footrest, inflation pump, two removable fins and a transport backpack.

Product Identification

• Brand: WAVE
• Product name: Navigator 3.0 Inflatable Kayak
• Model: Navigator 3.0
• Supplier stock code: 48275
• Product category: One-person inflatable drop-stitch kayak
• Person capacity: One paddler
• Current one-person dimensions: 380 × 80 × 35 cm
• Kayak weight: 15.1 kg
• Complete packed weight: 22.83 kg
• Maximum combined load: 120 kg
• Material rating: 1000D
• Maximum side-chamber pressure: 15 PSI
• Maximum floor pressure: 10 PSI

What Is the WAVE Navigator 3.0 Used For?

The Navigator 3.0 is designed for solo recreational and touring paddling where efficient forward movement, directional tracking and compact transport are priorities.

Suitable applications include:

• Sheltered lakes and reservoirs
• Calm or gently flowing rivers
• Canals and inland waterways
• Sheltered estuaries
• Suitable light coastal conditions
• Recreational fitness paddling
• Longer day trips within the paddler's experience and the prevailing conditions

The kayak is intended for sheltered waters and is not suitable for white-water rafting or other extreme sports.

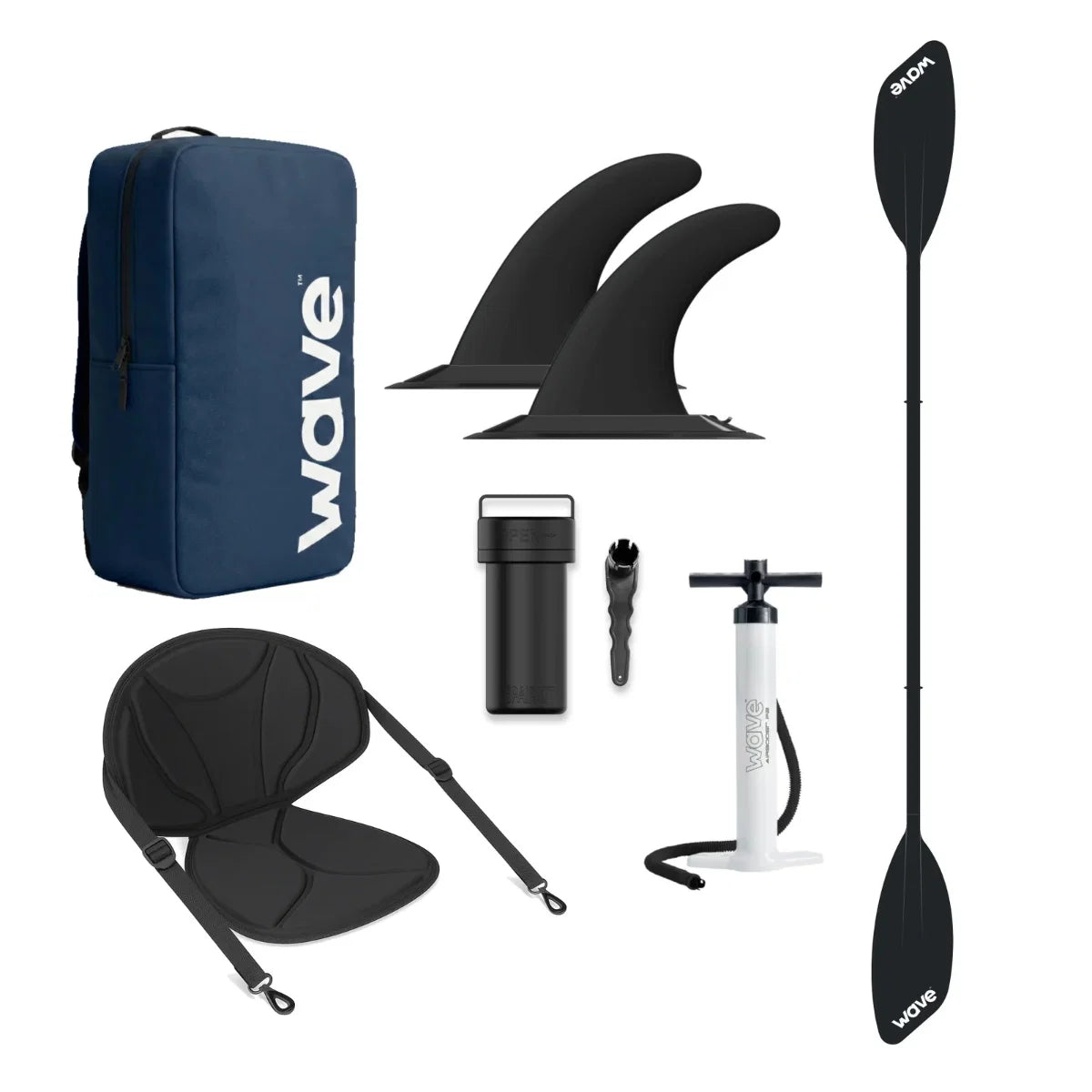

What Is Included?

• One WAVE Navigator 3.0 inflatable kayak
• One padded adjustable kayak seat
• One adjustable footrest
• One double-ended kayak paddle
• Two removable tracking fins
• One inflation hand pump
• One premium transport and storage backpack
• Integral storage bungee cord
• Factory-fitted valves, D-rings and carrying handles

What Is Not Included?

• Buoyancy aid or personal flotation device
• Paddling clothing or footwear
• Waterproof phone case
• Dry bag or separate luggage bag
• Additional passenger seat or footrest
• Roof rack or vehicle tie-down equipment
• Personal safety and rescue equipment

A correctly fitted buoyancy aid or personal flotation device should be worn whenever the kayak is used.

Who Is the Navigator 3.0 Designed For?

The WAVE Navigator 3.0 is a touring and performance-oriented inflatable kayak rather than a wide beginner-focused leisure model. It is suited to paddlers looking for:

• A streamlined solo kayak
• Directional tracking for longer-distance paddling
• A high-pressure drop-stitch platform
• A kayak that packs into a car boot or storage cupboard
• Adjustable seating for longer paddling sessions
• A complete package with paddle, pump, fins and transport bag

WAVE identifies the Navigator's skill level as intermediate or group kayaking. Inexperienced users should obtain suitable instruction and begin on sheltered water in calm conditions.

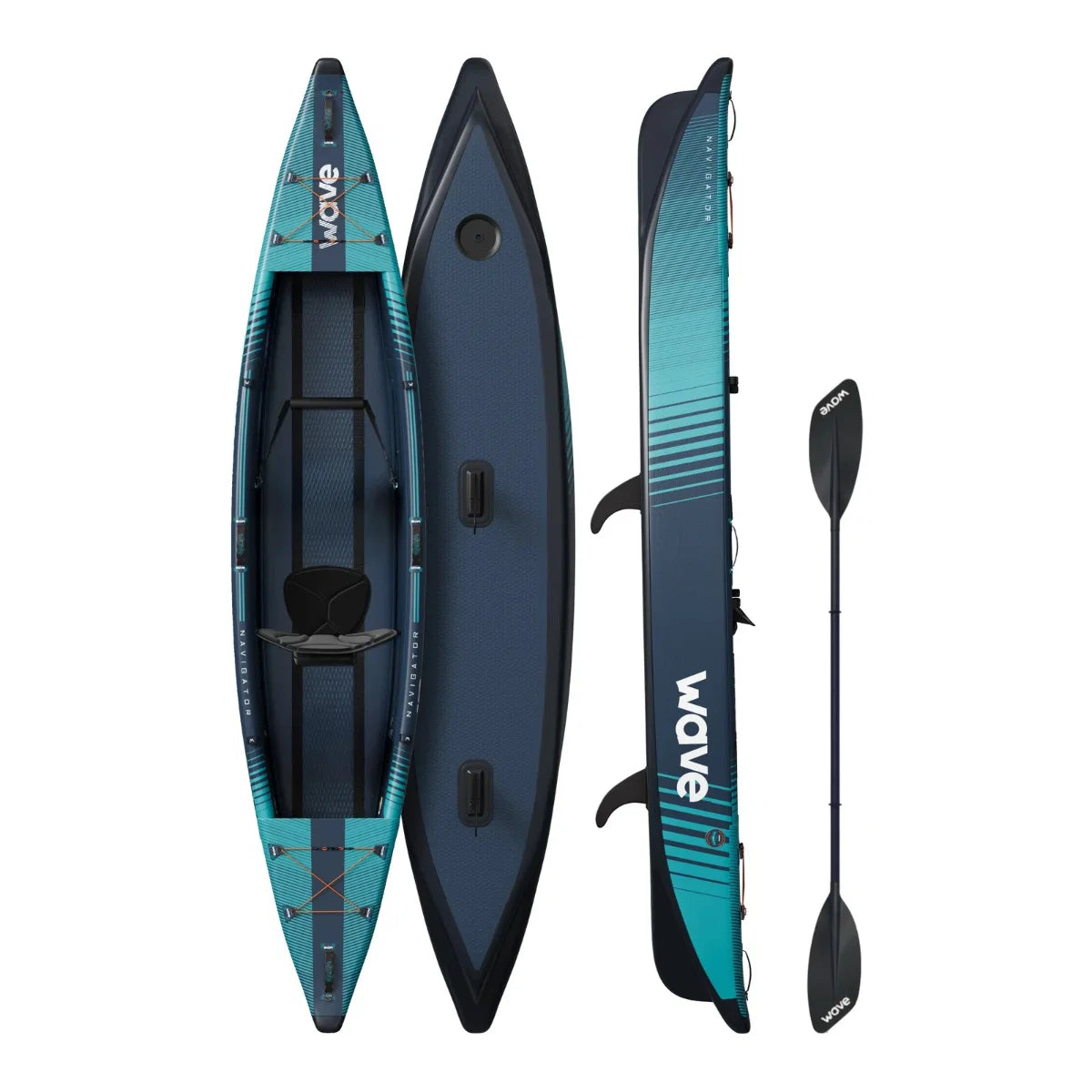

How Does the Hull Design Affect Performance?

The Navigator 3.0 has a precision-tapered profile with a V-shaped bow and stern. This shape is designed to:

• Cut through small surface chop more efficiently
• Reduce the drag associated with wider recreational inflatables
• Support straighter tracking between paddle strokes
• Improve glide over longer distances
• Provide a more touring-focused paddling position
• Maintain stability through the reinforced multi-chamber structure

Two removable fins provide additional tracking in deeper water. Do not use the fins in shallow water where they could strike the bottom and damage the kayak or reduce manoeuvrability.

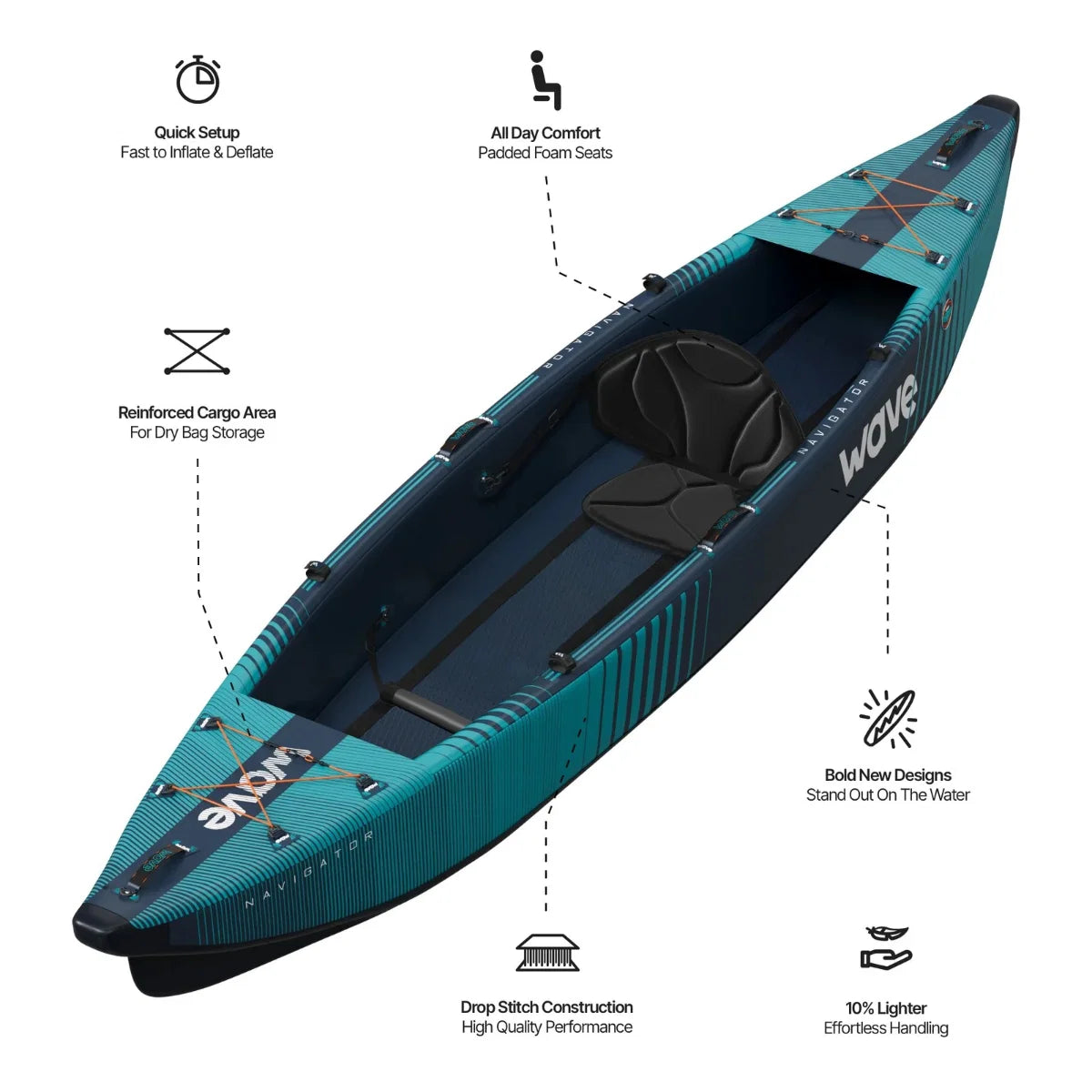

Construction and Design

• Primary construction: 1000D PVC and drop-stitch
• Hull: Reinforced multi-chamber design
• Profile: Precision-tapered touring shape
• Bow and stern: V-shaped
• Deck surface: EVA foam deck area
• Inflation: Separate side and floor valves
• Seat mounting: Adjustable floor track and D-rings
• Footrest: Adjustable floor-mounted design
• Carrying: Front, rear and side handles
• Storage: Integral bungee areas
• Tracking: Two removable fins
• Drainage: Integral drain valves

How Do I Set Up the Navigator 3.0?

• Unroll the kayak on a clean surface free from stones, glass or sharp objects.
• Inspect the hull, seams, valves and accessories before inflation.
• Install the removable fins before the kayak is fully inflated.
• Inflate the side chambers first.
• Inflate the floor chamber after the side chambers.
• Inflate the side walls to no more than 15 PSI.
• Inflate the floor to no more than 10 PSI.
• Close each valve cap securely.
• Attach the seat to the floor track and internal D-rings.
• Adjust the seat straps so the backrest remains upright.
• Position the footrest on the floor track and adjust its straps.
• Confirm that the paddle, fins, seat and footrest are secure before launching.

The curved edge of each fin should point towards the stern. Follow the supplied WAVE instruction manual throughout assembly and inflation.

What Inflation Pressure Should I Use?

• Side chambers: Maximum 15 PSI
• Floor chamber: Maximum 10 PSI

Use a pump with an accurate pressure gauge. Do not exceed the stated pressure and do not use an unregulated high-pressure compressor.

Air pressure changes with temperature. Pressure can increase when the kayak is left in direct sunlight or hot weather, so release air where necessary to prevent over-pressurisation.

Safety and Use

• Wear an approved buoyancy aid or personal flotation device.
• Tell someone your planned route, launch point and expected return time.
• Check weather, wind, tide and water conditions.
• Inspect the hull, seams, valves, fins, seat and paddle before use.
• Do not exceed the 120 kg maximum combined load.
• Include the paddler, clothing, food, water and equipment when calculating load.
• Use the kayak only within your experience and paddling ability.
• Do not paddle while affected by alcohol or drugs.
• Do not use the kayak for white-water rafting or extreme sports.
• Avoid paddling alone, particularly on exposed or unfamiliar water.
• Carry appropriate first-aid and rescue equipment.
• Follow local navigation rules and access restrictions.

Care and Maintenance

• Rinse the kayak with fresh water after use in salt or dirty water.
• Clean it using mild soap and water.
• Remove sand, gravel and debris from between the floor and side chambers.
• Allow the kayak and accessories to dry completely before packing.
• Inspect the hull, seams and valves for wear or leakage.
• Remove the fins before folding the kayak.
• Open the valves and release the remaining air before rolling.
• Store the kayak in a clean, dry location.
• Protect it from prolonged heat, freezing temperatures and direct sunlight.
• Do not use the transport handles as vehicle tie-down points.

Key Features

• One-person touring and recreational inflatable kayak
• Current one-person size of 380 × 80 × 35 cm
• 15.1 kg kayak weight
• 120 kg maximum combined load
• 1000D PVC and drop-stitch construction
• 15 PSI side chambers
• 10 PSI floor chamber
• Reinforced multi-chamber design
• V-shaped bow and stern
• Tapered profile for glide and tracking
• Adjustable padded seat
• Adjustable footrest
• Two removable fins
• Double-ended paddle included
• Inflation pump included
• Transport backpack included
• Loaded-bag size of 110 × 52 × 31 cm
• Complete packed weight of 22.83 kg

Frequently Asked Questions

Is the WAVE Navigator 3.0 designed for one person?
Yes. The Navigator 3.0 is one-person configuration with a maximum combined load of 120 kg.

What are the current one-person dimensions?
WAVE currently lists the one-person version as 380 × 80 × 35 cm.

Does the 120 kg capacity include equipment?
Yes. The maximum load includes the paddler, clothing, drinking water and all equipment carried on the kayak.

Are a paddle and pump included?
Yes. The package includes a double-ended paddle, hand pump, adjustable seat, footrest, two removable fins and backpack.

What pressure should the kayak be inflated to?
Inflate the side chambers to no more than 15 PSI and the floor chamber to no more than 10 PSI.

Is the Navigator suitable for beginners?
WAVE places it in an intermediate or performance-oriented category. Beginners should obtain suitable instruction and start on sheltered water in calm conditions.

Can it be used at sea?
It may be used in suitable sheltered coastal conditions by a competent paddler, subject to weather, tide and local restrictions. It is not intended for exposed offshore use.

Can it be used for white-water paddling?
No. The WAVE manual states that the kayak is not suitable for white-water rafting or extreme sports.

Should the fins always be fitted?
The fins assist tracking in deeper water. Do not use them where they may strike the bottom, and install them before fully inflating the kayak.

How large is it when packed?
The one-person loaded-bag dimensions are 110 × 52 × 31 cm, with a complete packed weight of 22.83 kg.

Specifications

Maximum load includes the paddler and all carried equipment. Follow the supplied WAVE instruction manual, observe the stated inflation pressures and use the kayak only in conditions appropriate to the paddler's training and experience.
