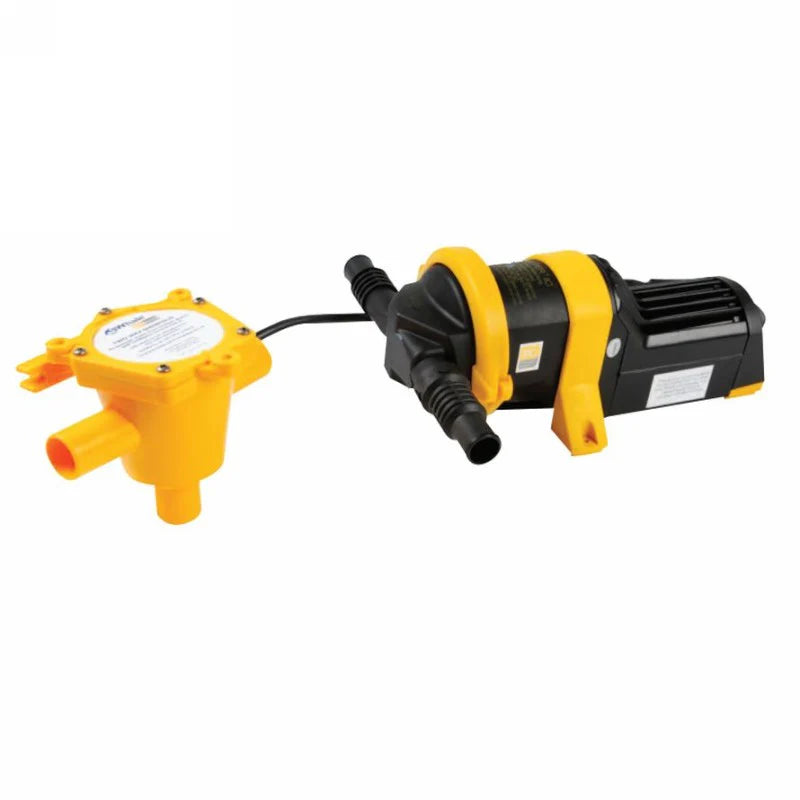

Whale WM8284 / WM8484 Grey IC High Capacity Shower & Waste Water Pump Kit

A complete pre-wired grey waste system that handles waste from multiple drains using the high capacity Gulper IC pump and Two-Way Manifold IC capable of draining 19 litres per minute.

• Model: Gulley IC Single shower drain
• Soft start / stop protects the pump for long life
• Automatically manages waste from multiple drains
• Fit and forget maintenance free
• Voltage: 12 volt d.c / 24 volt d.c
• Voltage Range: 12 volt d.c = 10 V d.c. to 13.6 V d.c / 24 volt d.c.= 21.6 V d.c. to 27.2 V d.c
• Recommended fuse size: 12 volt d.c = 10 amp automotive / 24 volt d.c.= 5 amp automotive
• Current Profile Soft Start / Soft Stop
• Current Draw On Standby Low power 0.01 Amp supply
• Minimum wire size: 1.5mm2 (16 AWG)>
• Cable Length 4m (12ft)>
• Weight: 1.75 kg (3.8 Ib)>
• Maximum Discharge Head: 3m (10ft)>
• Maximum Suction Lift 3m (10ft)>
• Maximum head and lift combined: 4m (12ft)>
• Hose Connections:

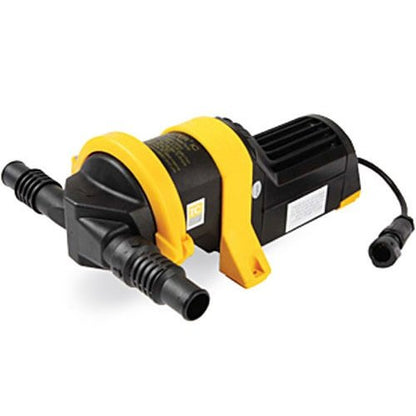

  Gulper IC (19mm) and (25mm)
  Gulley IC (19mm) or (25mm)
  Port Orientation for Strainer IC horizontal (Easily changes to vertical)
• Materials: Pump Head: Glass-filled nylon
• Diaphragms and valves: Santoprene
• Accessories: AK2050 Replacement Pump Head IC.
