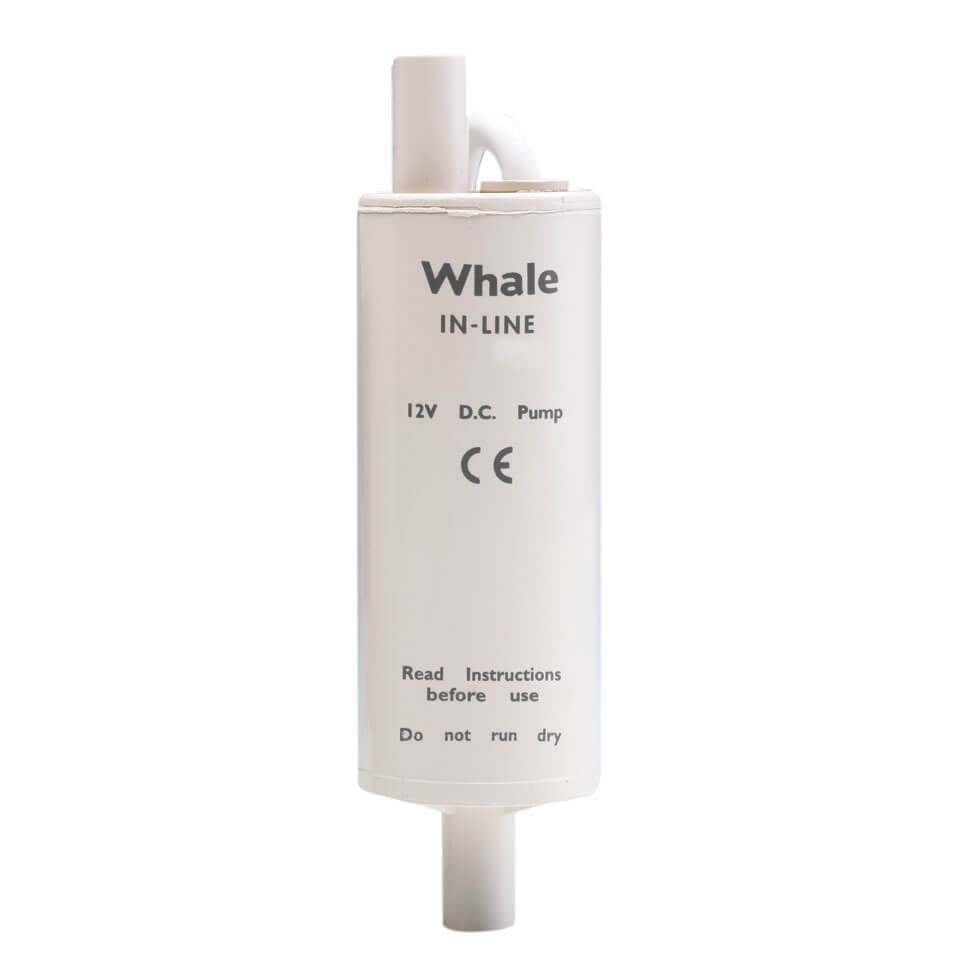

Whale GP1692 In line Booster High Flow Water Pump - 12V

Whale GP1692 In line Booster High Flow Water Pump - 12V                                Ref18:       MA-GP1692

Whale electric galley pump range includes models with the very latest electronic technology. All pumps are manufactured from only highest quality inhouse moulded parts and robust motors.

We have developed our pump designs based on more than 60 years of expertise. Today we have used that experience to develop our most compact, quiet lightweight high performance electric impeller pumps. Fit in line to give your system a boost.

Key Features:

• Whale's high flow rate long life inine impeller pumps:
• Simple, compact and an economical solution
• Long life, very quiet with low power consumption
• An inexpensive way to enhance your water system on board
• Chose the pump to suit your freshwater needs on board from 2 flow options
• Lightweight design
• Ideal for pumping freshwater and saltwater
• Straight forward installation - fits unsupported into pipework

For detailed dimensions, see second picture.

Specifications:

• Model: GP1692
• Voltage: 12v DC
• Fuse Size: 5 Amp Automotive

Hose Connections:

Suitable for 10 mm (3⁄8”) or 13 mm (½”) Flexible Hose

• For ½” hose connection: Fit adaptor by pressing on fi rmly. Note: Once fi tted adaptors cannot be removed.
• For 15mm Quick Connect Plumbing: Use WX1511B (Stem Adaptor 11 mm-15 mm). Connect WX1504 (15 mm Equal Straight) and then 15 mm Plumbing
• For 12mm Quick Connect Plumbing: Use Whale part: WU1211

Flow Rate:

Discharge Head: 0 m (0 ft)

• Flow Rate Per Minute: 15.75 ltrs
• Current Draw: 3.8 amps

Discharge Head: 1m (3 ft)

• Flow Rate Per Minute: 14.75 ltrs
• Current Draw: 3.7 amps

Discharge Head: 3m (9 ft)

• Flow Rate Per Minute: 12.75 ltrs
• Current Draw: 3.5 amps
