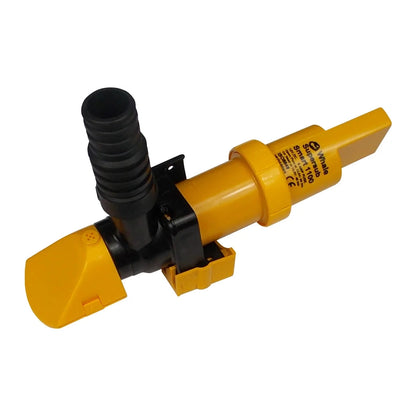

Whale Supersub Smart Series Low Profile Automatic Bilge Pump
Whale Supersub Smart Series Low Profile Automatic Bilge Pump
SKU: MA-SS5212
The Whale Supersub Smart range is an award-winning collection of low-profile automatic bilge pumps designed to fit where conventional pumps simply cannot. Their narrow profile allows installation deep within confined bilge spaces, beneath engines, under cockpit floors and in other awkward locations, providing reliable automatic bilge protection without requiring a separate float switch.
Delivery available | lead times vary
Collection available | usually ready in 2-4 days | Location: Z21
Description
Description
The Whale Supersub Smart range is an award-winning collection of low-profile automatic bilge pumps designed to fit where conventional pumps simply cannot. Their narrow profile allows installation deep within confined bilge spaces, beneath engines, under cockpit floors and in other awkward locations, providing reliable automatic bilge protection without requiring a separate float switch.
Using Whale's patented Intelligent Control electric field sensor technology, Supersub Smart pumps automatically detect rising water levels and switch on only when required. The solid-state sensing system has no moving parts, is unaffected by wave motion, and operates reliably in both fresh and salt water.
Designed for easy installation, the rotating outlet and pump body allow flexible hose routing, while the snap-fit strainer can be removed in seconds for cleaning. An integrated bleed ball helps prevent airlocks, and the low-profile strainer leaves as little as 9mm of water remaining in the bilge (installation dependent).
- Automatic operation with patented electric field sensor technology
- No separate float switch required
- Narrow, low-profile design fits confined bilge spaces
- Ideal beneath engines and cockpit floors
- Rotating outlet and pump body for easier installation
- Integrated bleed ball helps prevent airlocks
- Efficient low power consumption
- Solid-state switching with no moving parts
- Unaffected by normal wave motion
- Suitable for fresh or salt water
- Easy-clean snap-fit strainer design
- Leaves the bilge virtually dry
- CE Certified and compliant with ISO 8849, ISO 15083, ABYC and USCG standards
- 1 Year Whale warranty
| Part No. | Voltage | Pump Type | Open Flow | Flow @ 1m Head | Max Head | Hose Connection | Current Draw | Fuse Size | Dimensions (L × W × H) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| SS5212 | 12V DC | Automatic | 650 GPH (2460 LPH) | 550 GPH (2081 LPH) | 3m | 19mm (¾") / 25mm (1") Stepped | 3.4A | 5A | 212 × 54 × 75mm | 0.326kg |
| SS1212 | 12V DC | Automatic | 1050 GPH (3974 LPH) | 750 GPH | 3m | 25mm / 28mm (1"–1⅛") Stepped | 5A | 5A | 240 × 54 × 75mm | 0.45kg |
| SS1224 | 24V DC | Automatic | 1050 GPH (3974 LPH) | 750 GPH | 3m | 25mm / 28mm (1"–1⅛") Stepped | 2.2A | 2.5A | 240 × 54 × 75mm | 0.45kg |
Specification
Specification
| Part No. | Voltage | Pump Type | Open Flow | Flow @ 1m Head | Max Head | Hose Connection | Current Draw | Fuse Size | Dimensions (L × W × H) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| SS5212 | 12V DC | Automatic | 650 GPH (2460 LPH) | 550 GPH (2081 LPH) | 3m | 19mm (¾") / 25mm (1") Stepped | 3.4A | 5A | 212 × 54 × 75mm | 0.326kg |
| SS1212 | 12V DC | Automatic | 1050 GPH (3974 LPH) | 750 GPH | 3m | 25mm / 28mm (1"–1⅛") Stepped | 5A | 5A | 240 × 54 × 75mm | 0.45kg |
| SS1224 | 24V DC | Automatic | 1050 GPH (3974 LPH) | 750 GPH | 3m | 25mm / 28mm (1"–1⅛") Stepped | 2.2A | 2.5A | 240 × 54 × 75mm | 0.45kg |
